X3-SLH Microscope Slide Holder
X3-SLH Microscope Slide Holder
$75.60
Description
Product Description
- Ideal for holding microscope slides, test targets, and other rectangular optical components.
- Compatible with slides ≥ 44 mmin length.
- Compatible with Petri dishes: Ø 37.1 mm – Ø 41.4 mm.
- Adapter mounts directly to flexure stages with M3 counterbores and any stage with M6 threaded holes on a 50.8mm center spacing.
The slide holder accommodates microscope slides, test targets, rectangular optical elements ≥ 44 mm long, and Petri dishes with diameters from 37.1 mm to 41.4 mm. It enables mounting Petri dishes and slides on motioncontrol stages for integration into custom microscopy setups such as optical tweezers.
表格
| Item | Specification |
| Model | X3-SLH |
| Product Name | Microscope Slide Holder |
| Dimensions | 101.6 × 68.6 × 18.4 mm |
| Counterbore / Slot | M3 / M6 slot: 29.7 × 13.1 mm |
| Weight | 102.1 g |
| Material | 7075 Aluminum Alloy |
Technical Notes
The slide holder supports microscope slides, test targets, rectangular optical components ≥ 44 mm long, and Petri dishes 37.1–41.4 mm in diameter. It allows Petri dishes and slides to be mounted on motioncontrol stages for integration into custom instruments including optical tweezers.

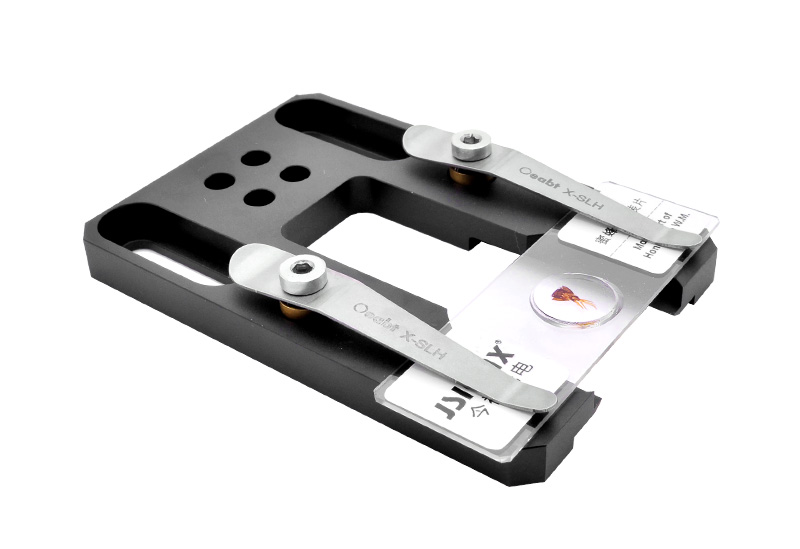

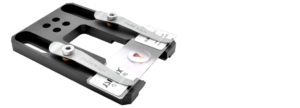

Spring clips are rotatab
le for easy exchange of Petri dishes and glass slides. The holder is supplied with two M4 shoulder screws and a 2.5mm hex key for mounting to various stages.
- Spring clip length: 63.7 mm
- Tip width: 5.1 mm
- 360° rotation for slide access and positioning
- Upwardbent tips prevent scratching slides while providing secure clamping force.
Two sets of mounting holes offer versatile installation:
- One set: four M3 counterbored holes
- One set: M6 slots on 50.8mm spacingThese fit components including the NanoX3 series flexure stages and Oeabt positioning stages.

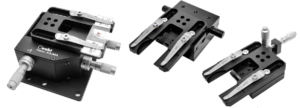

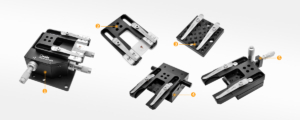

Assembly

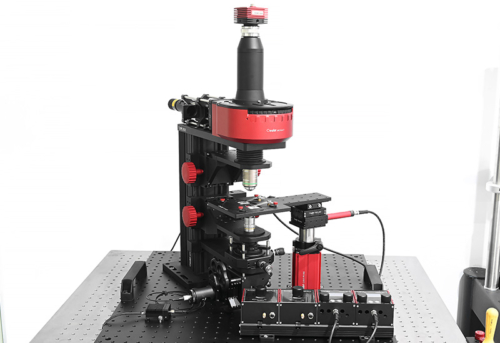

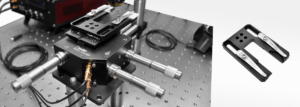

Application Examples
Engineering Drawings
Additional information
| Weight | 0.1021 kg |
|---|---|
| Dimensions | 10.16 × 6.86 × 1.84 cm |
