Description
Product Description
- Modular design for X-axis configuration of the stage
- Suitable for low-frequency use scenarios requiring fine adjustment or full fixation
- Minimized raised components, ideal for integration into other devices or equipment

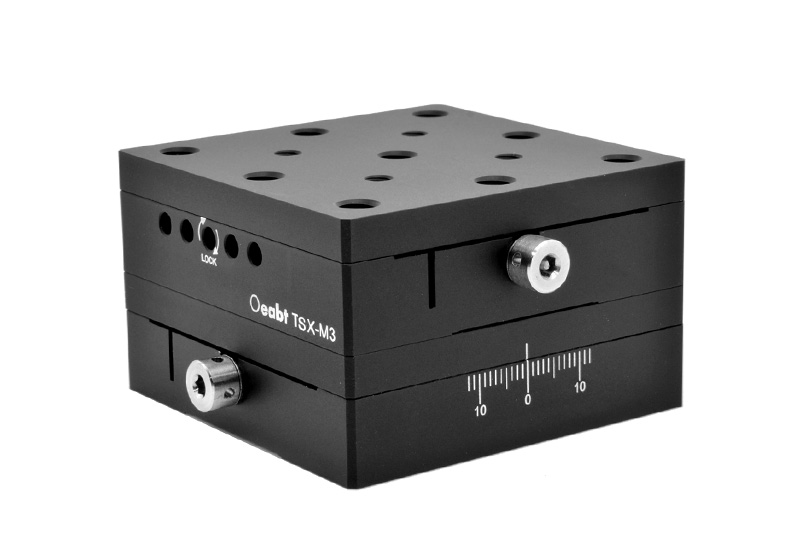

The TSX-M3 stage offers a travel range of 12 mm and enables smooth linear positioning throughout the entire stroke. It adopts a dovetail guide drive mechanism for precise motion control.
| Model | TSX-M3 |
| Dimensions | 65.0×65.0×20.0 mm |
| Tabletop Size | 65×65 mm |
| Travel Range | X-axis, ±12 mm |
| Thread Types | 9×M6, 4×M4 |
| Guide Type | Dovetail guide |
| Load Capacity | 117.7 N (12.0 kgf) |
| Movement Accuracy | 10 μm |
| Maximum Load Moment | Pitch 5.1 N·m; Rotation 5.1 N·m; Yaw 4.0 N·m |
| Torsional Stiffness | Pitch 0.35″/N·cm; Rotation 0.35″/N·cm |
| Parallelism | 50 μm |
| Weight | 182.4 g |
| Material | 7075 Aluminum Alloy |
Technical Notes

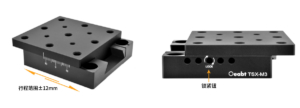

The stage features a 12 mm travel range with smooth linear positioning across the full stroke. A graduated scale on the side facilitates the setting of precise translation travel. Driven by a dovetail guide mechanism, it achieves precision motion via the included 3 mm hex key for actuation. Once the stage is positioned as required, the side locking knob can be secured with a 1.5 mm hex key.

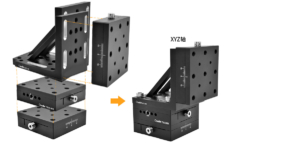

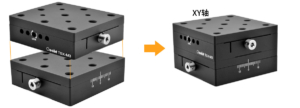

The modular design allows assembly of multiple stages into 2-axis or 3-axis configurations. The stage is equipped with four countersunk holes, enabling stacking assembly of multiple stages with excellent orthogonality and minimal deviation. These countersunk holes also allow direct mounting of the stage onto optical breadboards.

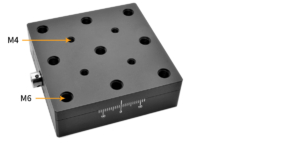

The 65×65 mm tabletop is machined with 9×M6 and 4×M4 threaded holes, all with a depth of 6.4 mm.

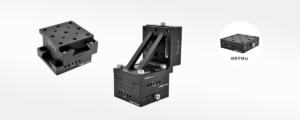

Assembly

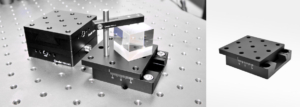

Application Examples

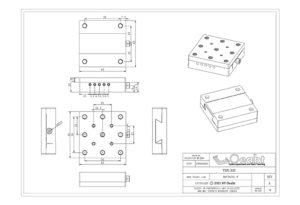

Engineering Drawings
