Product Description
- Modular design for easy assembly into XY and XYZ configurations; TSX-L1 with micrometer drive features a 13 mm travel and 10 μm division.
- TSX-L2 with differential adjuster has an 8 mm travel, with 0.35 mm movement per revolution for coarse adjustment and 2 μm division for fine adjustment.
- Optional assembly with either micrometer or differential adjuster.

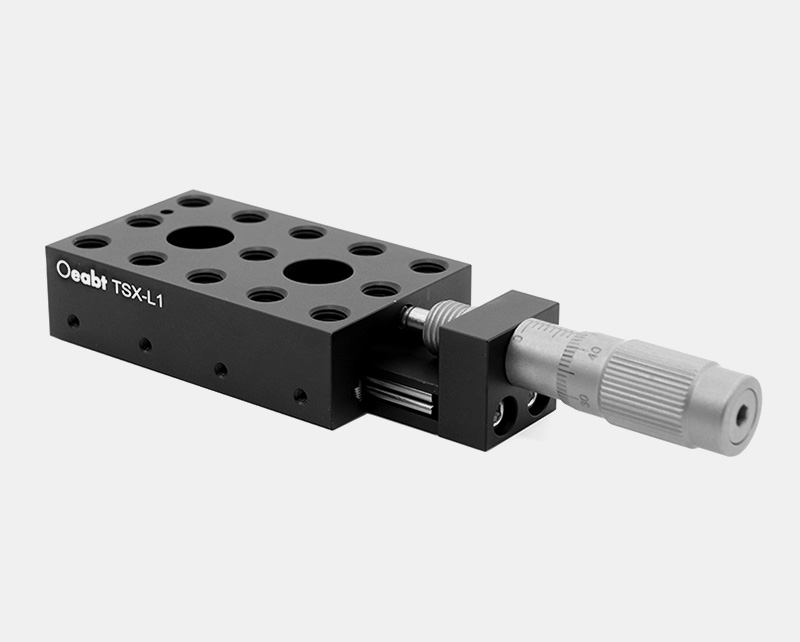

The TSX-L series single-axis translation stages adopt hardened steel linear bearings for precise motion and extended service life. Each stage is preconfigured with a micrometer or differential adjuster as the drive. The stage top plate is equipped with 15 M6 threaded holes, and the base has 2 Ø6.0 mm countersunk holes, allowing users to mount the stage on optical breadboards or platforms using M6 cap head screws.
| Model | TSX-L1 | TSX-L2 |
| Dimensions | 90.8×36.1×18.1 mm (excl. adjuster) | 90.8×36.1×18.1 mm (excl. adjuster) |
| Travel Range | 13 mm | 8 mm |
| Drive Method | Vernier micrometer | Differential adjuster |
| Division Accuracy | 10 μm | 0.35 mm/rev (coarse), 2 μm (fine) |
| Thread Types | 15×M6 threaded holes, 2×Ø6.0 mm countersunk holes | 15×M6 threaded holes, 2×Ø6.0 mm countersunk holes |
| Weight | 127.2 g | 127.2 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Notes
The TSX-L series single-axis translation stages are fitted with hardened steel linear bearings to ensure precise motion and prolonged service life. Each stage comes with a preinstalled micrometer or differential adjuster as the drive. With 15 M6 threaded holes on the top plate and 2 Ø6.0 mm countersunk holes at the base, the stage can be mounted on optical breadboards or platforms via M6 cap head screws.
The total travel of the single-axis stage top plate is 25 mm. The TSX-L1 is configured with an SM13 micrometer drive, which offers a 13 mm travel and 10 μm division. For applications requiring higher resolution, the TSX-L2 stage with a differential adjuster is available. The coarse adjustment can be locked via the thumb screw on the adjuster, with an adjustable travel of 8 mm, 0.35 mm movement per revolution for coarse adjustment, and 2 μm division accuracy for differential fine adjustment.

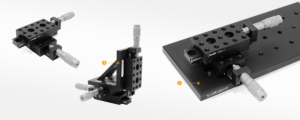

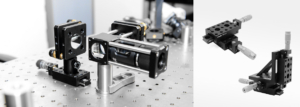

In addition to standalone single-axis use, the modular design allows two stages to be orthogonally stacked to form an XY translation stage. For an XYZ configuration, right-angle adapters are required for assembly.
