TSX-5 5-Axis Positioning Stage
$258.00
Description
Product Description
- Compact structure with a stage top size of 56.8×42.9 mm
- Stage height: 27.3 mm
- 5-axis adjustment: pitch ±3.5°, yaw ±5°, linear translation 3 mm
- Multiple mounting holes on the top platform
The TSX-5 positioning stage is equipped with 5 drives with a 0.25 mm pitch, enabling 5-axis adjustment: pitch ±3.5°, yaw ±5°, and 3 mm linear translation along the X, Y and Z axes. Among them, two drives jointly control yaw and the Y-axis, two drives control pitch and the Z-axis, and one drive regulates the X-axis position. Adjustment is performed using the included 2 mm thumb wrench.
| Model | TSX-5 |
| Dimensions | 59.9×58.9×27.3 mm |
| Adjustment Range | Pitch ±3.5°, Yaw ±5°, 3 mm linear translation (X/Y/Z axes) |
| Thread Types | 18×M4 threaded holes, 4×M3 threaded holes, 1×M4 countersunk hole, 2×U-slotted holes |
| Weight | 203.4 g |
| Material | 7075 Aluminum Alloy |
| Axis/Adjustment | Adjustment Per Revolution |
| X | 300 µm/rev |
| Y | 300 µm/rev |
| Z | 300 µm/rev |
| Pitch ±3.5° | 12.3 mrad/rev (milliradians per revolution) |
| Yaw ±5° | 17.6 mrad/rev (milliradians per revolution) |
Technical Notes
The TSX-5 positioning stage features 5 drives with a 0.25 mm pitch, which can adjust the pitch, yaw and X/Y/Z axis positions of the top platform. It supports 5-axis adjustment: pitch ±3.5°, yaw ±5°, and 3 mm linear translation along the X, Y and Z axes. Two drives work together to control yaw and the Y-axis, two drives for pitch and the Z-axis, and a single drive for the X-axis position. Adjustment is done with the supplied 2 mm thumb wrench.
The top platform is provided with 18×M4 threaded holes, 1×M4 countersunk hole and 4×M3 threaded holes, which make the stage suitable for a wide range of applications. For example, it can be used to mount Q-switches, optical component mounts and other optomechanical components on the platform and pressure arms.

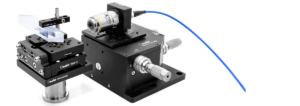

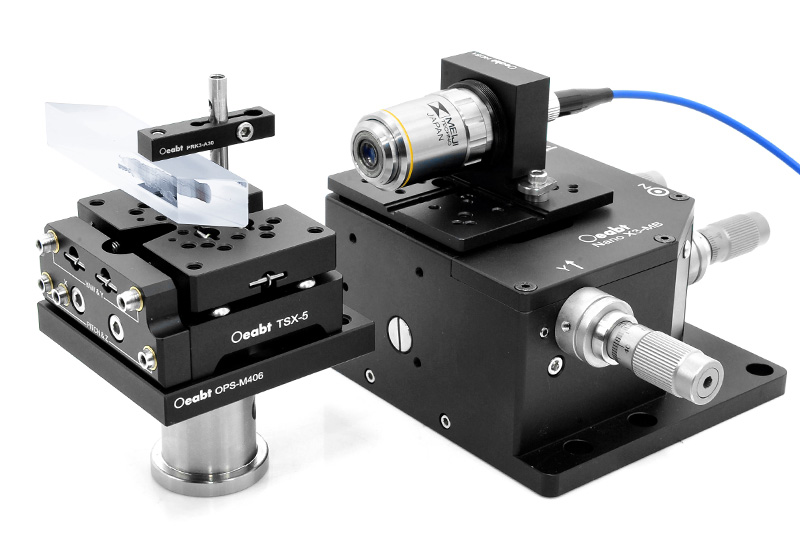

It is used in conjunction with 3-axis flexure positioning stages for fiber coupling applications.

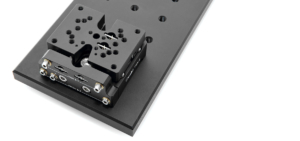

Two M6 countersunk slotted holes on the base allow the stage to be mounted on optical breadboards or platforms
Assembly

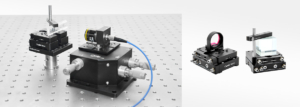

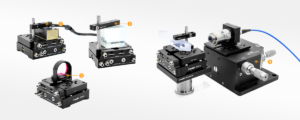

Application Examples
Engineering Drawings
Additional information
| Weight | 0.2034 kg |
|---|---|
| Dimensions | 5.59 × 5.89 × 2.73 cm |
