TFA Series Aluminum Film Reflector

Description

Product Description

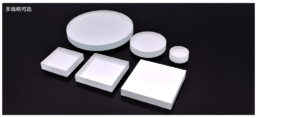

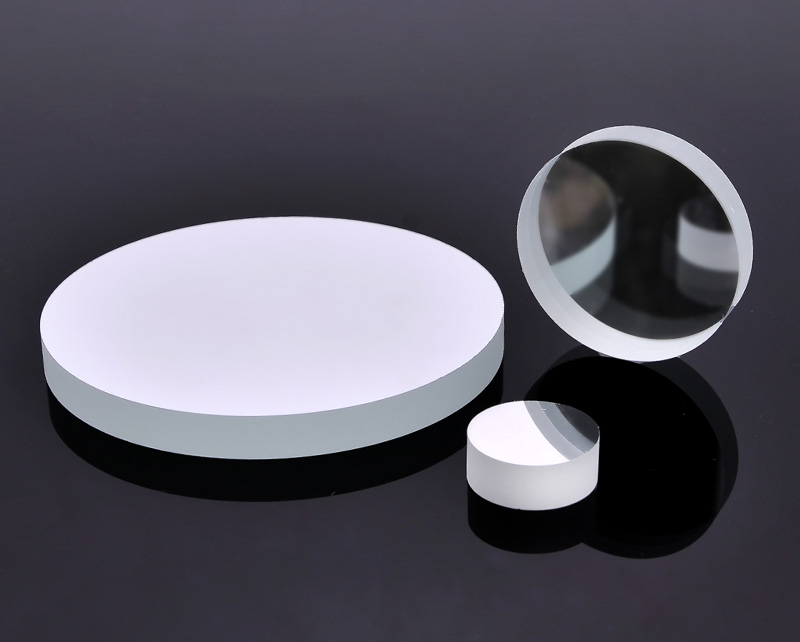

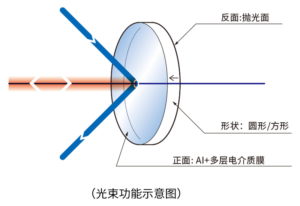

• A reflector with a protective film plated on a high-precision polished flat substrate, which has high reflectivity at all incident angles;

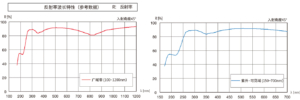

• Reflectivity is expressed as the average of the reflectivities of P-polarized light and S-polarized light. Reflectivity changes with the polarization state of the incident beam;
• Circular reflector models are named with the letter “C”; square reflector models are named with the letter “S”;

A reflector is an optical element that works according to the law of reflection. According to their shapes, reflectors can be divided into three types: plane reflectors, spherical reflectors and aspherical reflectors; according to their reflective materials, they can be divided into metal film reflectors and dielectric film reflectors.

Technical Description

– Reflector Series

A reflector is an optical element that works according to the law of reflection. According to their shapes, reflectors can be divided into three types: plane reflectors, spherical reflectors and aspherical reflectors; according to their reflective materials, they can be divided into metal film reflectors and dielectric film reflectors.

Metal reflectors are made by vacuum evaporating metal on a highly polished substrate, followed by coating with silicon monoxide or magnesium fluoride. In special applications, since metal can cause losses and may oxidize in special environments, it can be replaced by a multi-layer dielectric film, which is a dielectric film reflector. Using a reflector with high reflectivity can double the output power of the laser. In addition, since the reflector is a front-surface reflection, the reflected image is not distorted and no double image appears, so it is widely used in optical high-fidelity scanning reflection imaging and machine vision imaging.

– Why Metal Reflective Films Are Often Equipped with Protective Films

Metal film reflectors are a type of reflector commonly used in scientific research experiments. The metal film of such reflectors is relatively “delicate”. Without a protective film, special care is required when taking and cleaning them. Do not touch the exposed metal film layer with your hands, otherwise the surface film layer will be scratched or oxidized. Therefore, our usual practice is to add a layer of silicon monoxide as a protective film layer on its surface. This not only improves the durability of the film layer, but also prevents oxidation of the film layer. Under normal circumstances, we can wipe it with a cotton swab dipped in a mixture of absolute ethanol and ether.

– Relationship Between Reflector Coating and Temperature and Humidity

Under normal circumstances, dielectric hard films and enhanced and protected metal films are not very sensitive to temperature, and the reflectivity changes little with temperature. Some even have no significant difference when used at -30℃~100℃. However, for dielectric film reflectors, due to the large number of film layers, if the surface film material is not well protected or the finish is not good (the wider the bandwidth, the worse the coating finish will inevitably be), the reflector will absorb moisture and water when exposed to the environment and change, and the reflectivity will inevitably be affected. This impact is much greater than that of temperature, so during use, the change in reflectivity caused by environmental humidity is largely greater than that caused by temperature. Metal films with good protection can relatively withstand some environmental changes, and a good protective layer can ensure that the internal metal layer does not undergo chemical changes.

– Laser Damage Threshold

With the widespread application of high-energy lasers in scientific research, the laser damage threshold of coated components has become a particularly concerned indicator for researchers. The laser damage threshold is an important parameter characterizing the ability of the medium irradiated by laser to resist laser damage. It is a critical value, that is, use exceeding this value will most likely cause local deformation or even complete damage inside or on the surface of the medium.

– Basic Principle of Optical Coating

Optical thin film technology is generally used to control the reflectance and transmittance of the substrate to the incident beam. Coating is a method of plating a layer of transparent dielectric film or a layer of metal film on the surface of the material by physical or chemical means. The purpose is to change the reflection and transmission characteristics of the material surface to meet different needs. To eliminate the reflection loss on the surface of optical components and improve imaging quality, coating one or more layers of transparent dielectric films is called anti-reflection film or anti-reflective coating. With the development of laser technology, different requirements for the reflectance and transmittance of the film layer have promoted the development of multi-layer high-reflection films and broadband anti-reflection films. For various application needs, polarizing reflective films, color beam splitting films, cold light films and interference filters are manufactured by using high-reflection films.

After the surface of the optical component is coated, light undergoes multiple reflections and transmissions between the film layers to form multi-beam interference. By controlling the refractive index and thickness of the film layer, different intensity distributions can be obtained, which is the basic principle of interference coating.

(1) Aluminum-coated reflectors with a protective layer are an ideal choice for many broadband applications. A layer of silicon dioxide film is plated on the vulnerable aluminum film to make it suitable for laboratory and industrial use. In high-humidity environments, aluminum films with a protective layer are less likely to discolor than silver films with a protective layer, and the reflectivity provided is very close to that of unprotected aluminum films.

Assembly

Application Examples

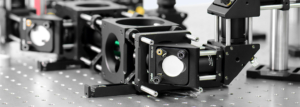

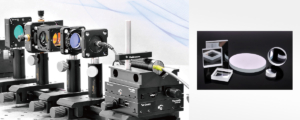

Metal film reflectors are a type of reflector commonly used in our scientific research experiments. Aluminum-coated reflectors with a protective layer are an ideal choice for many broadband applications.
