Description
Product Description
- Allows ±5° tilt adjustmentfor two axes.
- Designed for laser devices or optical sensors to adjust the optical axis offset.
- The two-axis offset adjustment is equipped with a locking function.
- Load capacity: 5kgf.
The TAP-TILT tilt stage features tilt adjustment functionality; the two-axis ±5° tilt deflection can be adjusted via hand knobs. It is applicable to various lasers, optical sensors and other devices requiring beam collimation, enabling the adjustment of light spot position and optical axis direction through micro tilt regulation.
| Model | TAP-TILT |
| Dimensions | 98.0×67.8×40.0 mm |
| Tilt Angle | ±5° |
| Load Capacity | 5kgf |
| Screw Hole Type | Front panel: 4×M3 (countersunk holes), 7×M4, 4×M4 (countersunk holes)Rear panel: 4×M3, 4×M4 (countersunk holes), 7×M6 |
| Weight | 436.5g |
| Material | 7075 Aluminum Alloy |
Technical Notes
The TAP-TILT tilt stage is designed with tilt adjustment function, and the hand knobs enable precise ±5° tilt deflection adjustment for two axes. For all types of lasers, optical sensors and other components that need beam collimation setup, it can change the position of the light spot and the direction of the optical axis through micro tilt adjustment. This contributes to more accurate observation and control, optimizing the results of optical experiments, measurements and inspections.

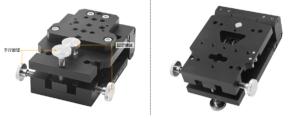

The two-axis offset adjustment and locking structure is highly user-friendly. The locking mechanism can fix the stage at the desired position, prevent accidental movement, and maintain the stability of the adjusted position.

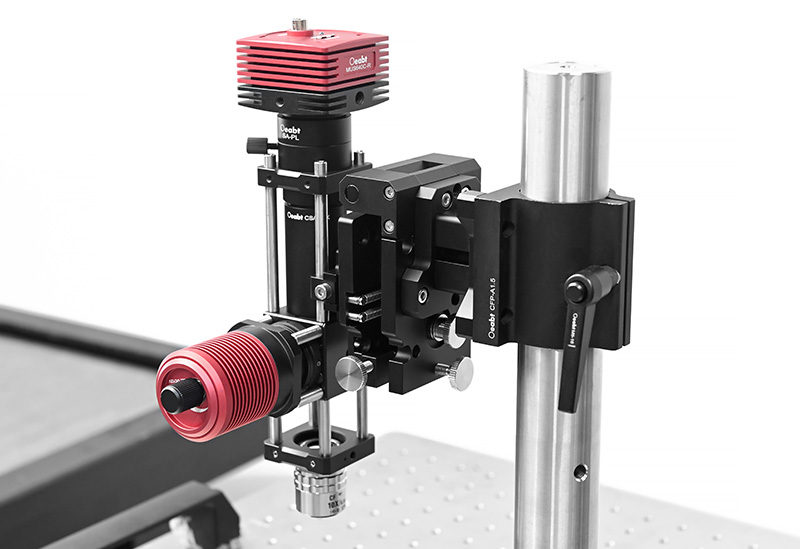

It can be mounted on a post with a post clamp to form a lifting vertical device, which is suitable for application demonstration of laser collimation.

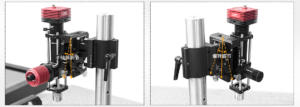

Assembly

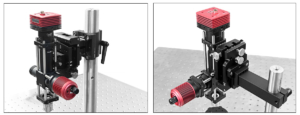

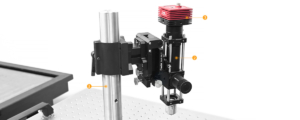

Application Examples
Engineering Drawings
