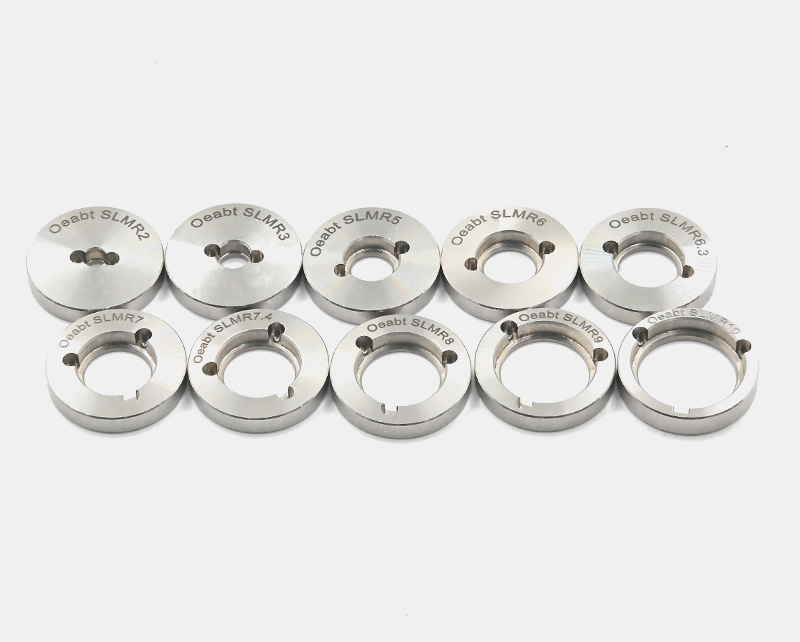

SLMR Series Small Optical Component Adapters
SLMR Series Small Optical Component Adapters
$17.80
Description
Product Description
For mounting optical components with diameters of Ø2-10mm.
Enables installation of non-standard size optical components onto threaded Ø1/2-inch mounts.
Ø1/2-inch adapter is compatible with SM05 lens sleeves.
Gluing notches for securing optical components inside the housing.
This stainless steel adapter is specifically designed for optical components with diameters between 2-10mm, effectively solving the installation problem of non-standard size optical components.
Model | Mountable Optical Components (ØD) | Clear Aperture (ØD) | Thickness | Weight | Compatible Components | Material |
| SLMR2 | 2-2.05mm | 1.8mm | 2.16mm | 2.0g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR3 | 3-3.05mm | 2.7mm | 2.16mm | 1.9g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR5 | 5-5.05mm | 3.8mm | 2.16mm | 1.8g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR6 | 6-6.06mm | 4.8mm | 2.16mm | 1.5g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR6.3 | 6.35-6.4mm | 5.4mm | 2.16mm | 1.5g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR7 | 7-7.03mm | 6mm | 2.16mm | 1.4g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR7.4 | 7.4-7.41mm | 6.4mm | 2.16mm | 1.4g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR8 | 8-8.02mm | 7mm | 2.16mm | 1.3g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR9 | 9-9.01mm | 7.9mm | 2.16mm | 1.0g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
| SLMR10 | 10-10.03mm | 8.8mm | 2.5mm | 1.0g | Ø1/2-inch threaded mounts, SM05 threaded sleeves | 304 stainless steel |
Additional information
| Weight | N/A |
|---|---|
| Model | SLMR2, SLMR3, SLMR5, SLMR6, SLMR6.3, SLMR7, SLMR7.4, SLMR8, SLMR9, SLMR10 |
