Description

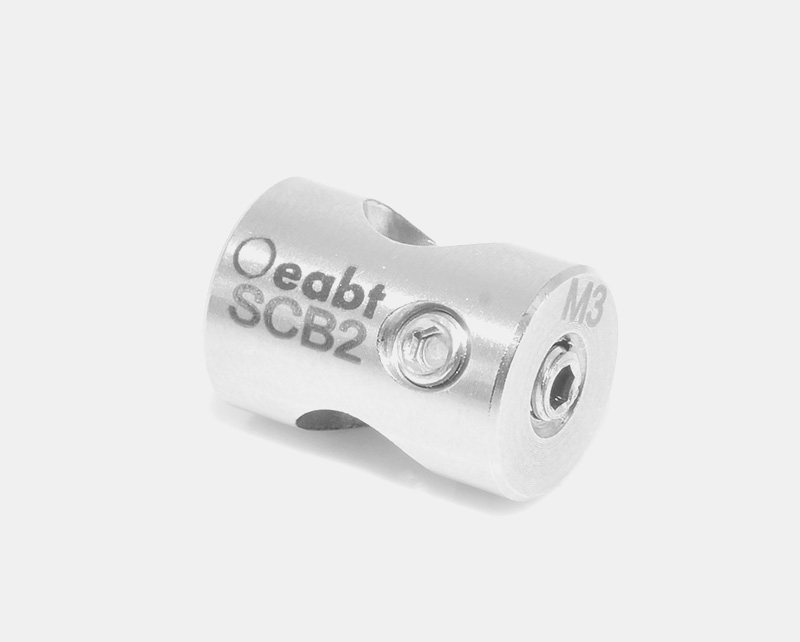

Product Description
- 4-40 thread on one end, M3 thread on the other
- Accepts Ø6 mm PCMS series rods internally
- Connects Ø6 mm cage rods at 90°
- Vertically links multiple 30 mm and 60 mm cage structures
- Precision-machined stainless steel, high flexibility, excellent alignment compatibility
The cage rod cross coupler connects multiple 30 mm and 60 mm cage structures vertically at 90°. Its flexible design simplifies alignment and facilitates setup and integration of cage systems.
| Specification | SCB2 |
| Dimensions | Ø8.9×12.7 mm |
| Through Hole | Ø6 mm |
| Thread Type | 4-40, M3 |
| Weight | 4.1 g |
| Material | 304 Stainless Steel |
Technical Description

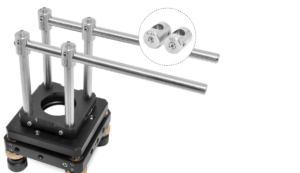

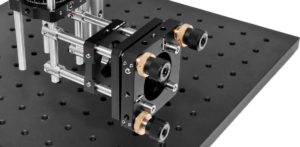

(1) The cage rod cross coupler connects multiple 30 mm and 60 mm cage structures vertically at 90°. It offers high flexibility, streamlines alignment, and simplifies the assembly and integration of cage systems.、
(2) It has an internal Ø6 mm locating hole. One end has a 4-40 threaded hole and the other an M3 threaded hole. PCMS series cage rods can be inserted into the hole and secured with a 1.5 mm hex wrench, or screwed directly into the threaded holes.

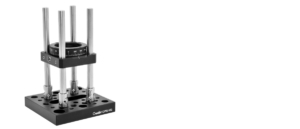

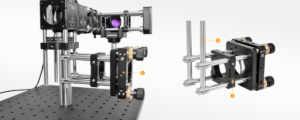

(3) The M3 thread end can attach directly to the OPSM2 universal base plate to vertically mount a 30 mm cage assembly. Multi-threaded hole arrays allow component mounting in all directions, increasing the flexibility of optical setups.
