Product Description

  • Dimensions: 3302276mm;
  • Suitable for mounting instruments on the surface of optical platforms or breadboards;
  • Can install rods and guide rails to save space on optical platforms;
  • Arranged with multiple threaded holes and countersunk holes;

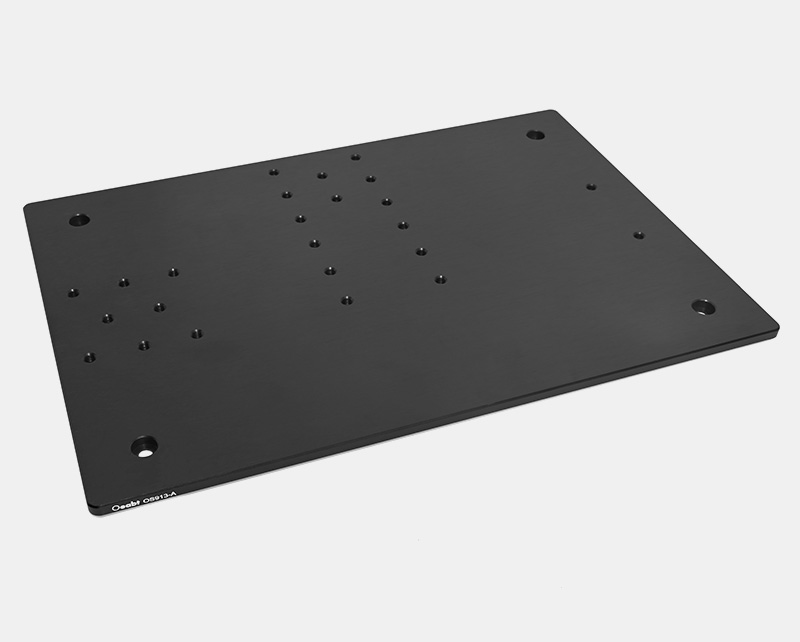

The instrument shelf is suitable for mounting instruments on optical platforms or breadboards, with a tabletop size of 330*227mm. It provides a flexible mounting method to save space on the optical platform.

ModelOS913-A
Specification330*227*6mm
Load Capacity30kg
Thread Type24 M6 threaded holes, 4 Ø6.2mm countersunk holes
Weight1209g
Material7075 Aluminum Alloy

Technical Description

(1) The instrument shelf is suitable for mounting instruments on the surface of optical platforms or breadboards, with a tabletop size of 330*227mm. It provides a flexible mounting and erection method to save space on the optical platform.

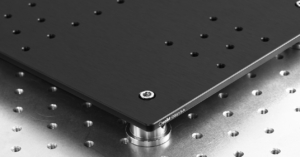

(2) The maximum load capacity of the shelf is 30 kg. If placing heavy or uneven objects on the shelf, it is recommended to use support rods at all four corners. For this purpose, the shelf is equipped with countersunk holes at the four corners, and M6 stud screws can be used to install the shelf on the rods to support it.

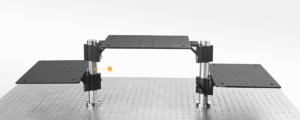

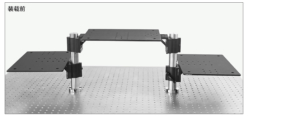

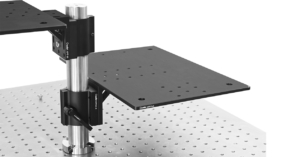

Installation of OS913-A using Ø1.5-inch rods

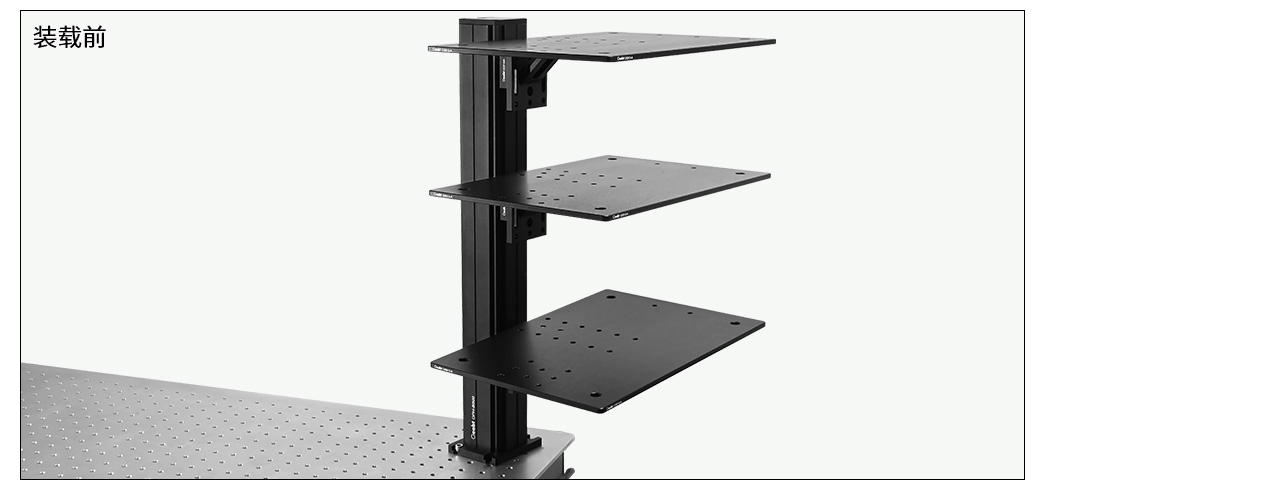

Installation of OS913-A using 66mm heavy-duty guide rails

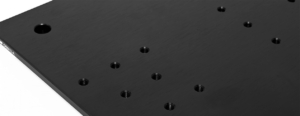

(3) The surface of the shelf is treated with black oxide, which greatly reduces surface reflection. It is equipped with an array of M6 threaded holes with a standard 25 mm spacing, and the threaded holes penetrate the breadboard, facilitating component installation from either side.

Assembly

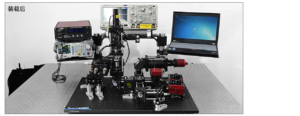

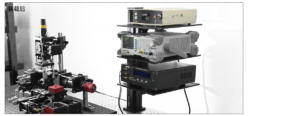

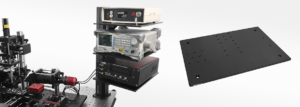

Application Examples

Engineering Drawings



OS913-A Engineering Drawing
