Description
Product Description
- The universal base plate provides mounting holes for optical platforms or breadboards in any horizontal/vertical direction;
- The workbench surface is equipped with a multi-threaded mounting hole array including M3/M4/M6 threads and grooves, allowing component installation in various orientations;
- Enhances the flexibility of optical-mechanical devices, enabling installation of various components or platforms;
- Countersunk slotted holes on the plate allow rotation and translation;

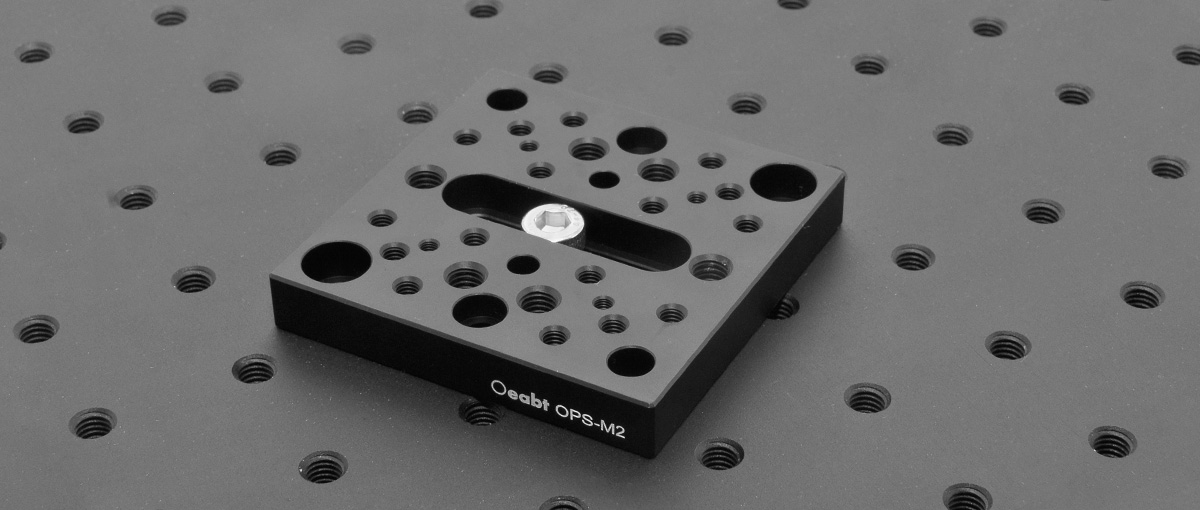

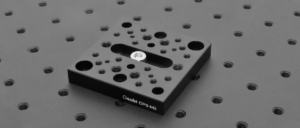

The universal base plate features mounting holes compatible with the threaded hole arrangements of almost all optical platforms and breadboards, enabling flexible assembly of optical equipment. It provides mounting holes perpendicular to optical platforms or breadboards in any direction, increasing the flexibility of optical setups.
| Universal Base Plate | Universal Base Plate |
| Model | OPS-M2 |
| Specification | 65.0*65.0*10.1mm |
| Thread Type | Countersunk holes: 2 positions of M4; 2 positions of M6Threaded holes: 6 positions of M6; 16 positions of M4; 4 positions of M3Countersunk slotted holes: 6.7*38.5mm |
| Weight | 84.1g |
| Material | 7075 Aluminum Alloy |
Technical Description
(1) The universal base plate is equipped with mounting holes compatible with the threaded hole arrangements of nearly all optical platforms and breadboards, facilitating flexible assembly of optical equipment. It offers mounting holes perpendicular to optical platforms or breadboards in any direction, enhancing the flexibility of optical setups.
(2) The working panel of the base plate features an array of multi-type threaded mounting holes. This degree of freedom allows users to install various components or platforms in a wide range of orientations. The long countersunk slotted hole on the base plate is located at the center, enabling the base plate to rotate 360° and perform rough translation on the optical platform.
Countersunk holes: M4 (2 positions); M6 (2 positions)Threaded holes: M6 mounting holes (6 positions); M4 mounting holes (16 positions); M3 mounting holes (4 positions)Countersunk grooves: 41.8*10.3mm

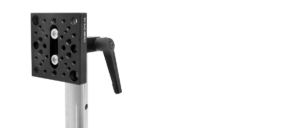

Assembly

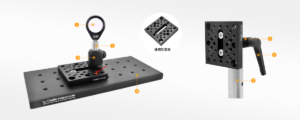

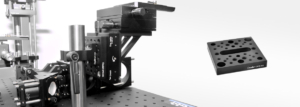

Application Examples
