Description
Product Description
- Compatible with and replaceable for the fixed top plate of Nano series flexible translation stages;
- Tabletop with grooves to ensure alignment of multi-axis translation stage accessories;
- Adapts components such as translation stages or connecting rods to expand into a fiber coupling mounting tabletop;
- Commonly used for constructing fiber coupling systems;
- Multiple threaded hole arrays;
The adapter plate is equipped with two cross-shaped notches with a width of 3mm, which are used for quickly configuring installed optical components and accessories while maintaining the alignment of the system and accessories. The mounting tabletop can directly install HC series fiber clamps and fiber holders, integrated for fiber coupling applications.
| Model | OPS-3XAM | OPS-3XAM-B |
| Specification | 63.5*63.5*9.2mm | 61.0*61.0*10.8mm |

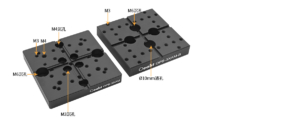

| Threaded Hole Type | 20 positions of M3, 4 positions of M3 (countersunk holes), 9 positions of M4, 2 positions of M4 (countersunk holes), 2 positions of M6 (countersunk holes) | 28 positions of M3, 2 positions of M6, 2 positions of Ø10mm (through holes) |
| Weight | 82.9g | 94.4g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
(1) This adapter plate is provided with two cross-shaped notches of 3mm in width, which are used to quickly configure installed optical components and accessories while maintaining the alignment of the system and accessories. The mounting tabletop can directly mount HC series fiber clamps and fiber holders, integrated for fiber coupling applications.
(2) The “cross groove” design is directly compatible with and replaceable for the fixed top plate of Nano series flexible translation stages. In addition, it can adapt to different translation stages or be mounted on connecting rods to expand and convert into a fiber coupling translation tabletop.
(3) This plate surface also includes multiple threaded hole arrays for fixing and installing various components.

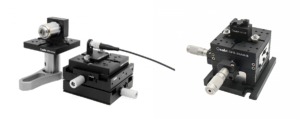

Assembly

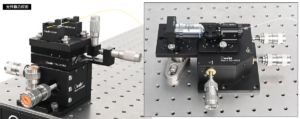

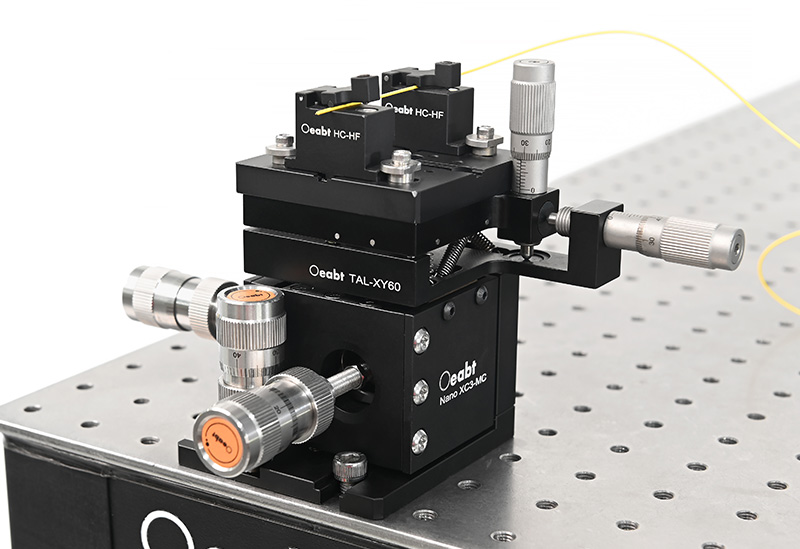

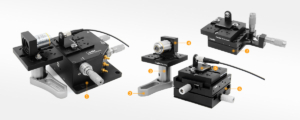

Application Examples
