Description
Product Description
- Outer wings form identical dovetail mounting surfaces on all four sides
- Four M6 threaded holes on both sides for installation
- Rail lengths available from 200mm to 500mm
- Ø55mm clear aperture runs through the rail
The OPH95 series is extruded from aluminum in various lengths and features linear mounting surfaces on each side of the rail. Its precision-machined structure enables large-scale optical components to move along the rail while maintaining excellent mechanical stability. Pre-assembled kits are available for purchase.

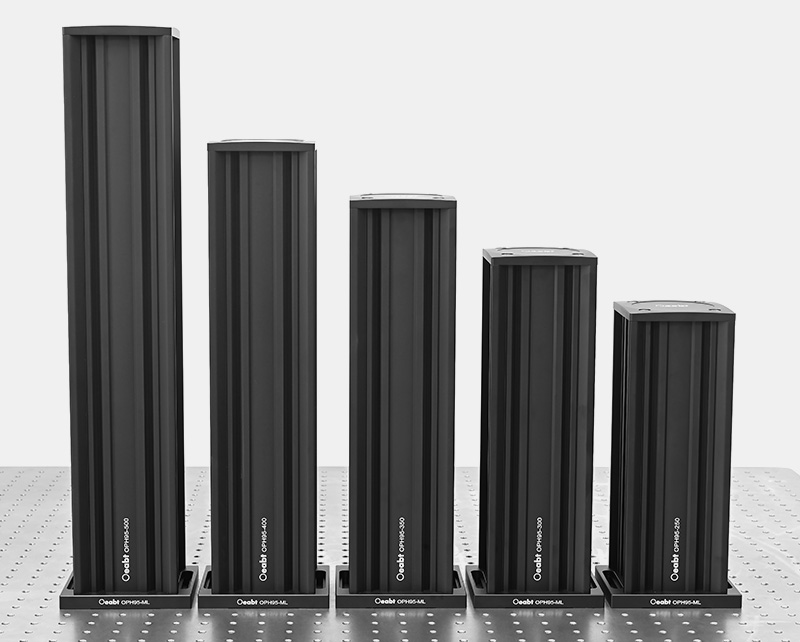

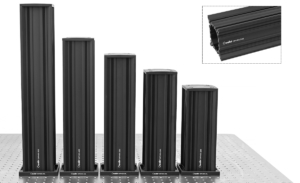

95mm Heavy-Duty Rails
| Model | Specification | Weight | Central Clear Aperture | Threaded Hole Type | Material |
| OPH95-250 | 9595250mm | 1612.9g | Ø55mm | 4 x M6 at each end | 6063 Aluminum Alloy |
| OPH95-300 | 9595300mm | 1938.7g | Ø55mm | 4 x M6 at each end | 6063 Aluminum Alloy |
| OPH95-350 | 9595350mm | 2268.3g | Ø55mm | 4 x M6 at each end | 6063 Aluminum Alloy |
| OPH95-400 | 9595400mm | 2588.2g | Ø55mm | 4 x M6 at each end | 6063 Aluminum Alloy |
| OPH95-500 | 9595500mm | 3240.0g | Ø55mm | 4 x M6 at each end | 6063 Aluminum Alloy |
| OPH95-600 | 9595600mm | 3900.0g | Ø55mm | 4 x M6 at each end | 6063 Aluminum Alloy |
Rail Length Tolerance
| Rail Length | Tolerance Value |
| 200-250mm | ≤0.1mm |
| 300-400mm | ≤0.2mm |
| 500-600mm | ≤0.35mm |
| 750-1000mm | ≤0.5mm |
Technical Description
(1) With a mounting surface width of 95mm, the rails in this series provide enhanced support for constructing large-scale structures, three-dimensional load-bearing structures and expandable assemblies. Extruded from aluminum in different lengths, each side of the rail is finished with a linear mounting surface. The precision-machined structure allows large optical components to slide along the rail while retaining superior mechanical stability. Pre-assembled kits are offered for sale.
(2) Rails are available in lengths ranging from 200mm to 500mm, with four effective dovetail grooves formed on each end face. They are compatible with the OOP95-M series rail carriage platforms, whose mounting surfaces are equipped with an array of M6 threaded holes, ensuring excellent compatibility for the installation of rails and opto-mechanical components.
(3) Snap-in rail carriages can be snapped on or removed at any position along the side of the rail and slide freely along it. A variety of mounting surface widths from 25mm to 100mm are available, with positions secured by tightening the side-mounted M6 locking screws. In contrast, drop-in carriages can only be inserted and removed from the rail ends, and their positions are fixed by four M6 locking screws on the panel.

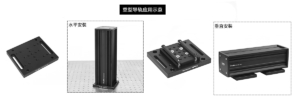

(4) The OPS95-ML base plate enables vertical mounting of 95mm rails onto optical tables or base rails. Countersunk slots facilitate precise installation positioning and the plate is compatible with both imperial and metric mounting standards. When paired with OOP95-M carriages, it allows horizontal mounting of rails onto optical tables or breadboards.
(5) End caps are used on the ends of 95mm rails for a neat, integrated surface finish. The end caps are installed by aligning them with the threaded holes at the rail corners and fastening with four M6 socket head cap screws.
Assembly

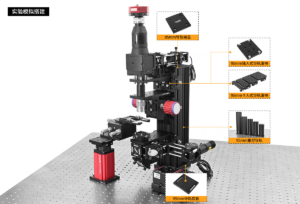

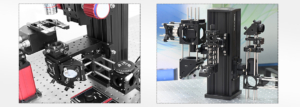

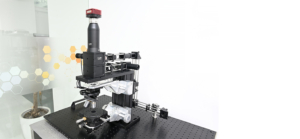

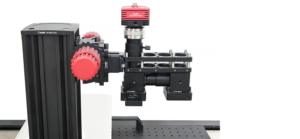

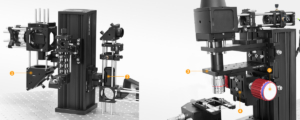

Application Examples
