Description
Product Description

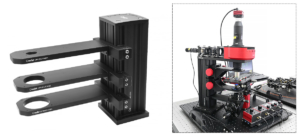

- Can be used as the lifting stage for the microscope main body to achieve lifting and focusing
- Dovetail slider design on the back, compatible with OPH95 series heavy-duty guide rail brackets
- Knob-adjustable lifting with a stroke range of 23mm
- Align the lifting stage mounting arm with the optical path at 196.5mm from the edge of the main body guide rail
- Dowel pin design enables quick switching of the mounting method of the right-angle adapter block (purchased separately)

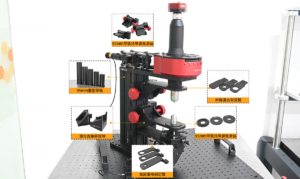

A variety of mounting arm brackets are available to integrate and align objective lenses, condensers, macro lenses, lens tubes or cage systems along the optical axis, supporting the self-construction of condensers or other opto-mechanical components.

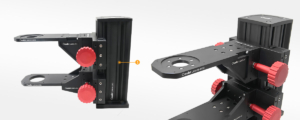

OPH95-LM Series 95mm Guide Rail Lifting and Focusing Stage Kit
表格
| Model | OPH95-LM1 | OPH95-LM2 | OPH95-LM3 |
| Specification | 191.1*131.3*76.2mm | 191.1*131.3*76.2mm | 159.6*64.4*75.6mm |
| Stroke Range | 23mm | 23mm | / |
| Mounting Arm Method | Upper/Lower Mount | Middle Mount | Upper Mount |
| Weight | 1636.9g | 1626.7g | 1626.7g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
95mm Guide Rail Lifting and Fine Focusing Stage Kit
表格
| Model | OPH95-LMP2 |
| Specification | 216.5*120.1*83.4mm |
| Stroke Range | 34mm, 4mm/rev for fine focusing |
| Mounting Arm Method | Middle Mount |
| Weight | 1727.1g |
| Material | 7075 Aluminum Alloy |
LM95-A Series Stage Right-Angle Adapter Block
表格
| Model | LM95-A1 | LM95-A2 |
| Specification | 76.2*76.2*62.2mm | 76.2*76.2*62.2mm |
| Mounting Arm Method | Upper/Lower Mount | Middle Mount |
| Weight | 284.6g | 271.8g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
LMA95 Series Lifting Stage Mounting Arm
表格
| Model | LMA95-SM2A | LMA95-D1.8B | LMA95-D2B | LMA95-SM2 | LMA95-M32 | LMA95-B |
| Specification | 196.2*38.1*9.5mm | 196.2*38.1*9.5mm | 196.2*38.1*9.5mm | 196.2*38.1*9.5mm | 196.2*38.1*9.5mm | 196.2*38.1*9.5mm |
| Mounting Platform | 134*38.1mm | 134*38.1mm | 134*38.1mm | 134*38.1mm | 134*38.1mm | 134*38.1mm |
| Thread Type | SM2 (2.035”-40) | Ø47.91mm, α=60° female dovetail groove | Ø53.2mm, α=60° female dovetail groove | SM2 (2.035”-40) internal thread | M32*0.75 internal thread | None |
| Magnetic Surface | None | None | None | None | Yes | None |
| Cage System Compatibility | 4×Ø6.02mm, 60mm | 4×4-40, 60mm | 4×4-40, 60mm | 4×4-40, 60mm | 4×4-40, 60mm | None |
| Weight | 292.9g | 297.7g | 287.8g | 293.6g | 310.0g | 350.1g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |

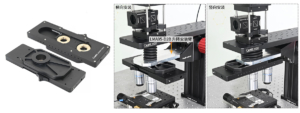

LMA95-DOM Series Dual Objective Lens Mount [Sliding Type]
表格
| Model | LMA95-DOM1 | LMA95-DOMX |
| Specification | 223.3*95.3*17.8mm | 221.0*92.0*30.7mm |
| Objective Lens Thread | M32*0.75 (comes with 2 M32 to RMS thread adapters) | M32*0.75 (comes with 2 M32 to RMS thread adapters) |
| Magnetic Surface | Ø68.6mm, central aperture: M32*0.75 | / |
| Threaded Hole Type | 6×M4 (countersunk holes); 4×4-40, 60mm spacing | / |
| Dovetail Type | / | Male dovetail head: Ø51mm, α=60° |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |

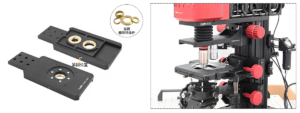

MA-OMD Series Magnetic Objective Lens Mount Plate
表格
| Model | MA-OMD1 | MA-OMD2 | MA-OMD3 |
| Specification | Ø68.5*8mm | Ø68.5*5mm | Ø68.5*5mm |
| Thread Type | SM1 internal thread / SM2 external thread | RMS internal thread | M26*0.705 internal thread |
| Cage System Compatibility | 30mm | 30mm | 30mm |
| Weight | 43.9g | 47.6g | 44.6g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
OPH-L Series Dovetail Slider Fixing Arm
| Model | OPH95-FAM1 | OPH95-FAM2 | OPH95-FA65 |
| Specification | 257.5*149.0*25.4mm | 257.5*149.0*25.4mm | 257.5*149.0*25.4mm |
| Mounting Platform | 224*75mm | 224*75mm | 224*75mm |
| Thread Type | SM1 (1.035”-40) internal thread | SM2 (2.035”-40) internal thread | Ø65mm |
| Cage System Compatibility | 30mm, 60mm | 60mm | 60mm |
| Weight | 806.5g | 752.8g | 708.8g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The lifting and focusing stage kit can be directly mounted on a 95mm guide rail as the microscope main structure, achieving a manual lifting stroke of 23mm along the optical axis. We offer a variety of mounting arm brackets to integrate and align objective lenses, condensers, macro lenses, lens tubes or cage systems along the optical axis, supporting the self-construction of condensers or other opto-mechanical components.
(2) The OPH95-LM series focusing kit consists of a 95mm dovetail clamp connectable to the microscope main body bracket, a handwheel translation stage and a right-angle adapter block. The LMA95 series mounting arms/mounts are connected via the right-angle block, and two versions of this module are available for users to select the appropriate one for optimal space utilization.
| Model | OPH95-LM1 | OPH95-LM2 | OPH95-LM3 | OPH95-LMP2 |
| Mounting Arm Method | Upper/Lower Mount | Middle Mount | Upper Mount | Middle Mount |
(3) The mounting arms are available in SM2 threaded hole, M32 threaded hole and solid platform versions, which can align lens tubes or cage systems along the optical axis at 196.5mm from the edge of the main body bracket guide rail. The LMA95-M32 mounting arm is additionally equipped with a magnetic surface for embedding the magnetic objective lens mount plate to quickly switch and mount objective lenses.
(4) The sliding dual objective lens mount allows two objective lenses to be mounted in an optical microscopy system simultaneously, making it ideal for building systems that use low-magnification objective lenses to locate regions of interest and high-magnification ones for imaging. The internal thread is compatible with M320.75 and comes with RMS thread adapters for connecting objective lenses. Microscope thread adapters are also available for purchase separately to convert M320.75 threads to other objective lens threads.
(5) When selecting an angle bracket, consideration should be given to the spacing required for displacement within the lifting range and the spacing required between adjacent components in the optical path. Six M4 threaded holes on the surface are used to connect with mounting arms/objective lens mounts. Right-angle blocks can be purchased separately, featuring four M3 countersunk holes for mounting and with dowel pins for easy alignment.
(6) The OPH-L series dovetail fixing arm is equipped with a 95mm dovetail clamp on the back, which can be directly fixed anywhere on the surface of the main body bracket, providing structural support for the user’s self-constructed optical path by tightening two 4mm set screws. The optical port is also positioned at the optical path 196.5mm from the edge of the vertical guide rail.
Assembly

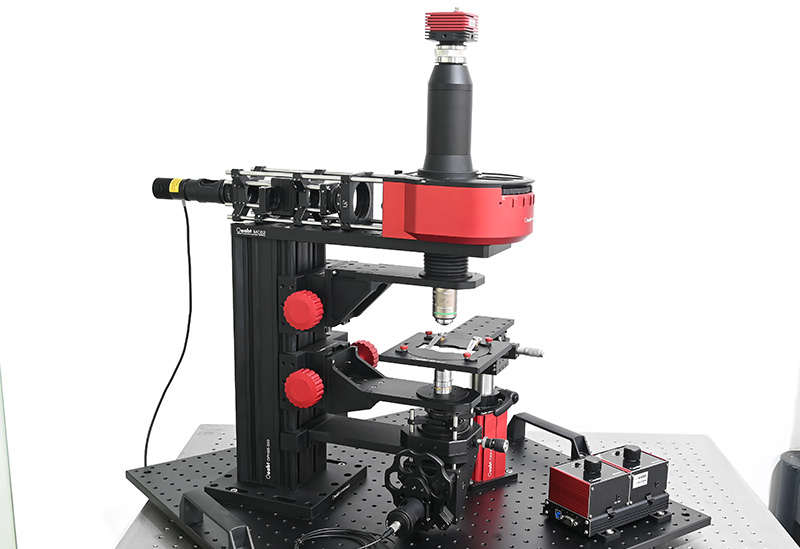

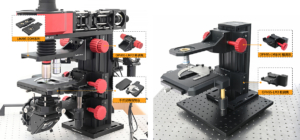

Application Examples
Engineering Drawings
OPH95-FAM2 Engineering Drawing
OPH95-FAM1 Engineering Drawing
OPH95-FA65 Engineering Drawing

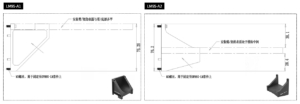

LMA95-SM2A Engineering Drawing
