OMK-FS Series Free-Space Support Kit Combination

Description

Product Description

• Basic mechanical kit: Free-space support kit
• Includes standard-base posts and post holders
• Multiple configuration options available
• Metric version

The free-space support kit combines metric post holders and bases, ideal for most projects and experiments. It includes fixed-height post bases, adjustable-height posts, and post holders for maximum flexibility and practicality. Stainless steel bases and clamps ensure high stability.

OMK-FS1 Kit List

Product Name	Model	Quantity	Unit
CA-A Series Post Holder	CA30-A	5	pcs
	CA50-A	5	pcs
	CA80-A	5	pcs
	CA100-A	5	pcs
Ø12 mm Stainless Steel Post	PCA4-S	5	pcs
	PCA6-S	5	pcs
	PCA8-S1	5	pcs
	PCA10-S1	5	pcs
Post Base	PCA31-S	20	pcs
Fork Clamp	M-BASE-C	20	pcs

OMK-FS2 Kit List

Product Name	Model	Quantity	Unit
Rotatable Magnetic Post Holder	CA30-XC	5	pcs
	CA50-XC	5	pcs
	CA80-XC	5	pcs
	CA110-XC	5	pcs
Ø12.7 mm Stainless Steel Post	PCAH1-S	5	pcs
	PCAH2-S	5	pcs
	PCAH3-S	5	pcs
	PCAH4-S	5	pcs

OMK-FS3 Kit List

Product Name	Model	Quantity	Unit
CAT Series Telescopic Post Holder	CAT57-T	10	pcs
	CAT80-T	10	pcs
Ø12 mm Stainless Steel Post	PCA3-S	5	pcs
	PCA4-S	5	pcs
	PCA5-S	5	pcs
	PCA6-S	5	pcs
	PCA8-S1	5	pcs
	PCA10-S1	5	pcs
Post Base	PCA31-S	20	pcs
Fork Clamp	M-BASE-C	20	pcs

Technical Description

OMK-FS1 KitHeight-adjustable post holders are ideal for mounting optical components when the exact system height is undetermined. Post and holder heights range from 30 mm to 100 mm.

OMK-FS2 KitMagnetic post holders feature a 360° rotatable base, speeding up alignment and reducing optical system assembly time. Post and holder heights range from 30 mm to 110 mm.

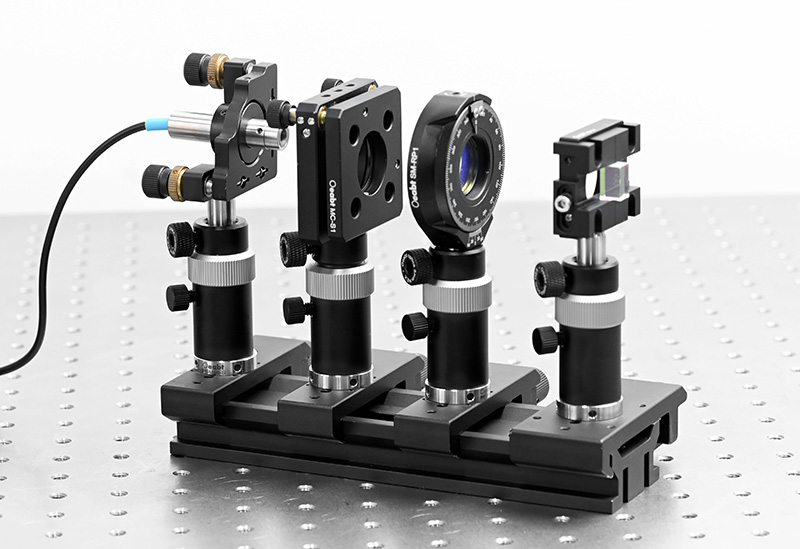

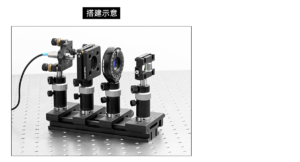

OMK-FS3 KitTelescopic post holders provide extra high-precision vertical adjustment, suitable for high-accuracy experiments. Post and holder heights range from 30 mm to 100 mm.

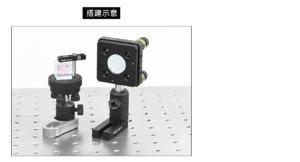

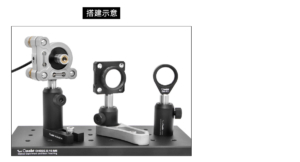

Assembly

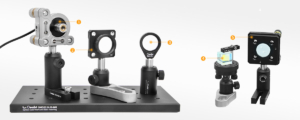

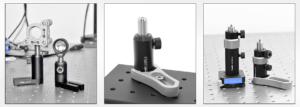

Application Examples
