Name: OMB Series Manual Translation Stage
SKU: 30648
Availability: InStock

Description

Product Description

Manual translation operation
Travel range: OMB1515 (±30 mm), OMB3030 (±60 mm)
Precision adjustment with wrench: 30.6 mm per revolution
Position lock with set screws
M6 threaded hole array, 25 mm spacing

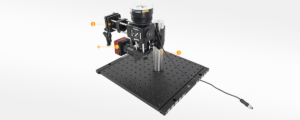

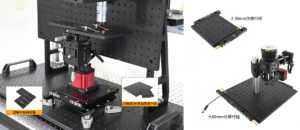

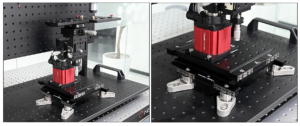

The OMB series largearea manual translation stage is ideal for adjusting experimental setups on optical tables. It features simple operation: push the stage for coarse positioning.

Model	OMB1515	OMB3030
Dimensions	195.9×150.0×12.7 mm	344.7×300×12.7 mm
Table size	150×147.6 mm	300×297.6 mm
Travel	±30 mm	±60 mm
Threaded holes	36×M6, 4×M6 (countersunk)	144×M6, 4×M6 (countersunk)
Weight	856.3 g	3110.0 g
Hole pattern	M6, 25 mm spacing	M6, 25 mm spacing
Precision adjustment	30.6 mm/rev	30.6 mm/rev
Material	7075 Aluminum Alloy	7075 Aluminum Alloy
Max load	17 kg	17 kg

Model	OPSMB15	OPSMB30
Dimensions	120×42×7.35 mm	200×42×7.35 mm
Threaded holes	2×M6, 2×M6 (countersunk)	2×M6, 2×M6 (countersunk)
Weight	192.0 g (pair)	325.6 g (pair)

Technical Notes

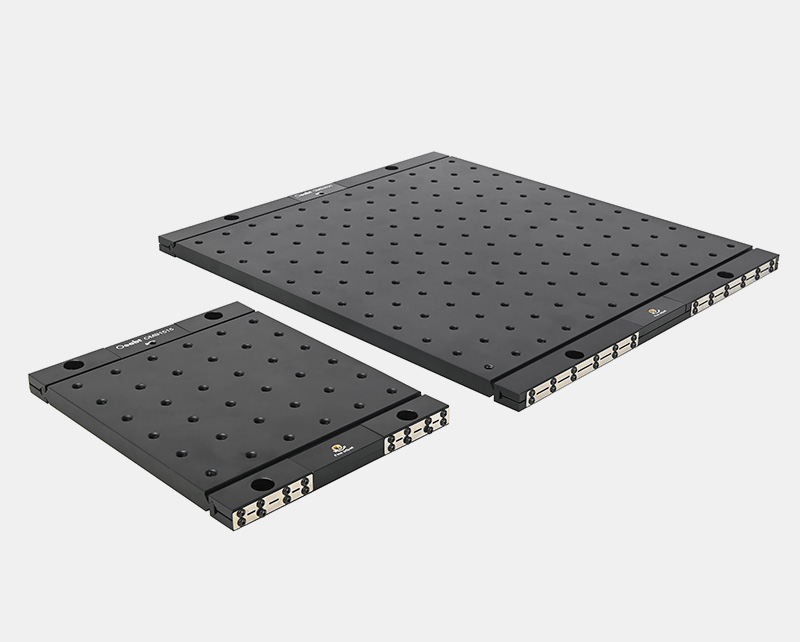

The OMB series largearea manual translation stage is specially designed for positioning optical setups on optical tables. It is easy to operate: push the stage for quick coarse positioning. Two sizes are available: 150×150 mm and 300×300 mm, for different experimental scales. OMB1515 offers 60 mm total travel, while OMB3030 offers 120 mm total travel.

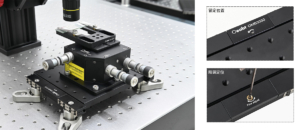

The stage is marked with laserengraved indicators for accurate adjustment and locking. Precision adjustment uses a 2 mm wrench to drive fine positioning at 30.6 mm per revolution. The lock indicator is also tightened with a 2 mm wrench to secure the stage position.

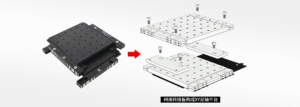

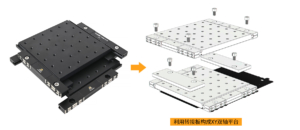

In addition, the OPSMB series adapter plates can be used to configure the translation stage into a dualaxis XY setup, further expanding its applications. Note that these plates are only compatible with the same series of stages. The assembled dualaxis stage has a working height of 32.75 mm and provides full travel in both X and Y directions.
