Description
Product Description
- Built-in drive and control circuit, equipped with a double-shaft output 28BYG stepper motor, supporting both electric and manual operation modes
- Integrated PID control function with smooth acceleration and deceleration curves, enabling stable start, stop, forward and reverse movement of the actuator without jitter
- Default 256x microstep subdivision for drive pulses, ensuring smooth, quiet and stable operation of the motion stage
- Hall joystick for real-time, linear and smooth stepless speed control of the linear motion stage during acceleration and deceleration
- Supports free motion control modes including jog, creep, and Hall stepless speed regulation for forward/backward feeding
- Retains the travel position before power-off; no automatic zero reset after restart (manual zero reset available)
- Motor reset and speed switching (high/low gears) via combined key operation
- Realizes interaction with host computer programs via USB serial communication, adopting the ASCII O’motion instruction set as the communication protocol
- Enables the development of host computer control programs on Windows/Linux/MacOS/Android and other operating systems with serial communication function for cross-platform applications
- Provides Windows-version host computer control program samples and communication protocol documents for convenient secondary development or system integration by users
This linear motion stage integrates the O’motion series drive and controller, enabling precise motion control without external control equipment, which greatly simplifies the system architecture and installation process.
表格
| Model | OLTS-150S | OLTS-300S |
Dimensions | 360×100×40.5 mm | 500×100×40.5 mm |
| Total Stroke | 146 mm | 296 mm |
| Weight | 2000.3 g | 2610.0 g |
| Tabletop Size | 100×90 mm | 100×90 mm |
| Tabletop Threads | 16×M6, 6×Ø3 mm (dowel holes) | 16×M6, 6×Ø3 mm (dowel holes) |
| Lead Screw | Ø8 mm, 1 mm lead | Ø8 mm, 1 mm lead |
| Guide Rail Type | Dual linear guide rails | Dual linear guide rails |
| Material | Aluminum alloy + high carbon steel | Aluminum alloy + high carbon steel |
| Accuracy Specifications | – | – |
| Full-Step Resolution | 0.002 μm/pulse | 0.002 μm/pulse |
| Half-Step Resolution | 0.001 μm/pulse | 0.001 μm/pulse |
| High-Speed Gear | 4.69 mm/s | 4.69 mm/s |
| Low-Speed Gear | 2.93 mm/s | 2.93 mm/s |
| Jog Distance | 0.1 mm (fixed value) | 0.1 mm (fixed value) |
| Positioning Accuracy | ±0.01 mm | ±0.01 mm |
| Unidirectional Repeat Positioning Accuracy | ±0.02 mm | ±0.02 mm |
| Bidirectional Repeat Positioning Accuracy | ±0.03 mm | ±0.03 mm |
| Load Capacity | 11.7 kg | 11.7 kg |
| Motor & Sensor Specifications | – | – |
| Motor Type | Two-phase stepper motor | Two-phase stepper motor |
| Motor Model | 28BYG-60AB | 28BYG-60AB |
| Rated Current | 0.6 A/Ph | 0.6 A/Ph |
| Step Angle | 1.8° | 1.8° |
| Microstep Count | 51200 | 51200 |
| Sensor Type | Slot-type photoelectric sensor | Slot-type photoelectric sensor |
| Sensor Supply Voltage | DC 5V | DC 5V |
| Current Consumption | 50 mA | 50 mA |
| Output Electrical Characteristic | NPN normally closed | NPN normally closed |
| Signal Validity | Low level active | Low level active |
BASE-PL
| Specification | Value |
| Dimensions | 200×90×6 mm |
| Thread Holes | 4×M4 (countersunk holes), 6×M6, 2×Ø12 mm (through holes), 4×Ø4 mm (blind holes), 2×Ø3 mm (locating holes) |
| Weight | 281.6 g |
| Material | 7075 aluminum alloy |
APT-90L
| Specification | Value |
| Dimensions | 102×98×230 mm |
| Thread Holes | Base plate: 8×M6 (countersunk holes); Side plate: 3×M6, 2×Ø3 mm (locating holes) |
| Weight | 1104.4 g |
| Material | 7075 aluminum alloy |
Technical Notes
The stage is equipped with a 28BYG stepper motor and supports 256x microstep subdivision technology. The unique Hall joystick design enables real-time stepless speed control, and combined with the built-in PID control algorithm, it achieves smooth acceleration and deceleration curves, effectively eliminating motion jitter. The dual linear guide rail structure and precision lead screw drive deliver a positioning accuracy of ±0.01 mm.
The stage features both electric and manual operation modes, supporting multiple control methods such as jog and creep, and is equipped with a power-off position memory function with no need for re-zeroing after restart. In terms of the control system, the stage supports USB serial communication and is compatible with multiple operating systems including Windows, Linux, MacOS and Android. It adopts the standard ASCII O’motion communication protocol and is accompanied by complete development documents and sample programs, facilitating secondary development and system integration for users.
Adopting a modular design with a built-in O’motion series drive and controller, the stage provides users with a convenient integrated motion control solution. Manual control: Stepless speed regulation via the Hall joystick; Automatic operation: Support for automatic execution of preset programs.
。

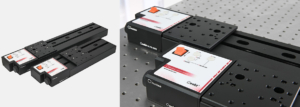

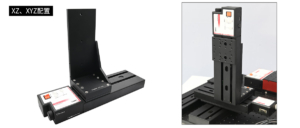

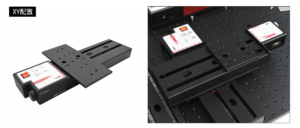

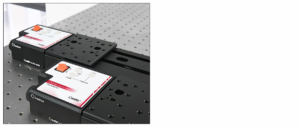

Adapter plates and right-angle brackets allow multiple stages to be configured into XY, XZ and XYZ multi-axis setups.
Assembly

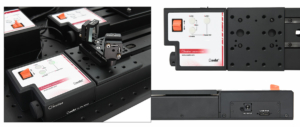

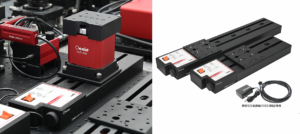

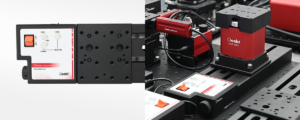

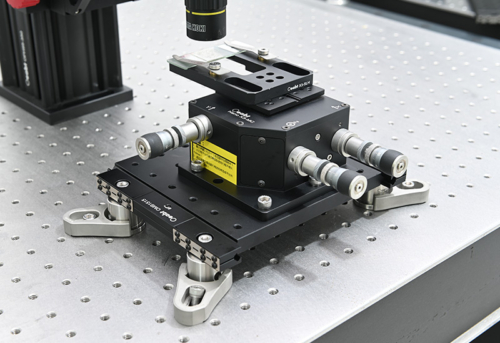

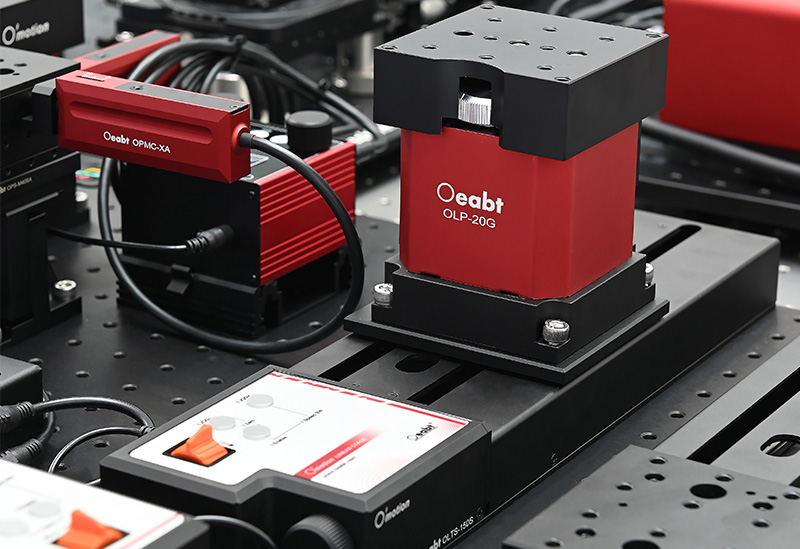

Application Examples
