Description
Product Description
- High-density M6 threaded hole array, 12.5 mm hole spacing
- Black anodized aluminum finish to minimize reflections
- Countersunk holes for bottom-mounted installation
- Multiple sizes available

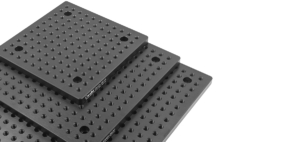

This series of optical breadboards is specially designed for compact setups. The high-density mounting holes allow precise placement and support for optical components, instruments, and experimental setups.
| Panel Thickness | 10.2 mm |
| Hole Spacing | 12.5 mm |
| Countersunk Holes | 4×M6 |
| Material | 7075 Aluminum Alloy |

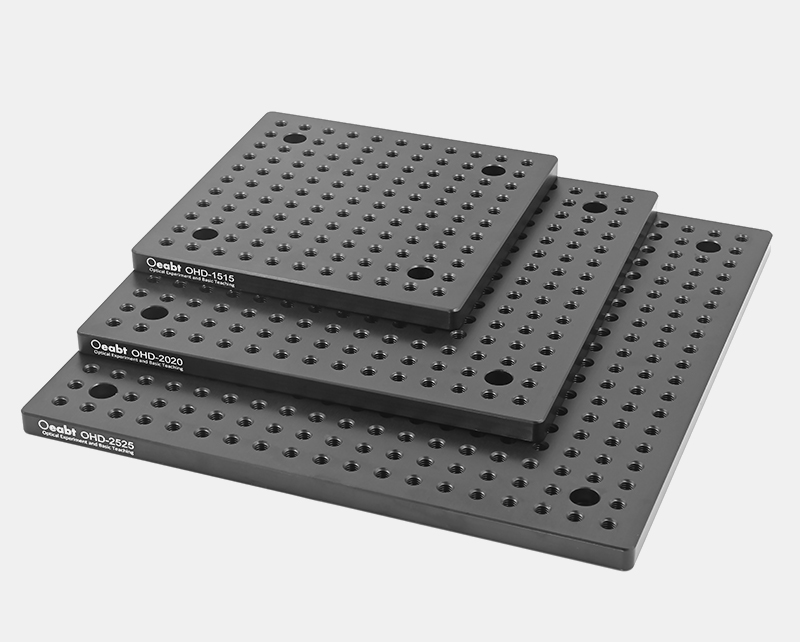

| Model | OHD1515 | OHD2020 | OHD2525 |
| Dimensions | 150×150 mm | 200×200 mm | 250×250 mm |
| Threaded Holes | 117×M6 | 221×M6 | 357×M6 |
| Weight | 530.5 g | 938.5 g | 1469.0 g |
Technical Notes
This series of optical breadboards is designed for space-constrained setups with high-density mounting holes, ideal for mounting and supporting various optical components, devices, and experimental assemblies. The top surface features a high-density M6 hole array with 12.5 mm spacing, allowing compact installation of optics, mounts, and fixtures.
The breadboard surface is black anodized to minimize reflections.

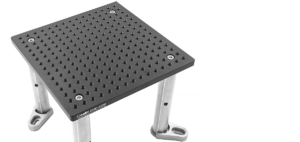

Side lengths are available from 150 mm to 250 mm. Each breadboard has 4 countersunk holes at the corners (12.5 mm from each edge), allowing mounting to standard breadboards, mounting brackets, or post assemblies without interfering with the top mounting surface.

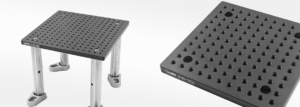

Assembly

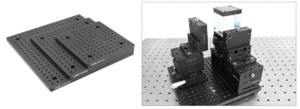

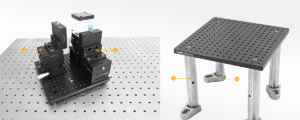

Application Examples
