Description

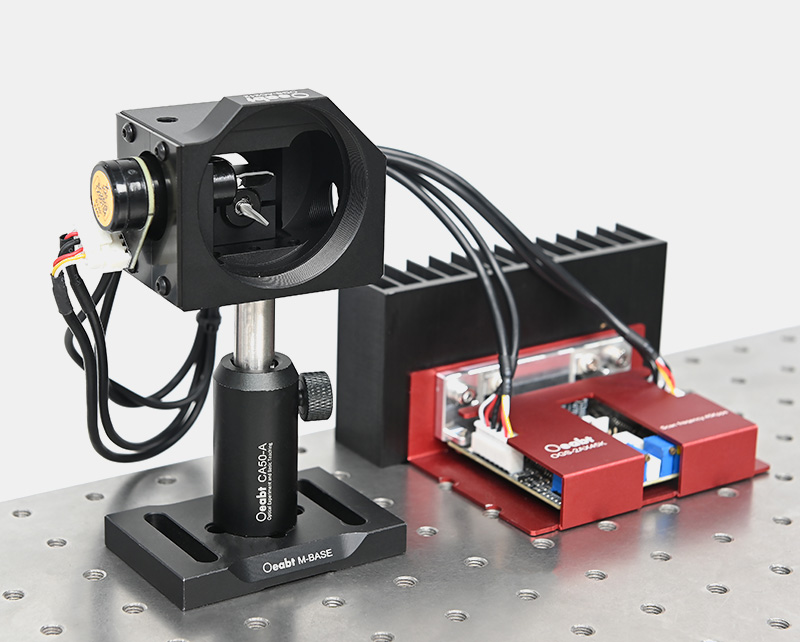

Product Description
- Suitable for light beams with diameter ≤5mm;
- Sold as a complete set, can be directly integrated into Oeabt® cage or free-space systems;
- The galvanometer adopts a moving-magnet motor with fast response;
- The driver is equipped with an internal PD closed-loop control circuit, ensuring high precision of galvanometer operation;
- Galvanometer products with scanning speeds of 10Kpps/25Kpps are available for users to choose;

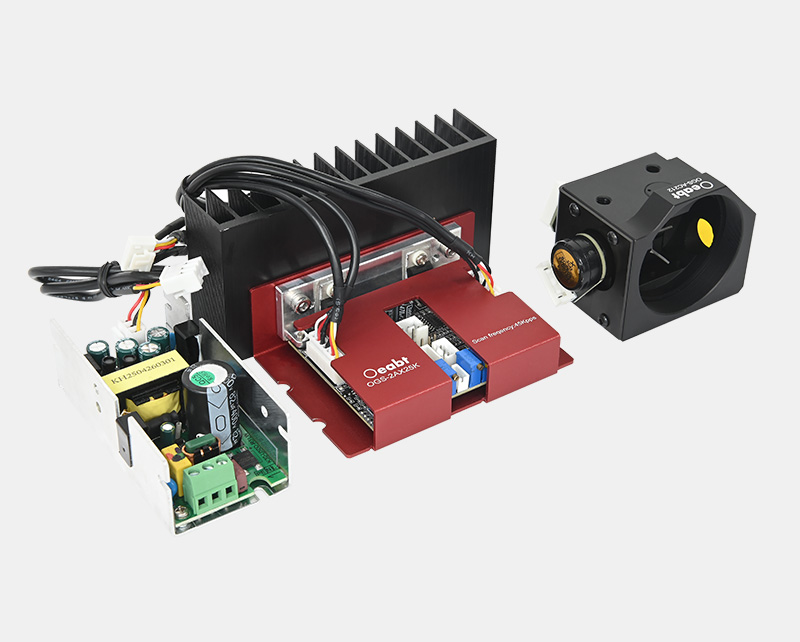

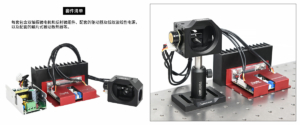

- The pre-installation kit includes a driver, a dual-axis galvanometer motor, a heat sink, a power supply, and an adapter cube;
The high-speed scanning galvanometer positioning system is used for integration into light beam manipulation applications with small-diameter light beams (≤5mm).
| Model | OGS-2AX10K | OGS-2AX25K |
| Maximum Beam Diameter | Ø5mm | Ø5mm |
| Power Supply Voltage | ±10V/1A | ±24V/1A |
| Scanning Speed | 10Kpps | 25Kpps |
| Mirror Size | X/Y axis 8*14*1mm | X/Y axis 8*14*1mm |
| Driver Board Size | 85*62*37mm | 80*50*28mm |
| Scale Drift | 80PPM/℃ | 100PPM/℃ |
| Zero Drift | / | 20 urad/℃ |
| Repeat Accuracy | 15 microradians | 10 microradians |
| Analog Signal Input Impedance | 200k±1%Ω (Differential Input) | 200k±1%Ω (Differential Input) |
| Position Input Scale Factor | 0.5 V/° | 0.5 V/° |
| Analog Position Input Range | ±5V | ±5V |
| Electronic Temperature Stability | 40PPM/℃ | 40PPM/℃ |
| Operating Temperature | 0-50℃ | 0-50℃ |
| Scanning Angle | ±20° | ±20° |
| Mirror Reflectivity | Silver Coating ≥95% | Silver Coating ≥95% |
| Linearity | >98.0% @45° Incidence (Wavelength Coverage: 380-680nm) | >98.0% @45° Incidence (Wavelength Coverage: 380-680nm) |
| Wavelength Range | 400-1700nm | 400-1700nm |
| OGS-AC212Adapter Cube | Mounting Axis: XY Dual Axis; Motor Mounting Hole: Ø12.8mm | Mounting Axis: XY Dual Axis; Motor Mounting Hole: Ø12.8mm |
| Input Port: SM05 and SM1 Internal Thread; 4 places of 4-40*4, compatible with 30mm cage | Input Port: SM05 and SM1 Internal Thread; 4 places of 4-40*4, compatible with 30mm cage | |
| Output Port: SM2 Internal Thread | Output Port: SM2 Internal Thread | |
| Screw Hole Type: Bottom: 2 places of M3*2, 3 places of M4*3, 2 places of M6*2; Top: 2 places of M6*2 | Screw Hole Type: Bottom: 2 places of M3*2, 3 places of M4*3, 2 places of M6*2; Top: 2 places of M6*2 |

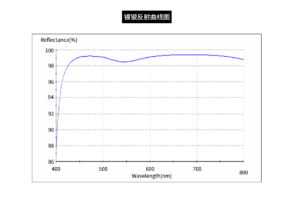

Curve

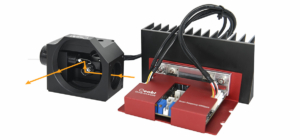

Technical Description
(1) The high-speed scanning galvanometer positioning system is used for integration into light beam manipulation applications with small-diameter light beams (≤5mm).
(2) During initial setup, a drive signal generator such as DAC or DAQ is required to drive the galvanometer driver. The front-end controller of the DAC may involve different galvanometer control protocols, such as the IRDA protocol for laser animation performances or the XY2-100 protocol for laser marking. Users can choose the corresponding protocol to control the galvanometer system according to different applications.
(3) XY dual-axis motor, providing galvanometers with scanning speeds of 10Kpps or 25Kpps. Oeabt also offers a variety of installation solutions such as free-space and cage systems to integrate the galvanometer system into your optical system.

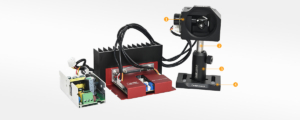

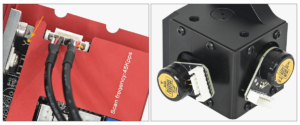

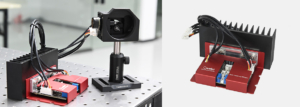

Assembly

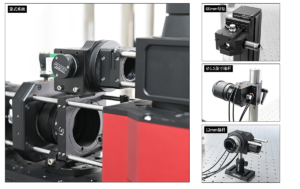

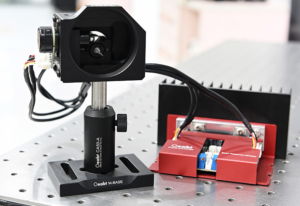

Application Examples
Engineering Drawings
