OEDU-3DPIE Polarized 3D Imaging Technology
OEDU-3DPIE Polarized 3D Imaging Technology
Price range: $478.00 through $2,458.80
Description
Product Description
Oeabt Educational Demonstration Series is designed to support advances in physics, optics, photonics, and emerging research fields through classic experiments. Each educational kit includes all necessary components and an instruction manual with detailed setup and operational guidance.
Polarized 3D imaging technology is based on the polarization properties of light and the principle of stereoscopic vision.
Light Source Components
表格
| Item | Model | Notes | Qty |
| LED Light Source | LED-D1-MAX6K | White light 6000–6500K; DC 12V, 2W Max | 2 |
| Dimming Controller | LEDOTB-1000 | 1000mA, continuous & pulse mode supported | 2 |
| Ø1” Lens Sleeve | CSA-32 | SM1 thread, L=32mm, with 1 retaining ring | 2 |
| 30mm Through-Hole Cage Plate | CSJ-31 | Limit hole Ø30.6mm, setscrew clamping | 2 |
Sample Holder Components
表格
| Item | Model | Notes | Qty |
| Tilt Adjustment Mount | LB-A3 | ±4° tilt, ±2mm Z-axis translation | 2 |
| Rectangular Mount | LFM1-A | Holds 28–40mm wide, <3mm thick optical elements | 2 |
Lens Components
表格
| Item | Model | Notes | Qty |
| Plano-Convex Lens | OLB-I1-70PM | Ø1”, f=70mm, AR coating 400–700nm | 2 |
| Lens Mount | SM-R1 | For Ø1” optics, SM1 thread | 2 |
Polarizer Components
表格
| Item | Model | Notes | Qty |
| Linear Polarizer | PBSW-C1 | Ø1”, operating wavelength 400–780nm | 2 |
| Rotation Mount | SM-RP | 360° rotation, 2° division; main scale 1°, vernier 5 arcmin | 2 |
Mechanical Components
表格
| Item | Model | Notes | Qty |
| Optical Breadboard | OHD3030-A | 300×300×13mm, M6 hole array, 4 counterbores | 1 |
| Rubber Feet | — | For breadboard | 4 |
| Post Holder | CAT57-T | Telescopic, L=57mm, twist height 8mm | 8 |
| Post | PCAH2.5-S | Ø12.7mm, L=63.5mm, M4/M6 threaded ends | 8 |
| Post Base | PCA31-S | M6 bolt | 8 |
| Clamp | M-BASE-C | Fork-type, secures post holders | 8 |
| Imaging Accessory | Slide | Assorted patterns, one set | 1 |
| Projection Screen | — | Gray diamond anti-light screen | 1 |
| 3D Glasses | — | Linear polarized 3D glasses | 1 |
| Tool Kit | SPW-TH | With 7 thumb screws & 7 hex keys | 1 |
| Retaining Ring Wrench | SPW-SM150 | L=150mm, scaled, for SM1 rings | 1 |
| Screw Pack | — | Complimentary | — |
Optional: 3DPIE-RB Anaglyph Red-Blue Components
表格
| Item | Model | Notes | Qty |
| LED Light Source | LED-D1-464 | 464–467nm; DC 12V, 2W Max | 1 |
| LED Light Source | LED-D1-640 | 640–645nm; DC 12V, 2W Max | 1 |
| Red-Blue 3D Glasses | — | Optical 3D lenses | 1 |
Technical Description
Experiment Summary
The polarized 3D imaging experiment demonstrates the versatility and practicality of polarized light by exploring its fundamental properties and applications in science, technology, and daily life. It covers basic polarized light characterization (Malus’s Law, polarization state measurement), λ/4 waveplate applications, and implementation/comparison of 3D imaging methods (linear polarization, Anaglyph red-blue). The kit helps users grasp polarized light principles and real-world usage.
Experiment Principle

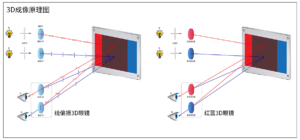

Polarized 3D technology relies on light polarization and stereoscopic vision. Polarizing filters assign orthogonal polarization directions to left and righteye images. Viewers wearing polarized glasses see only the corresponding image per eye, creating a stereoscopic effect. Widely used in cinema, gaming, and education, it delivers immersive visual experience.
Experiment Objectives
- Study fundamental polarized light properties via Malus’s Law and polarization state measurement.
- Explore realworld applications using λ/4 waveplates and 3D imaging.

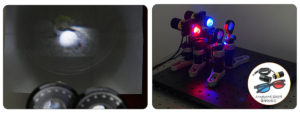

- Demonstrate 3D imaging principles using linear polarization and Anaglyph redblue methods.
- Develop optical experimental skills and deepen understanding of polarized light and its uses.
Kit Contents
The polarized 3D imaging kit provides a complete practical platform for studying polarized light properties and applications in science, industry, and daily life.

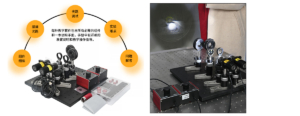

Experiment Contents

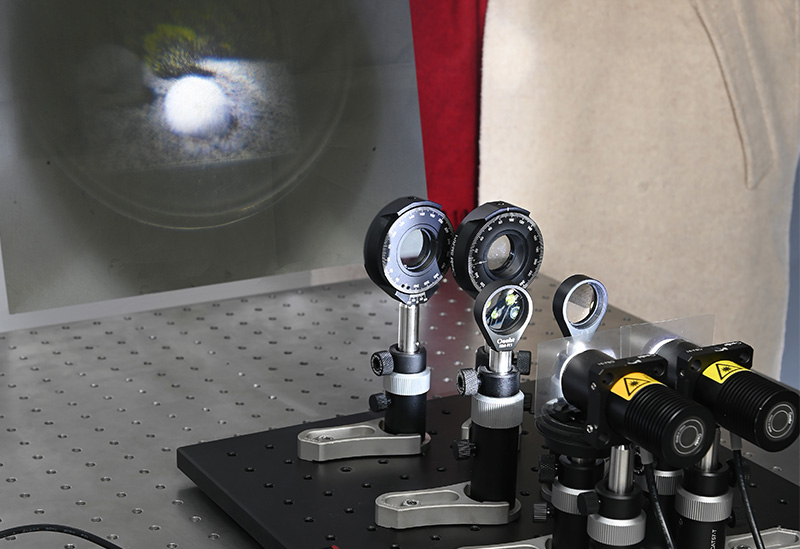

- Optical path setup & alignment
- Handson operation & observation

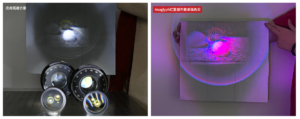

- Troubleshooting & Q&A

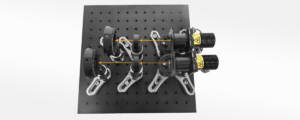

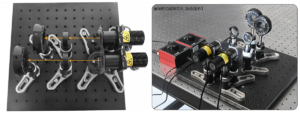

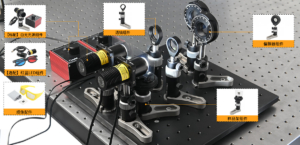

Assembly

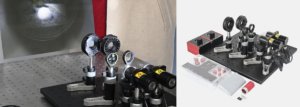

Application Examples
Additional information
| Model | OEDU-3DPIE, 3DPIE-RB |
|---|
