MT Series Microscope Objective Thread Adapters
Product Description
- Solid brass construction
- M32 and SM2 external thread adapters available
- Realizes thread conversion between RMS/M25/M26/M27/M32/M34/M40/SM1/SM2
- Compatible with most objective turrets, mounting frames, and for compatible connection of cage systems and microscope systems
- Flange design prevents over-tightening into component mounts and damage to microscope objectives
Objective thread adapters are primarily designed to connect microscope objectives with other equipment or accessories, achieving mutual compatibility and coordinated operation between different types of systems.
Microscope Thread Adapters (Step-less)
| Model | Dimension | External Thread Type | Internal Thread Type | Weight | Material |
|---|---|---|---|---|---|
| MT-M32-SM1 | Ø32×5mm | M32*0.75 | SM1 (1.035”-40) | 10.1g | Brass |
| MT-M32-RMS | Ø32×5mm | M32*0.75 | RMS (0.8”-36) | 19.1g | Brass |
| MT-M32-M25 | Ø32×5mm | M32*0.75 | M25*0.75 | 12.1g | Brass |
| MT-M32-M26 | Ø32×5mm | M32*0.75 | M26*0.706 | 10.5g | Brass |
| MT-M32-M27*0.75 | Ø32×5mm | M32*0.75 | M27*0.75 | 8.7g | Brass |
| MT-M32-M27*1 | Ø32×5mm | M32*0.75 | M27*1 | 9.0g | Brass |
| MT-M32-M34 | Ø37×12.5mm | M32*0.75 | M34*1 | 22.0g | Brass |
| MT-M32-M40 | Ø44×12.5mm | M32*0.75 | M40*0.706 | 32.8g | Brass |
| MT-SM2-M32 | Ø51.7×5mm | SM2 (2.035”-40) | M32*0.75 | 52.6g | Brass |
| MT-SM2-M34 | Ø51.7×5mm | SM2 (2.035”-40) | M34*1 | 48.8g | Brass |
| MT-SM2-M40 | Ø51.7×5mm | SM2 (2.035”-40) | M40*0.706 | 33.6g | Brass |
Microscope Thread Adapters (Stepped)
| Model | Dimension | External Thread Type | Internal Thread Type | Weight | Material |
|---|---|---|---|---|---|
| ST-M32-SM1 | Ø32×5mm | M32*0.75 | SM1 (1.035”-40) | 14.2g | Brass |
| ST-M32-RMS | Ø32×5mm | M32*0.75 | RMS (0.8”-36) | 25.9g | Brass |
| ST-M32-M25 | Ø32×5mm | M32*0.75 | M25*0.75 | 17.0g | Brass |
| ST-M32-M26 | Ø32×5mm | M32*0.75 | M26*0.706 | 14.9g | Brass |
| ST-M32-M27*0.75 | Ø32×5mm | M32*0.75 | M27*0.75 | 13.2g | Brass |
| ST-M32-M27*1 | Ø32×5mm | M32*0.75 | M27*1 | 12.8g | Brass |
| ST-SM2-M32 | Ø37×12.5mm | SM2 (2.035”-40) | M32*0.75 | 97.3g | Brass |
| ST-SM2-M34 | Ø44×12.5mm | SM2 (2.035”-40) | M34*1 | 90.0g | Brass |
| ST-SM2-M40 | Ø51.7×5mm | SM2 (2.035”-40) | M40*0.706 | 63.0g | Brass |
Technical Description

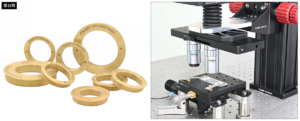

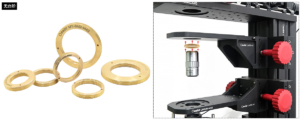

(1) Objective thread adapters are mainly used to connect microscope objectives with other equipment and accessories, achieving mutual compatibility and collaborative operation between different systems. They are compatible with most objective turrets and mounting frames, as well as for the compatible connection of cage systems and microscope systems, thereby expanding the functions of the microscope system and meeting the requirements of specific scientific research or industrial applications.

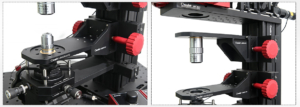

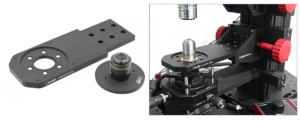

(2) The LMA95-M32 mounting arm is additionally equipped with a magnetic surface, into which a magnetic objective mounting disk can be embedded for quick switching and installation of objective lenses. It can align lens sleeves or cage systems along the optical axis, with the optical axis positioned 196.5mm from the edge of the main support guide rail.

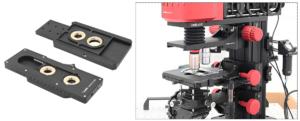

(3) The sliding dual objective mount allows two objective lenses to be installed in an optical microscopy system at the same time, making it ideal for building systems that use low-magnification objective lenses to locate regions of interest and high-magnification lenses for imaging. Its internal thread is compatible with M320.75, and it comes with RMS thread adapters for connecting objective lenses. Optional microscope thread adapters (purchased separately) are available to convert M320.75 threads to other objective lens threads.
Assembly

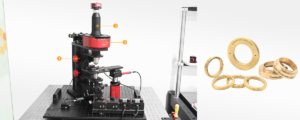

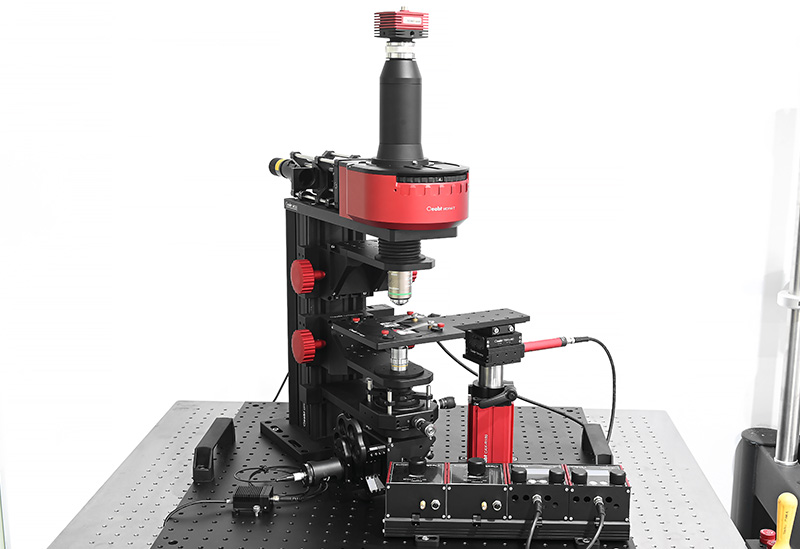

Application Examples
Engineering Drawings
20.MT-M32-SM1Engineering Drawing
19.MT-M32-RMS Engineering Drawing
18.MT-M32-M26 Engineering Drawing
17.MT-M32-M25 Engineering Drawing
16.MT-M32-M27 0.75 Engineering Drawing
15.MT-M32-M27 1.0 Engineering Drawing
14.MT-M32-M34 Engineering Drawing
13.MT-M32-M40 Engineering Drawing
12.MT-SM2-M32 Engineering Drawing
11.MT-SM2-M34 Engineering Drawing
10.MT-SM2-M40 Engineering Drawing
9.ST-M32-RMS Engineering Drawing
8.ST-M32-RMS Engineering Drawing
7.ST-M32-M25 Engineering Drawing
6.ST-M32-M26 Engineering Drawing
5.ST-M32-M27 0.75 Engineering Drawing
4.ST-M32-M27 1 Engineering Drawing
3.ST-SM2-M32 Engineering Drawing
2.ST-SM2-M34 Engineering Drawing
1.ST-SM2-M40 Engineering Drawing
