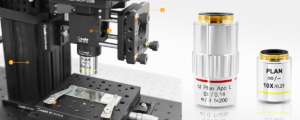

Product Description
- Infinity-corrected, plan (apochromatic) flat-field achromatic design.
- Ideal choice for magnified imaging or light focusing.
- Dry objective designed for air medium between objective, sample, or coverslip.
- Magnification ranges from 5× to 60×, delivering imaging with various magnifications and resolutions.
- Thread for MOP series objectives: RMS (0.800”-36), equivalent to 20.32×0.706 mm.
- Thread for MOPL series objectives: M26×0.705 mm.
| Model | MOP10X | MOP20X | MOP40X | MOP60X |
| Magnification | 10× | 20× | 40× | 60× |
| Numerical Aperture (NA) | 0.25 | 0.40 | 0.65 | 0.80 |
| Working Distance (WD) (mm) | 15.86 | 1.04 | 0.67 | 0.50 |
| Focal Length (f) (mm) | 18 | 9 | 4.5 | 3 |
| Resolution (R) (μm) | 1.34 | 0.83 | 0.51 | 0.41 |
| Depth of Focus (DF) (μm) | 4.4 | 1.72 | 0.65 | 0.43 |
| Object Field of View (mm) | 2.5 | 1.25 | 0.62 | 0.40 |
| Image Field of View (mm) | 25 | 25 | 25 | 25 |
| Coverslip Thickness (mm) | N/A | 0.17 | 0.17 | 0.17 |
| Barrel Dimensions (mm) | Ø24×31 | Ø24×45 | Ø24×46 | Ø24×46 |
| Weight (g) | 68.6 | 95.4 | 88.1 | 92.1 |
| Applicable Wavelength | 400–700 nm | 400–700 nm | 400–700 nm | 400–700 nm |
| Thread Type | RMS (0.800”-36), 20.32×0.706 mm | RMS (0.800”-36), 20.32×0.706 mm | RMS (0.800”-36), 20.32×0.706 mm | RMS (0.800”-36), 20.32×0.706 mm |
| Material | Copper barrel, chrome-plated surface | Copper barrel, chrome-plated surface | Copper barrel, chrome-plated surface | Copper barrel, chrome-plated surface |
| Model | MOPL5X | MOPL10X | MOPL20X | MOPL50X |
| Magnification | 5× | 10× | 20× | 50× |
| Numerical Aperture (NA) | 0.14 | 0.28 | 0.34 | 0.5 |
| Working Distance (WD) (mm) | 33.61 | 33.4 | 29.56 | 18.9 |
| Focal Length (f) (mm) | 40 | 20 | 10 | 4 |
| Resolution (R) (μm) | 2.2 | 1.2 | 0.8 | 0.7 |
| Depth of Focus (DF) (μm) | 14.03 | 3.50 | 2.68 | 1.19 |
| Object Field of View (mm) | 5 | 2.5 | 1.25 | 0.5 |
| Image Field of View (mm) | 25 | 25 | 25 | 25 |
| Coverslip Thickness (mm) | N/A | N/A | N/A | N/A |
| Barrel Dimensions (mm) | Ø34×61.4 | Ø36×61.6 | Ø36×65.4 | Ø36×76.1 |
| Weight (g) | 302 | 302 | 352 | 336 |
| Applicable Wavelength | 400–700 nm | 400–700 nm | 400–700 nm | 400–700 nm |
| Thread Type | M26×0.705 | M26×0.705 | M26×0.705 | M26×0.705 |
| Material | Copper barrel, chrome-plated surface | Copper barrel, chrome-plated surface | Copper barrel, chrome-plated surface | Copper barrel, chrome-plated surface |
Technical Notes
A microscope objective is a key optical component in microscopes, mainly used to focus light onto the sample and magnify the image. It usually consists of multiple lenses with specific optical designs and parameters, enabling imaging at various magnifications and resolutions.

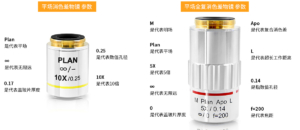

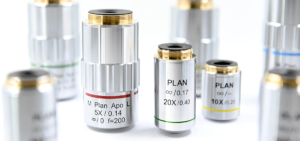

Barrel Marking Parameters
Low-magnification objectives have a larger clear aperture, providing brighter images and wider fields of view. High-magnification objectives offer significantly stronger magnification but narrower fields and lower brightness, requiring careful focusing to locate targets. The 20×–100× objectives in the MOP series must approach the slide closely for imaging, so they feature a spring mechanism at the tip to prevent crushing the slide.

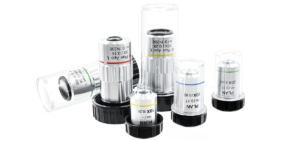

Each objective comes with a storage case. When not in use, objectives can be stored neatly in the case for dust and moisture protection, ensuring better preservation.

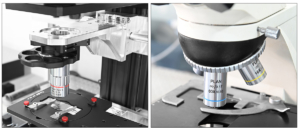

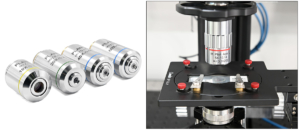

Assembly

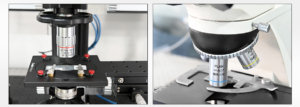

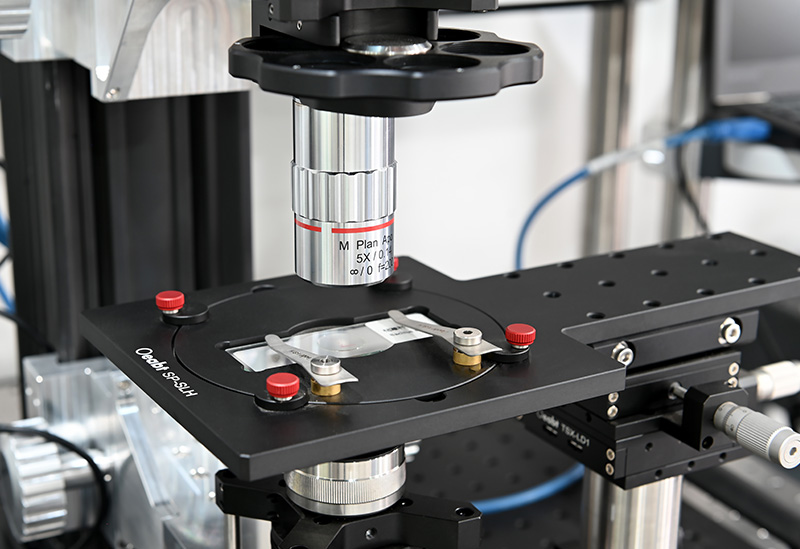

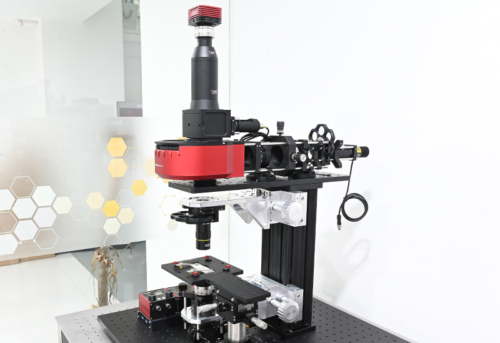

Application Examples
