Description

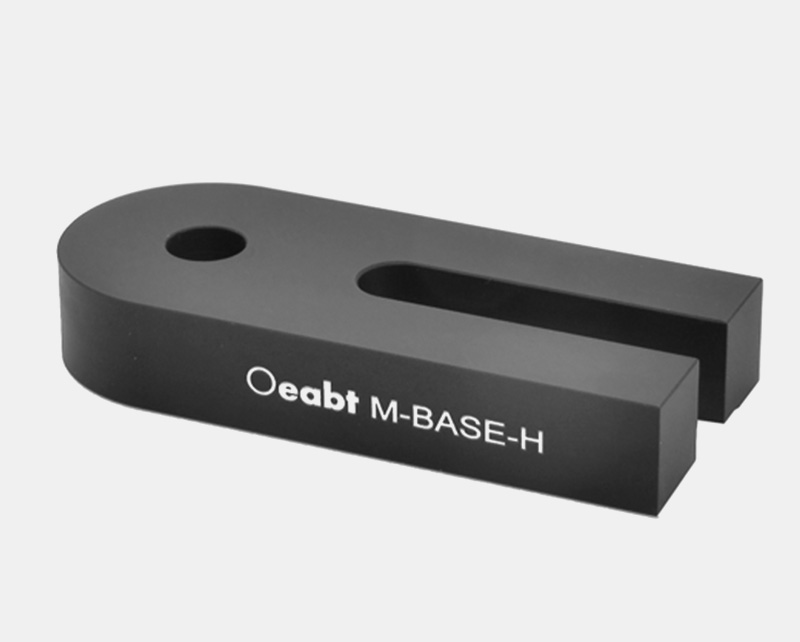

Product Description
- Ideal for installing and positioning rods, and connecting rod sleeve brackets.
- Can be connected to rod sleeves via M6 counterbores at the bottom.
- Can be installed on breadboards or optical platforms using the clearance slot for M6 cap screws.
- Made of anodized aluminum with a bottom groove to ensure installation stability.

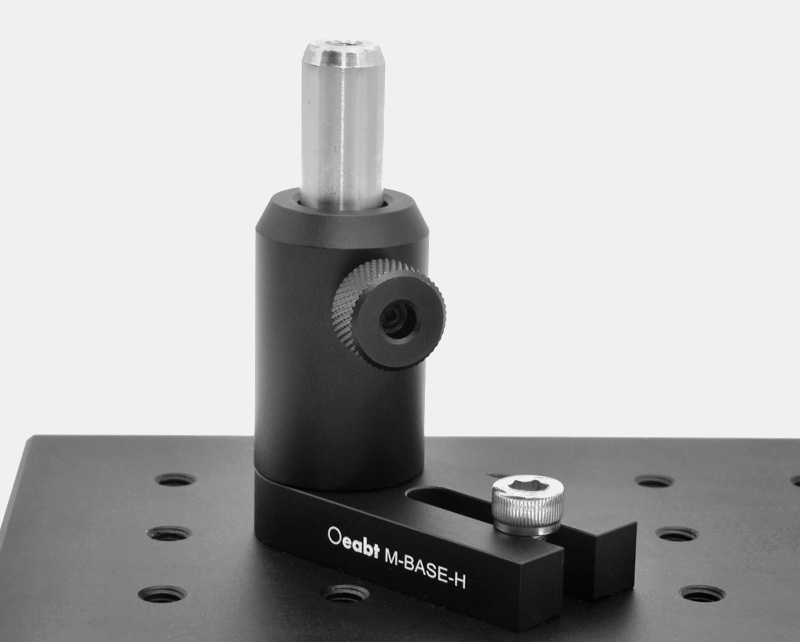

The H-type pressure plate maximizes space utilization on optical breadboards, ensuring high stability while maintaining a compact base profile. It is used to position and fasten rod brackets on optical platforms.
| Model | M-BASE-H |
| Dimensions | 58.42510mm |
| Counterbore | M6 |
| Clearance Slot | 31.0*6.6mm |
| Weight | 29.3g |
| Material | 7075 aluminum alloy |
Technical Description

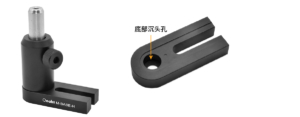

The H-type pressure plate maximizes space utilization on optical breadboards, ensuring high stability while maintaining a compact base profile. It is used to position and fasten rod brackets on optical platforms. Rod brackets are installed and fixed via M6 cap screws passing through the counterbores at the bottom of the base.

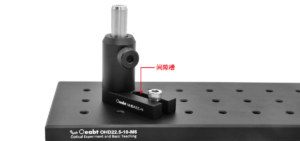

The pressure plate features a 31mm (length) × 6.6mm (width) clearance slot, compatible with the threaded hole layout of optical platforms and breadboards. It can be installed on breadboards or optical platforms in any direction without being restricted by thread spacing.

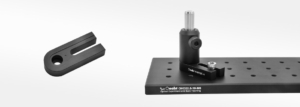

Assembly

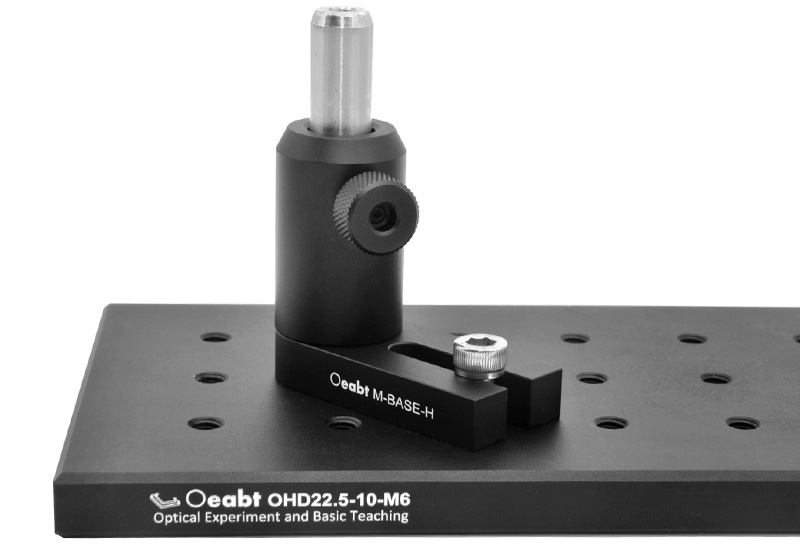

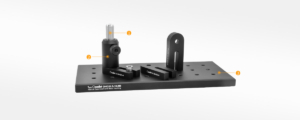

Application Example
Ideal for installing and positioning rods, and connecting rod sleeve brackets.
Engineering Drawing Download
