Description
Product Description
- FC port adapter plate, wide key 2.2 mm, port bore Ø2.5 mm.
- Commonly used for assembling free-space fiber couplers, collimators and other free-space coupling applications.
- Works with lens sleeves to create a light-tight structure.
- Compatible with SM-thread photodetectors or power meter probes.
- Available with SM05 and SM1 thread flange options.
The FC fiber adapter plate connects fibers with FC/PC connectors to SM-threaded components.
| Port Type | FC/PC interface, wide key 2.2 mm |
| Port Bore | Ø2.5 mm |
| Material | Aluminum alloy + stainless steel + ceramic core |
| Model | SM05-FC25 | SM1-FC25 | SMB-FC25 |
| Dimensions | Ø13.3×7.6 mm | Ø26×7.6 mm | 30.4×7.6 mm |
| Thread Type | SM05 (0.535”-40) external thread | SM1 (1.035”-40) external thread | SM1 (1.035”-40) internal thread |
| Weight | 2.7 g | 5.7 g | 5.8 g |
Technical Description
- The FC fiber adapter plate connects fibers with FC/PC connectors to SM-threaded components. It can link patch cords, fiber probes and other devices, or connect standard fibers to optical accessories for complex optical experiments.

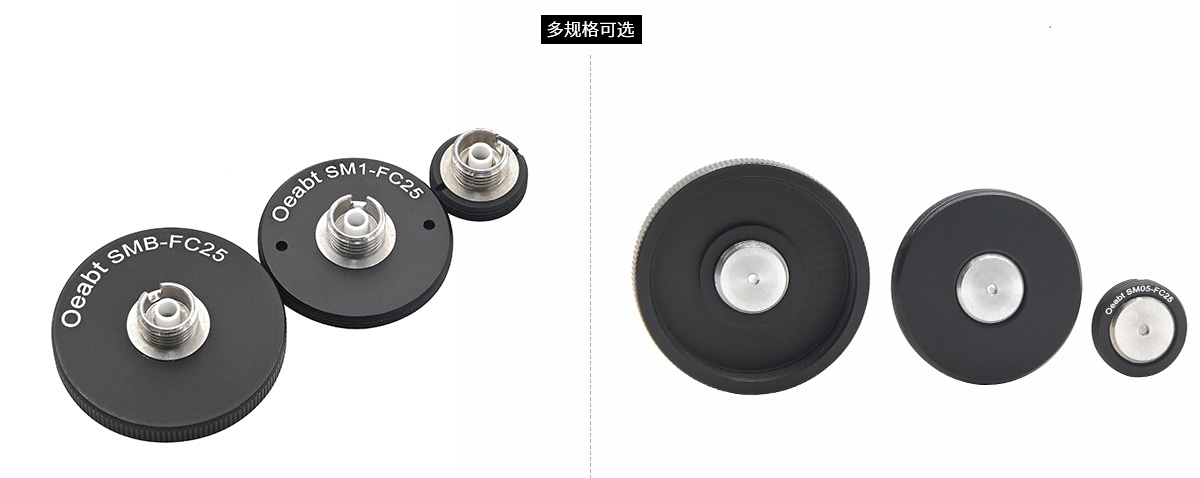

- Multiple specifications available: SM05-FC25, SM1-FC25, SMB-FC25.

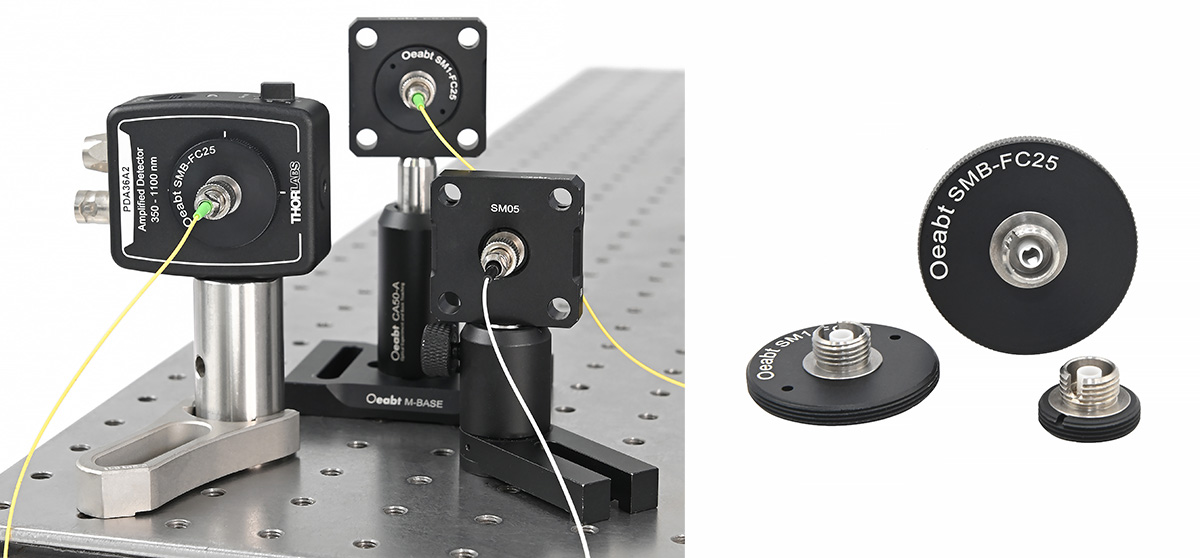

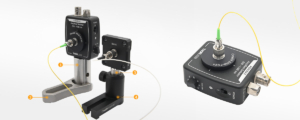

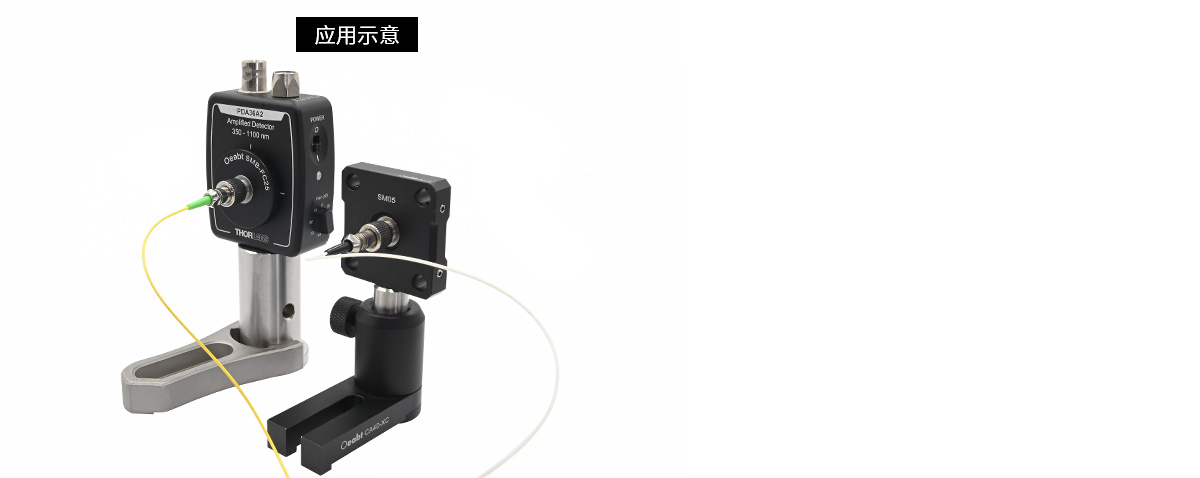

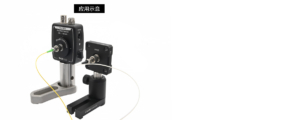

- Application Example

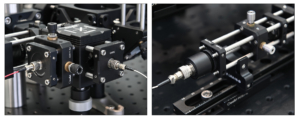

Assembly

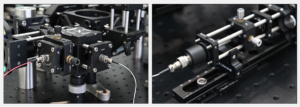

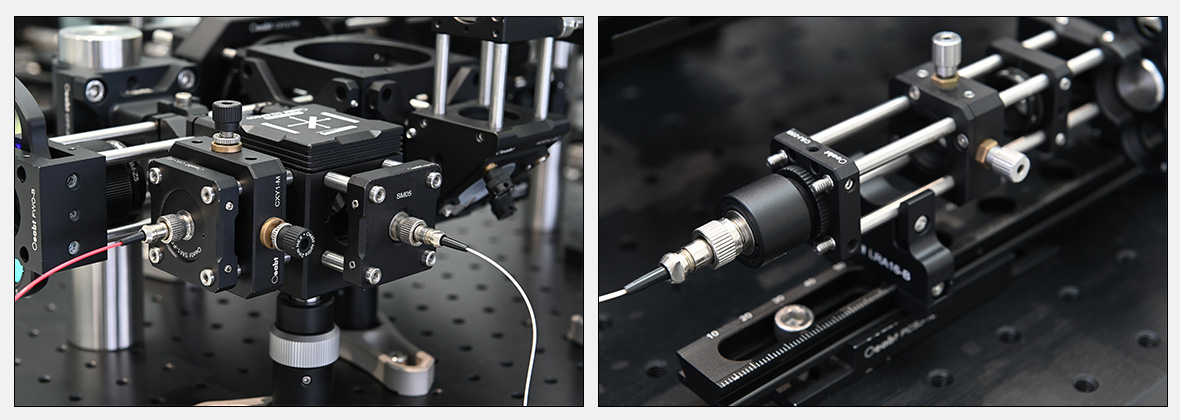

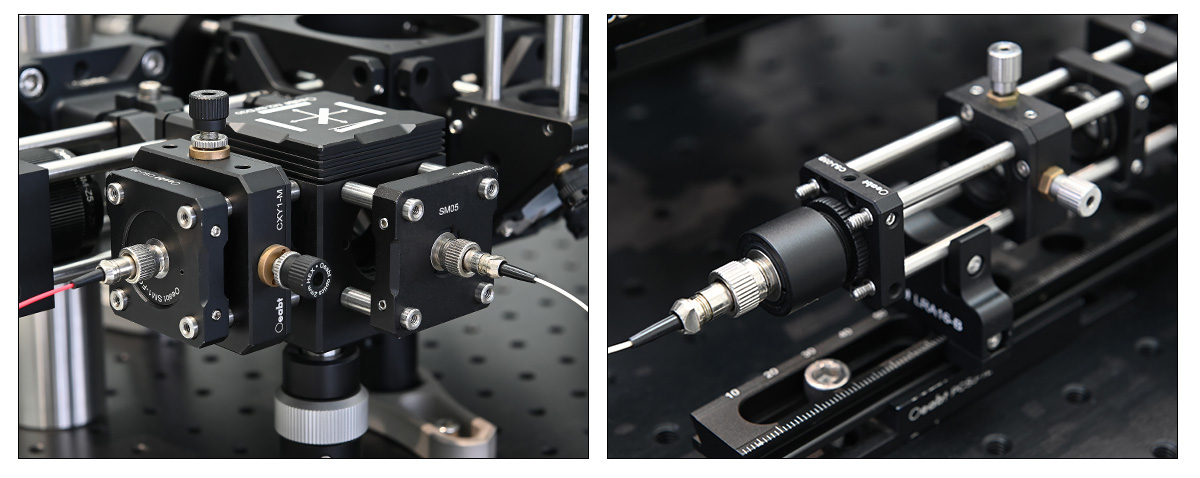

Application Examples
