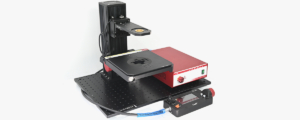

Product Description

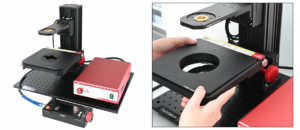

- Provides a complete set of motorized XYZ 3-axis microscopy base platform;
- Maximum lifting travel of 15mm with a positioning accuracy of ±5μm;
- Stage travel: 80mm (X-axis) * 80mm (Y-axis) with a positioning accuracy of ±5μm;

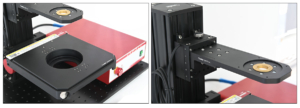

- Align the lifting slide mounting arm at the optical path 196.5mm from the edge of the main guide rail;

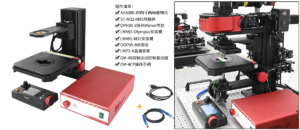

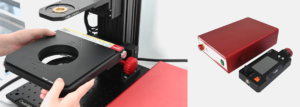

- Component list: AS8080-XY 4-inch XY Stage, LMTS-15G Motorized Focusing Stage, 4-axis (3+R) Motion Control System (OM-4X Driver & OM-4CP Operation Handle), OPH95-V Series 95mm Guide Rail, OOP95-MB Slider, LMP2-A Right-Angle Bracket, LMA95-M32 Mounting Arm, ST-M32-RMS Adapter, OPH95-LM1 Focusing Slide, LMA95-Olympus Mounting Arm;
- Sold as a complete set, excluding breadboards and optical platforms.
This 3-axis (XYZ) motorized microscopy operating system is a tailor-made solution for microscopy applications requiring precise sample positioning and automated control.
表格
| Model | Guide Rail Height | Stage Configuration |
| ECMP-350V | 350mm | Large-size stage, compatible with standard glass slides, large petri dishes and other samples |
| ECMP-400V | 400mm | — |
| ECMP-500V | 500mm | — |
| ECMP-600V | 600mm | — |
表格
| System Components | Specifications | ||
| Overall Platform | Axis System | Motorized XYZ 3-axis | |
| Objective Mount | RMS (0.8”-36) thread | ||
| Guide Rail Arm Axis | 196.5mm (measured from the guide rail edge) | ||
| Glass Slide Holder | Compatible with slides with width ＜26.4mm and length 53mm~75.8mm | ||
| Z-axis Focusing | LMTS-15G Motorized Focusing Stage | Lifting Travel | ±7.5mm |
| Maximum Load | 1.5kg (with mounting arm installed) | ||
| Maximum Vertical Speed | 1.2mm/s (joystick control) | ||
| Minimum Jog Speed | ≤1μm (handwheel control) | ||
| Minimum Resolution | ≤1μm (handwheel control) | ||
| Bidirectional Repeatability | ±2μm | ||
| Repeat Accuracy | ±5μm | ||
| Backlash | 0.01mm (gear clearance of stepping motor reducer) | ||
| Motor Type | Geared stepping motor, reduction ratio 5.2:1 | ||
| OPH95-LM1 Coarse Focus Slide | Lifting Travel | 23mm | |
| Focusing Mode | Coarse focusing | ||
| Maximum Load | 2kg | ||
| AS8080-XY Stage | Movement Range | 80mm (X-axis), 80mm (Y-axis) | |
| Maximum Load | 3.2kg | ||
| XY-axis Speed | Max *8: 13mm/s; Min *1: 1.625mm/s | ||
| Handwheel Minimum Resolution | ≤2μm | ||
| Repeat Accuracy | ±5μm | ||
| Axial Error | 0.02mm | ||
| Backlash | 0.01mm (gear clearance of stepping motor reducer) | ||
| Motor Type | 2-phase geared stepping motor, reduction ratio 5.2:1 | ||
| Recommended Driver/Controller | O’motion 4-axis Motion Control System |
Technical Description
(1) Integrates a high-precision stage, motorized focusing system, multi-axis motion controller and a full set of opto-mechanical components into a complete kit. The core of the system adopts the O’motion 4-axis (3+R) Motion Control System, which supports open-loop and semi-closed-loop control, providing users with a flexible operating experience from manual fine adjustment to fully automatic program control. It is an ideal microscopy operating platform for scientific research, industrial inspection and advanced education fields.
(2) The system is sold as a complete set, including all the mechanical and motorized components listed above, excluding optical platforms (breadboards) and the main optical components of microscopes (e.g., objectives, eyepieces, cameras, etc.). Users can match the corresponding optical components according to the specific microscopy type (upright/inverted). Out-of-the-box: All necessary hardware is provided as a complete set, eliminating the time-consuming complex model selection and integration process.

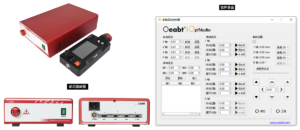

(3) The O’motion 4-axis (3+R) Motion Control System ranges from delicate handwheel fine-tuning to high-efficiency automatic program operation. Its standard interfaces and open communication protocols support functional expansion and personalized customization. In terms of control systems, the platform supports USB serial communication and is compatible with multiple operating systems including Windows, Linux, MacOS and Android. It adopts the standard ASCII O’motion communication protocol and is accompanied by complete development documents and sample programs, facilitating secondary development and system integration for users.

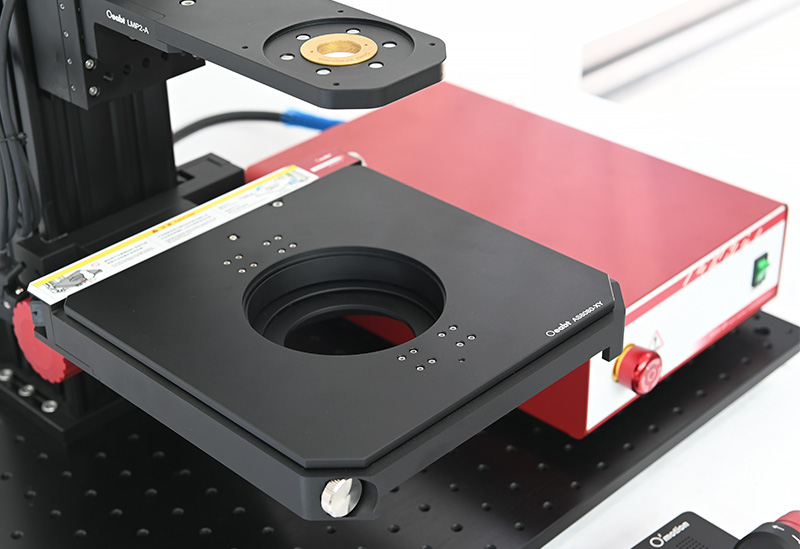

(4) The XY stage features a travel range of 80mm (X-axis) * 80mm (Y-axis). For standalone use, it needs to be matched with a 4-axis (3+R) control system or 2 × OSMC-1U single-axis stepping controllers. The Z-axis motorized focusing stage has a lifting travel of 15mm and requires an OSMC-1U single-axis stepping controller for standalone use.
