Description
Product Description
- Includes 1 modular sliding insert for mounting Ø1-inch optical components.
- Main body compatible with 30mm cage systems and SM1 series lens sleeves.
- Snap-in mechanism allows easy replacement of inserts.
- Filter inserts feature blank labels for marking optical components.
- 8-32 (M4) threaded holes on the bottom for rod installation.

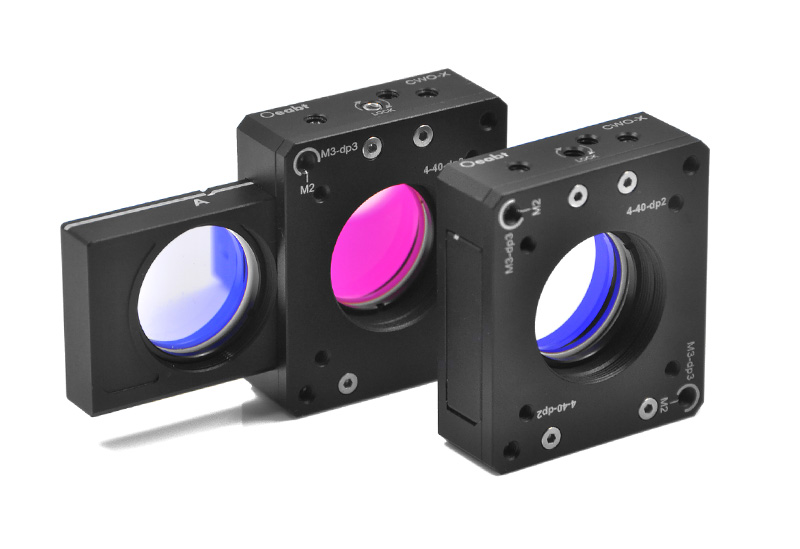

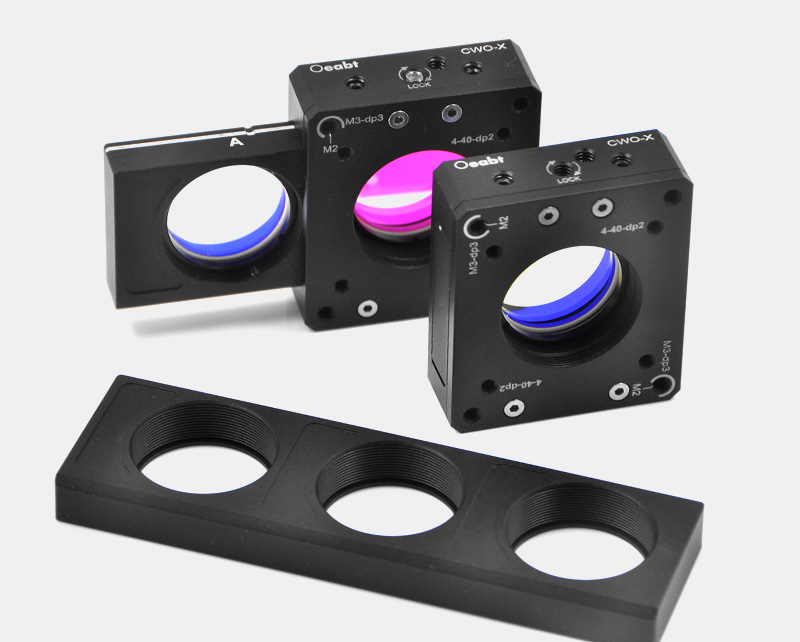

The CWO-X filter mount features a modular design, integrating sliding inserts with filters or polarizing optical components into our 30mm cage systems. Each CWO-X filter mount comes with 1 SM1-threaded insert, capable of mounting up to 2 Ø1-inch optical components. Additional SM1-threaded inserts can be purchased separately.
Technical Description

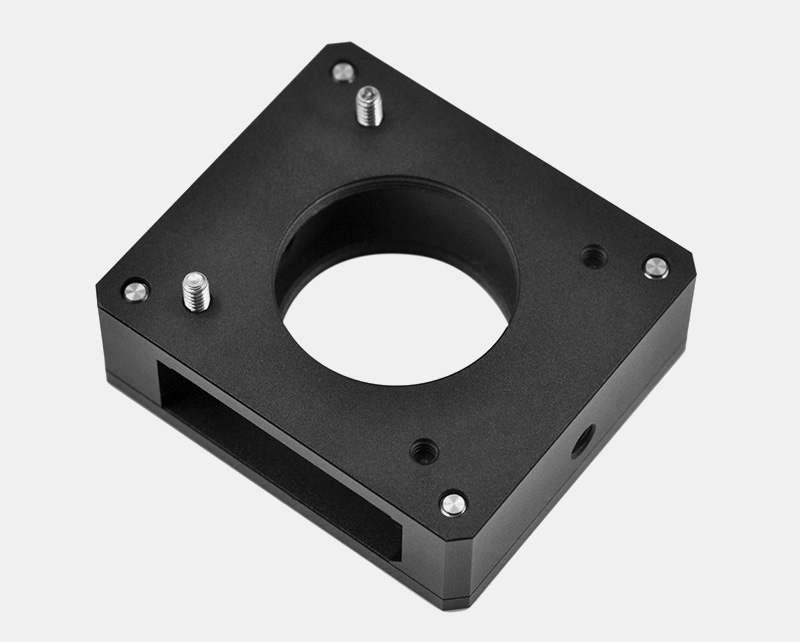

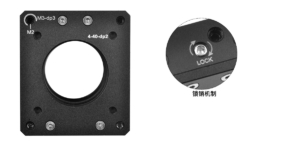

Main Body:The top of the CWO-X filter mount main body is equipped with a spring-loaded latch mechanism that aligns each filter with the mechanical axis of the cage system. A set screw on the top locks the position of the insert. The three surrounding screws fix the latch position and are non-adjustable. Multiple filter mounts can be stacked along the optical path (the filter mount includes 1 WO-X2 insert; additional inserts need to be purchased separately).

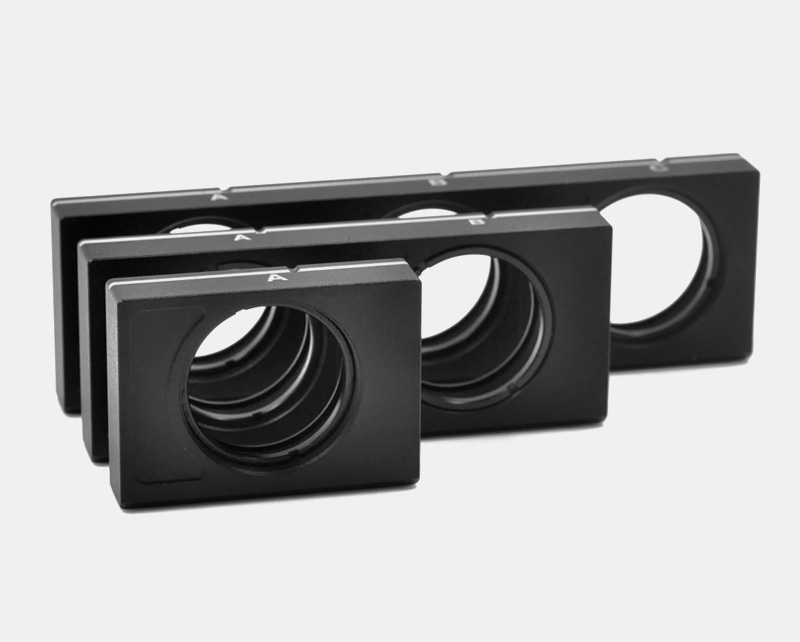

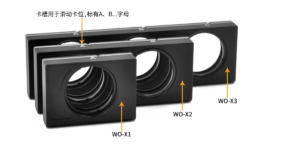

Filter Insert:The mounting hole of the WO-X filter insert can accommodate Ø1-inch optical components up to 5mm thick. Each insert hole has SM1 threads and a lip groove on the edge, allowing optical components to be installed using the included retaining ring. Each filter insert is equipped with a blank label for marking optical components. (Each mounting hole includes 1 CSK3 retaining ring and 1 DS1 washer; additional rings and washers need to be purchased separately.)

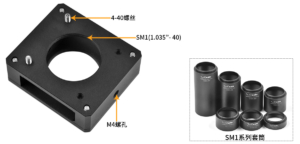

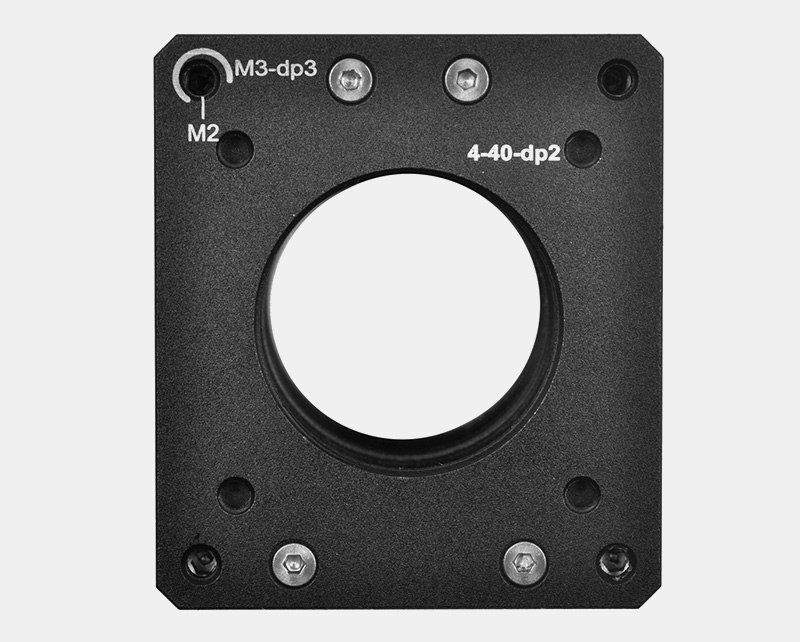

The main body panel is equipped with SM1 (1.035”-40) internal threads for compatibility with SM1 series lens sleeves. The 4-40 threaded holes on the panel are used for installing M6 cage rods (8 4-40 screws included).
The mount can be used in combination with our lens sleeves and coaxial cage systems, or directly configured in free-space setups—mounted on rods or directly on optical platforms.

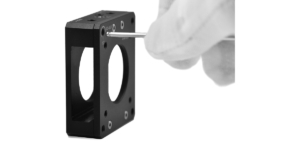

The main body panel is equipped with 4 hidden screws. Using the included Ø2mm screws, multiple filter mounts can be stacked consecutively.Installation Method:When stacking multiple filter mounts, push out the hidden screws from the hidden screw holes at the four corners of the main body panel inward with a 2mm hex wrench, then tighten them by turning clockwise. To disassemble the main body, use a hex wrench (no inward thrust required) to unscrew counterclockwise (a slight unlocking sound will be heard).
(6) The main body of the filter mount comes with a WO-X2 insert; additional inserts need to be purchased separately.
Assembly

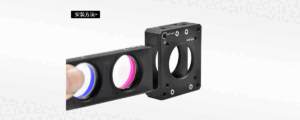

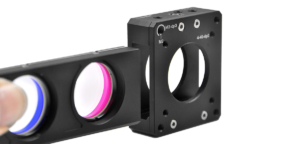

Manual Installation
Main Body Mounting Method:

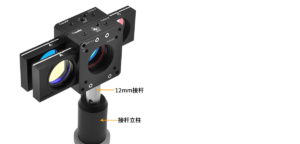

Application Diagram

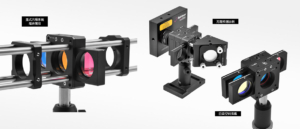

Application Example
Oeabt offers a variety of manual filter mounts for Ø1-inch circular filters. These mounts can be used in combination with our lens sleeves and coaxial cage systems, mounted on rods, or directly on optical platforms.
Engineering Drawing Download
