Product Description
Adapter mounting arm with male dovetail head: Ø106.9mm, α=60°; suitable for any Olympus U-SV series XY translation stage; can be directly mounted on OPH95-LM series guide rail lifting slide kits for use.
These custom microscope system accessories extend the versatility of Oeabt series sleeves and cage products to microscopic imaging systems.
Lifting Slide Mounting Arm
| Specification | LMA95-Olympus |
|---|---|
| Dimension | 204.2×110.0×19.9mm |
| Dovetail Type | Male: Ø106.9mm, α=60° |
| Clear Aperture | Ø67.0mm |
| Arm Shaft Length | 6×countersunk M4 holes, 22.9mm spacing |
| Weight | 346.9g |
Objective Turret Adapter Plate
| Specification | OTAP1 | OTAP2 |
|---|---|---|
| Dimension | 51.5×40×9mm | 51.0×46.0×12mm |
| Dovetail Type | Female groove: 31.2×37.8mm, α=50° | Female groove: 40.8×48.5mm, α=50° |
| Cage Rod Mount | 4×Ø6.02mm holes, 30mm spacing | 4×4-40 holes, 30mm spacing |
| Weight | 23.3g | 39.1g |
| Thread Type | SM1 (1.035”-40) internal thread | SM1 (1.035”-40) internal thread |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Trinocular Head Adapter
| Specification | TAD2 | TASM2 |
|---|---|---|
| Dimension | Ø80.0×15.3mm | Ø56.0×20.3mm |
| Dovetail Type | Male: Ø51mm, α=60° | / |
| Thread Type | SM1 (1.035”-40) internal thread | SM2 (2.035”-40) external thread |
| Weight | 92.5g | 33.1g |
| Eyepiece Dovetail Interface | Female groove: Ø39mm, α=50° | Female groove: Ø39mm, α=50° |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Camera Lens Mounting Arm
| Specification | CLMA40-A | CLMA40-B | CLMA50 |
|---|---|---|---|
| Dimension | 100.0×63.6×76.2mm | 130.0×63.6×76.2mm | 143.6×63.6×76.2mm |
| Mounting Aperture | Ø39.8mm | Ø39.8mm | Ø50mm |
| Arm Shaft Length | 75mm | 105mm | 113.6mm |
| Weight | 293.5g | 371.1g | 435.2g |
| Thread Type | 6×countersunk M6 holes | 6×countersunk M6 holes | 6×countersunk M6 holes |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Corrugated Light Shielding Tube
| Specification | CBH1 | CBH2 |
|---|---|---|
| Dimension | Ø39×85mm | Ø62×72mm |
| Clear Aperture | Ø22mm | Ø50mm |
| Weight | 34.6g | 46.1g |
| Material | PTFE (Teflon) | PTFE (Teflon) |
Technical Description

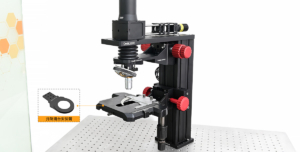

(1) The LMA95-Olympus lifting slide mounting arm is assembled on 95mm guide rail lifting focus slides for use, enabling the compatibility of Olympus U-SV series translation stages and sample holders with the microscope main body. The mounting arm is aligned at the optical path 196.5mm from the edge of the main body guide rail.
| Model | Dovetail Type | Compatibility |
|---|---|---|
| LMA95-Olympus | Male: Ø106.9mm, α=60° | Olympus, Thorlabs Cerna |

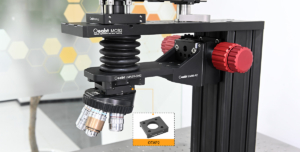

(2) Objective turret adapters are mainly used for connecting and fixing the objective turret to self-constructed microscope main bodies, and are compatible with objective turrets produced by Olympus (e.g., U-6RE, U-5RE-2) or other manufacturers. SM1 threads and 4-40 screw holes for mounting cage rods are drilled to enable extended installation of Oeabt series sleeves and cage products.
| Model | Dovetail Type | Compatibility |
|---|---|---|
| OTAP1 | Female groove: 31.2×37.8mm, α=60° | Olympus, some manufacturers |
| OTAP2 | Female groove: 40.8×48.5mm, α=60° | / |
(3) Trinocular head adapters make self-constructed optical systems compatible with trinocular heads produced by Sunny or other manufacturers, expanding the application range of microscope systems. By using SM series sleeves and cage components, the trinocular head adapters allow users to add or replace different optical components on the basis of the original microscope, thus realizing modular expansion of the system.
| Model | Eyepiece Dovetail Interface | Dovetail/Thread Type | Compatibility |
|---|---|---|---|
| TAD2 | Female groove: Ø39mm, α=50° | Male: Ø51mm, α=60°; SM1 internal thread | Sunny, some manufacturers |
| TASM2 | / | SM2 external thread | / |

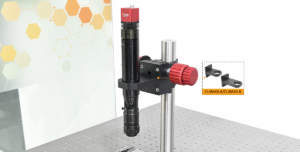

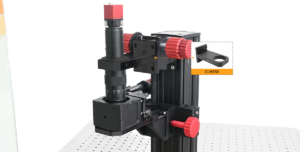

(4) The adapter plate design at the rear end of the camera lens mounting arm allows camera lenses to be mounted on Ø1.5-inch connecting rods or 66mm/95mm guide rail main bodies, enabling camera lenses to adapt to the configuration of various custom microscope systems. Two types of mounting apertures and multiple arm shaft lengths are available to meet the diverse needs of users and the compatibility of existing equipment.
| Model | Mounting Aperture | Arm Shaft Length |
|---|---|---|
| CLMA40-A | Ø39.8mm | 75mm |
| CLMA40-B | Ø39.8mm | 105mm |
| CLMA50 | Ø50.0mm | 113.6mm |

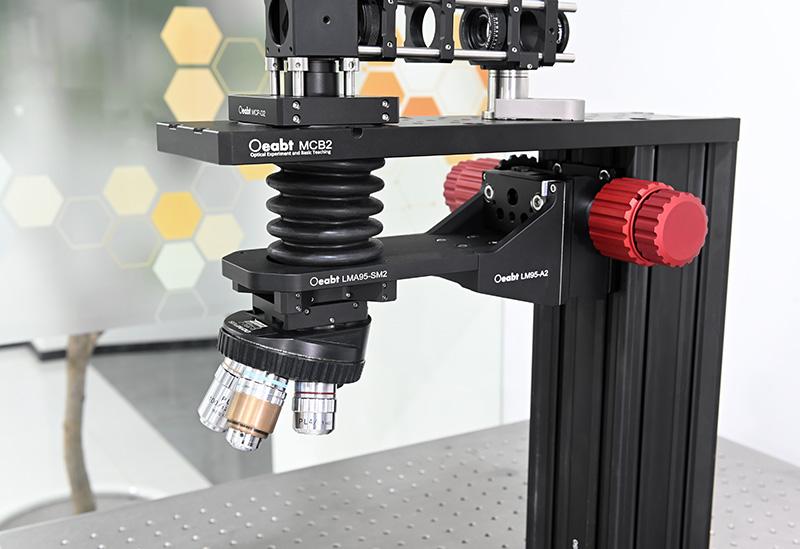

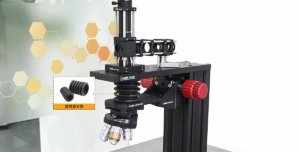

(5) Corrugated tubes are used to seal the gaps between the optical paths of Ø1-inch/Ø2-inch lens sleeve systems or microscope systems, forming a light-tight optical path. The excellent performance of PTFE ensures that the clear aperture of the lens sleeve system will not be reduced when the corrugated tubes are compressed or stretched.
| Model | Compatible System |
|---|---|
| CBH1 | Ø1-inch sleeve or 30mm cage system |
| CBH2 | Ø2-inch sleeve or 60mm cage system |
Assembly

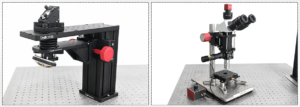

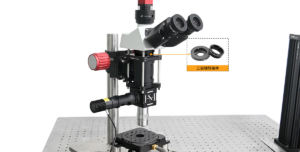

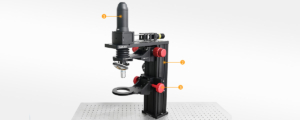

Application Examples
