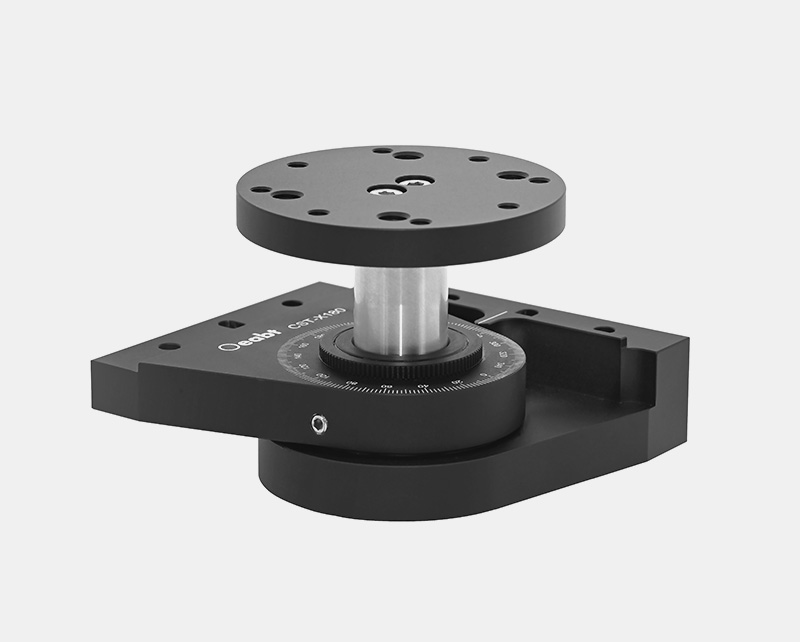

CST-X180 Rotation Mount

Description

Product Description

• 360° rotating mounting platform with laser-etched scales, 2° indexing.
• ±90° angular displacement between the two support platforms.
• Independently lockable mounting support plates.
• Vertical height adjustment range of 23.8mm.
• Multi-screw hole array on the tabletop for easy component installation.

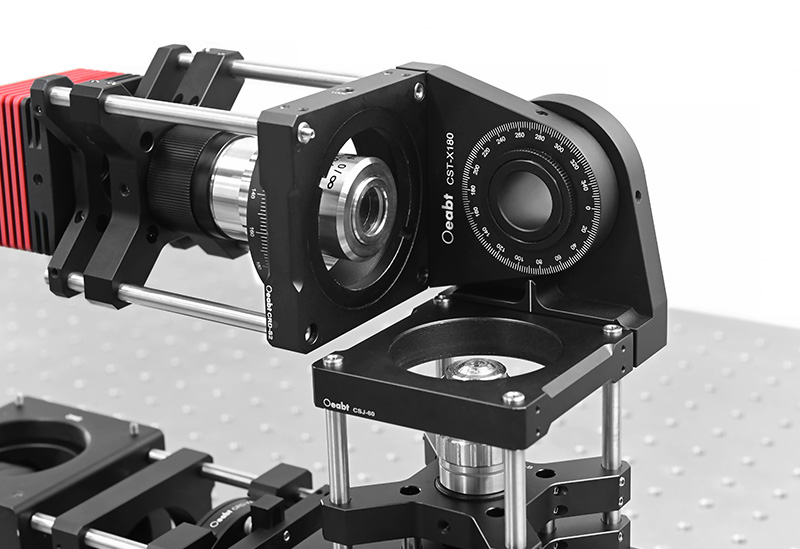

The rotation mount is an ideal choice for building spectrometers that require arbitrary angle adjustment, or other prism and grating-based systems. The two mounting supports can rotate ±90° relative to each other, and can be used with cage plates for integration into cage systems.

Technical Description

The rotation mount is an ideal choice for building spectrometers that require arbitrary angle adjustment, or other prism and grating-based systems. The two mounting supports can rotate ±90° relative to each other, and can be used with cage plates for integration into cage systems.

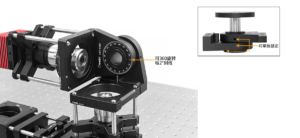

The base plate is laser-etched with 360° scales, increasing by 2° each to assist alignment. In addition, the mounting plate can be independently locked.

The tabletop of the mounting plate is equipped with a series of threaded holes, making it easy to install various optical components, such as using pressure arms to clamp and mount prisms and gratings. After locking the position of the base support, the optical components mounted on its tabletop can rotate freely 360° and have a vertical height adjustment of 23.8mm.

The mounting platform and the rod can be freely assembled and disassembled. The bottom of the rod is also equipped with an M6 screw hole, which can be installed on a translation stage or other adjustment mounts for use in free-space experiments

.

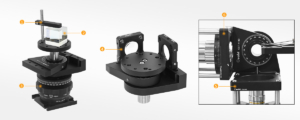

Assembly

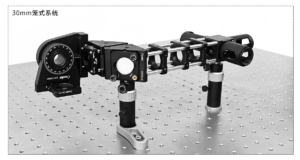

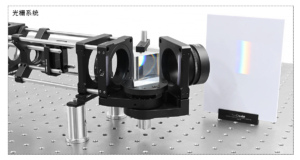

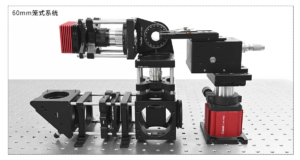

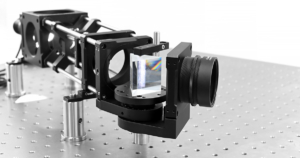

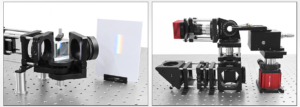

Application Example
