Product Description

Threaded adapters for connecting lens tubes to other opto-mechanical components
Adapters feature SM1 (1.035″-40) and SM2 (2.035″-40) threads
Enables optimization of the position and angle of components attached to it

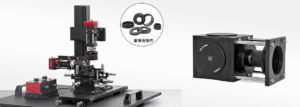

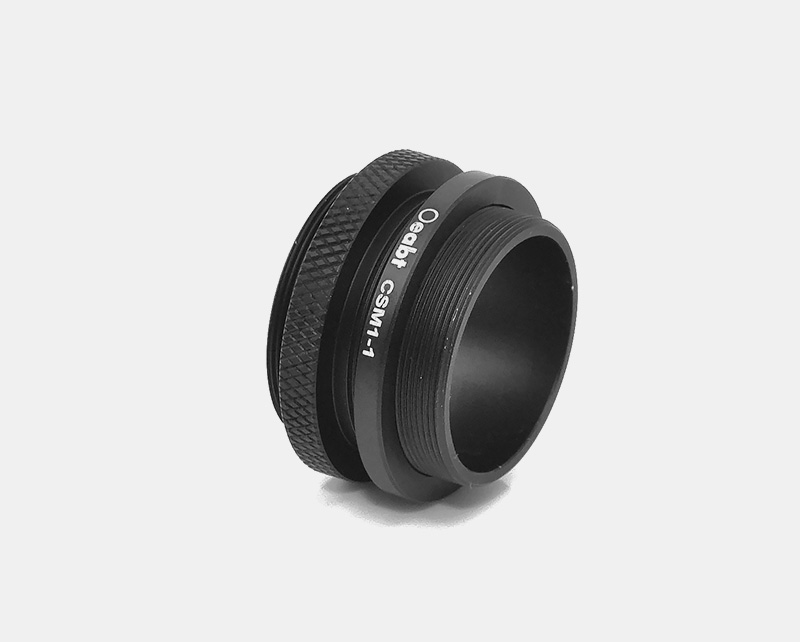

CSM series adapters come with lock rings to secure the attached components after adjustment

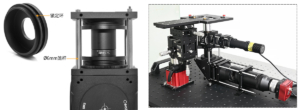

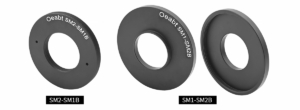

SM1-SM2B and SM2-SM1B are suitable for compact installations and are supplied without lock rings

The external threads of the lens tube adapters are designed for connection between SM1 or SM2 internally threaded components.

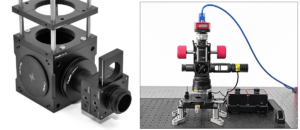

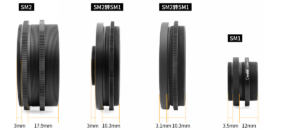

Model	Specification	Thread Type	Thread Type	Weight
CSM1-1-12	Ø31.7*19.4mm	External SM1, L=3.5mm	External SM1, L=12mm	10.0g
CSM2-1	Ø56.0*18.0mm	External SM2, L=3mm	External SM1, L=10.3mm	25.0g
CSM2-1B	Ø56.0*14.8mm	External SM2, L=10.3mm	Internal SM1, L=3.1mm	30.0g
CSM2-2	Ø56.0*23.9mm	External SM2, L=3mm	Internal SM2, L=17.9mm	29.5g
SM1-SM2B	Ø55.9*7.4mm	External SM1, L=3mm	Internal SM2, L=2.5mm	7.1g
SM2-SM1B	Ø51.7*5.1mm	External SM2, L=5.1mm	Internal SM1, L=5.1mm	28.3g

Technical Features

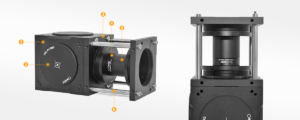

(1) The threaded design of the lens tube adapters allows connection between SM1 or SM2 male and female threaded components, such as tube-to-tube connections, tube-to-cage plate connections, tube-to-camera connections, etc.

(2) Each CSM series adapter is supplied with one lock ring, which secures the attached components after adjustment, thereby limiting the external thread engagement depth of any SM1/SM2 threaded component. It enables optimization of the position and angle of components attached to others when your two components have a preferred relative orientation.

(3) SM1-SM2B and SM2-SM1B are not equipped with lock rings, and their thin and short thread lengths make them ideal for compact tube connection assemblies with slender tube bodies.
