Product Description

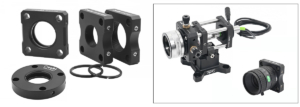

- Enables direct mounting of optical components in 30mm cage system assemblies;
- Features standard SM1 threads (1.035″-40) for Ø1 inch optical elements;
- Available with standard SM1, C-Mount or RMS threads;
- The CSJ-30/CSJ-R30 models come with 2 retaining rings for mounting Ø1 inch optical elements;
- Rods can be mounted via M4 threaded holes.

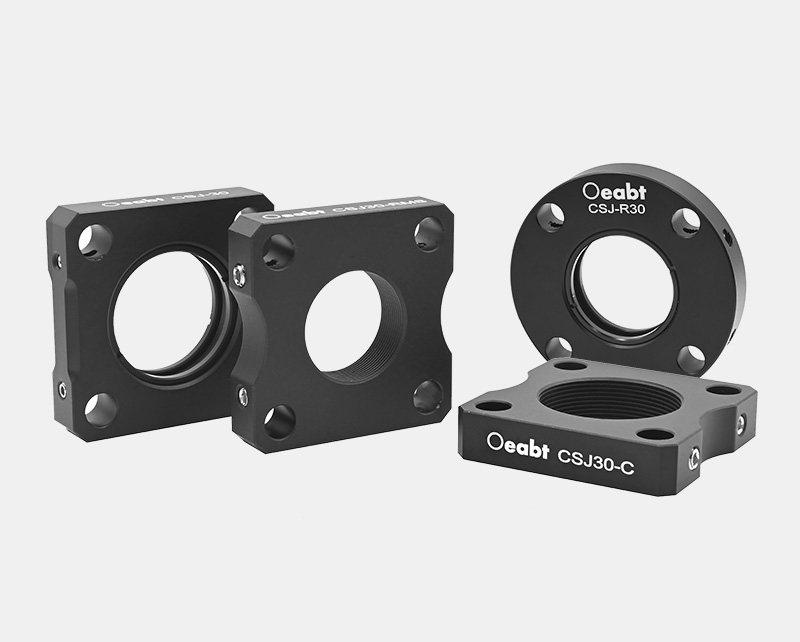

Cage plates are the basic building blocks for constructing cage systems. The center of a cage plate is typically equipped with a threaded or smooth hole, which is used for mounting optical elements or lens sleeves.
| Model | CSJ-30 | CSJ30-RMS | CSJ-C | CSJ-R30 |
| Central Aperture Thread | SM1 (1.035″-40) | RMS (0.800″-36) | 1.00″-32UNF (C-Mount) | SM1 (1.035″-40) |
| Threaded Hole Type | 1×M4 | 1×M4 | 1×M4 | None |
| Through Hole Spacing | Ø6.02mm, 30×30mm spacing | Ø6.02mm, 30×30mm spacing | Ø6.02mm, 30×30mm spacing | Ø6.02mm, 30×30mm spacing |
| Specification | 41.0×41.0×8.9mm | 41.0×41.0×8.9mm | 41.0×41.0×8.9mm | 41.0×41.0×8.9mm |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
| Weight | 24.7g | 27.4g | 23.0g | 34.2g |
Technical Description

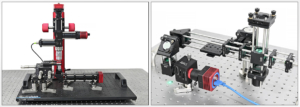

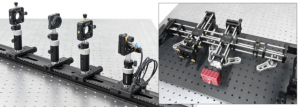

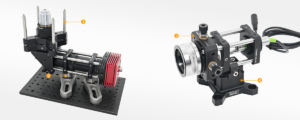

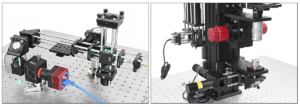

(1) A cage system consists of a variety of precision-machined building blocks, facilitating the flexible construction of large opto-mechanical systems and achieving accurate alignment. Cage plates serve as the fundamental building blocks of cage systems, with a threaded or smooth hole at the center for mounting optical elements or lens sleeves.
(2) The SM1 (1.035″-40) threaded hole at the center of the CSJ-30 and CSJ-R30 cage plates is compatible with Ø1 inch lens sleeves. Comes with 2 SM1 retaining rings, allowing direct mounting of Ø1 inch optical elements with a maximum thickness of 4.7mm. The CSJ30-C can be mated with camera lens assemblies with external C-Mount threads, and the CSJ30-RMS can integrate RMS-threaded components such as microscope objectives into 30mm cage systems.

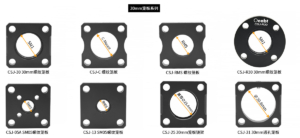

| CSJ-30 | CSJ30-RMS | CSJ-C | CSJ-R30 |
| SM1 (1.035″-40) | RMS (0.800″-36) | 1.00″-32UNF (C-Mount) | SM1 (1.035″-40) |

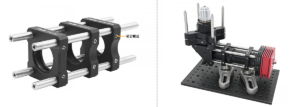

(3) A setscrew is located on the side of the through hole for fixing cage rods, which can be tightened with a 1.6mm/2.0mm hex wrench. In addition, Ø12mm stainless steel rods can be mounted through the M4 threaded hole at the bottom.
