Description
Product Description

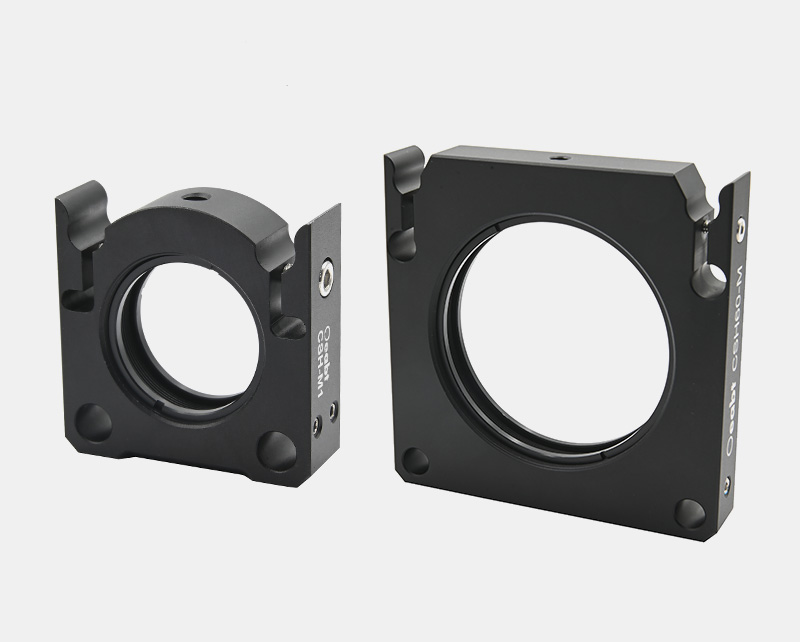

- Flexible lock design for a fully detachable cage plate assembly
- Compatible with Ø6mm cage rods
- CSH-M1 compatible with 30mm cage systems; CSH60-M compatible with 60mm cage systems
- 2 retaining rings included
- M4 threaded holes at the bottom for easy connecting rod installation
Enables quick disassembly and replacement of an entire section of a cage system (including components and corresponding cage rods) as an independent module without affecting other system components.
| Model | CSH-M1 | CSH60-M |
| Specifications | 40.640.612.7mm | 71.171.112.7mm |
| Central Aperture | SM1 (1.035”-40) | SM2 (2.035”-40) |
| Compatible Cage System | 4 positions of Ø6.02mm, 30mm spacing | 4 positions of Ø6.02mm, 60mm spacing |
| Weight | 30.0g | 95.2g |
| Threaded Hole Type | 2 positions of M4 | 2 positions of M4 |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) Different from through-type cage plates, this cage plate features a flexible cam lock design that allows direct removal from the direction perpendicular to the cage rods, thereby releasing all cage rods at this position and the components mounted on them to form an independently operable “cage section” module. Users can pre-align optical components on another identical cage section and realize quick replacement without disassembling the entire optical path.
(2) The CSH-M1 is equipped with SM1 female thread at the center and compatible with 30mm cage systems; the CSH60-M is equipped with SM2 female thread at the center, compatible with 60mm cage systems and PCM series Ø6mm cage rods.
(3) Both models come with 2 fixing retaining rings for mounting optical components. M4 threaded holes are provided on the top and bottom of the cage plates for mounting on Ø1/2-inch connecting rods.
(4) Multi-experiment configuration: Prepare multiple pre-configured optical path modules for the same experimental platform to improve efficiency.

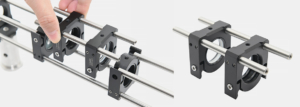

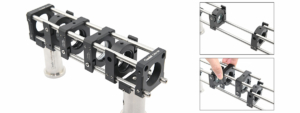

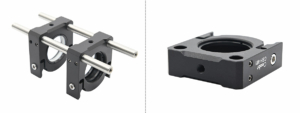

Assembly

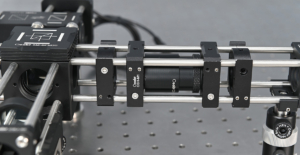

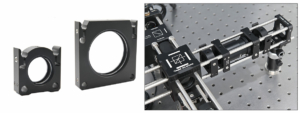

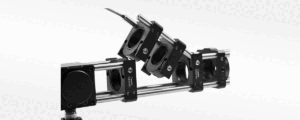

Application Examples
