Description
Product Description
- Easy and convenient operation of optical components without disassembly.
- 360° rotatable dustproof sliding cover for optical component protection.
- Compatible with SM1 (1.035”-40) threaded components.

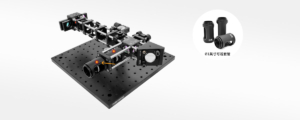

The lens sleeve is ideal for building compact optical systems with light-shielding light paths. The CSA-V series sleeves feature two openings, enabling simple and rapid construction of complex optical assemblies. Optical components can be adjusted without disassembly, providing flexibility for complex optomechanical setups.
表格
| CSA-V Series Ø1-inch Viewable Lens Sleeve | CSA-V Series Ø1-inch Viewable Lens Sleeve |
| Model | Specifications |

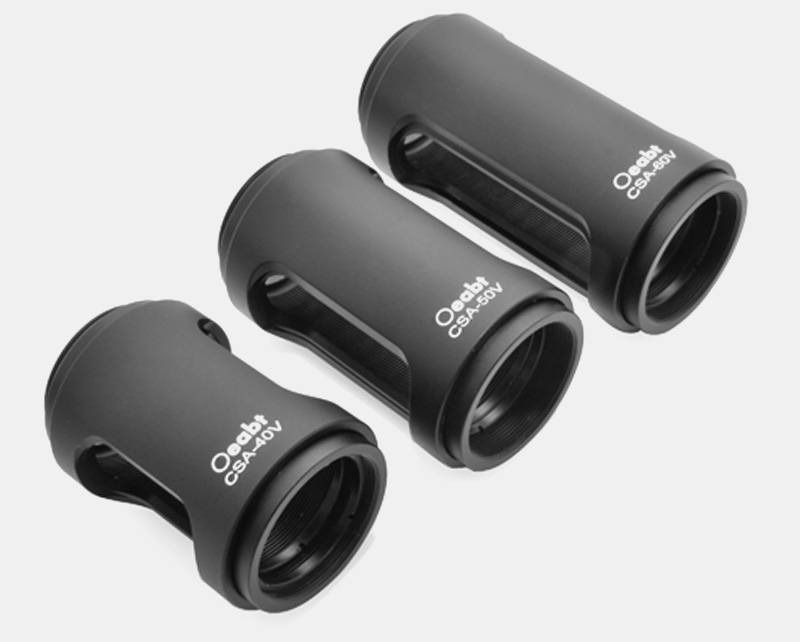

| CSA-40V | Dimensions: Ø34.3*50.1mm; Thread: SM1 (1.035”-40), internal thread depth: 46.35mm; Weight: 33.9g |
| CSA-50V | Dimensions: Ø34.3*60.1mm; Thread: SM1 (1.035”-40), internal thread depth: 56.35mm; Weight: 39.4g |
| CSA-60V | Dimensions: Ø34.3*70.1mm; Thread: SM1 (1.035”-40), internal thread depth: 66.35mm; Weight: 44.5g |
Technical Description

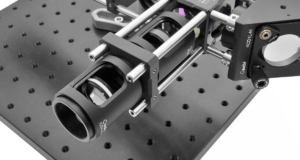

- The lens sleeve is well-suited for compact, light-shielded optical systems. With two side openings, the CSA-V series allows fast, simple assembly of complex setups and adjustment of optical elements without disassembly. Mount the optical component to the desired depth using the supplied 2 CSK3 retaining rings, then secure it with the second ring.

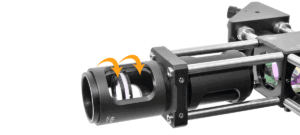

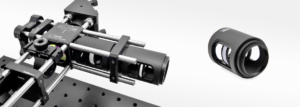

- The lens sleeve includes a 360° rotatable sliding cover fitted over the slotted opening, blocking stray light and preventing dust and contamination. Optical elements can be manually adjusted through the side opening without a retaining ring spanner.

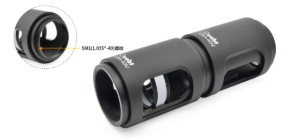

- One end of the sleeve has a 3mm external thread for direct stacking connection between sleeves. It also directly connects to SM1 (1.035”-40) threaded components, offering great flexibility for complex optomechanical assemblies.
