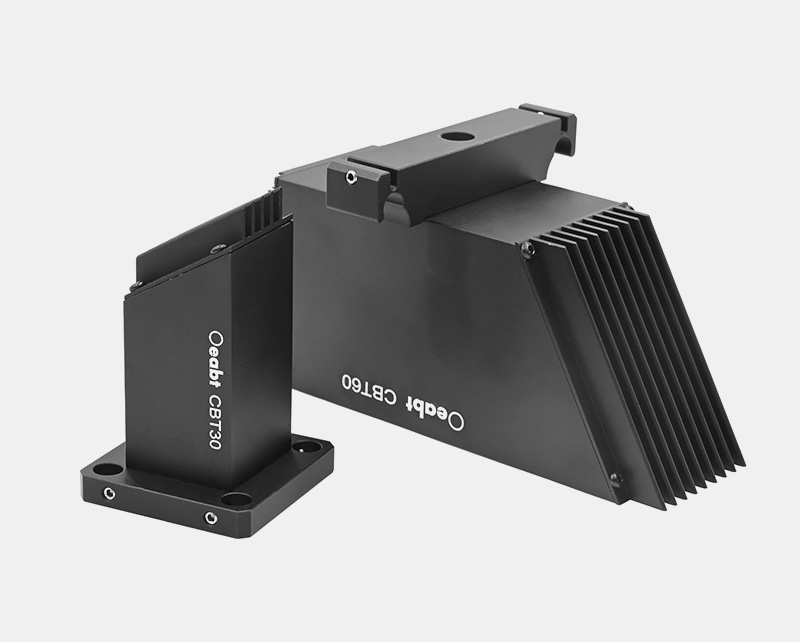

Name: CBT Series Cage System Beam Trap
SKU: 29870
Availability: InStock

Description

Product Description

Scatters and absorbs laser beam energy
Laser safety device reduces the risk of laser damage
Suitable for beams up to 80 W or 30 mJ/cm²
SM05 (0.535″-40) internal thread
Compatible with 30 mm and 60 mm cage systems

The cage system beam trap is a commonly used laser safety device in laboratories, typically used as the terminal component of an optical system. It is designed for continuous-wave (CW) laser beams up to 80 W.

Specification	Value
Wavelength Range	200 nm – 3 μm
Laser Type	Continuous Wave (CW)
Absorption Material	Aluminum Alloy
Input Aperture	Ø11 mm
Max Average Power	80 W (Housing temperature exceeds 100℃ when input power > 40 W)
Max Average Power Density	150 W/cm²
Max Energy Density	30 mJ/cm²
Scatter	2×10⁻⁴ @ 633 nm
Max Acceptance Angle	±5°
Thread Type	1×M4

Model	CBT30	CBT60
Dimensions	64.1×40.0×40.0 mm	107.8×70.6×62.8 mm
Cage Compatibility	4×Ø6.02 mm, 30 mm spacing	4×4-40, 30 mm spacing; Snap-in clamp compatible with 60 mm
Weight	58.7 g	200.5 g

Technical Description

(1) The cage system beam trap is a standard laser safety device in laboratories, usually used as the end component of an optical system. It handles continuous-wave (CW) laser beams up to 80 W. Simply align the beam to enter the SM05-threaded input aperture directly. It is compatible with Ø1/2-inch sleeves for beam path shielding and works with 30/60 mm cage systems.

(2) The CBT30 model can be directly inserted into a 30 mm cage system. The CBT60 model attaches to any two adjacent cage rods in a 60 mm cage system via a bend clamp and locks in position by tightening the screw.

(3) An M4 threaded hole on the bottom of the beam trap allows post mounting for use in free-space systems.

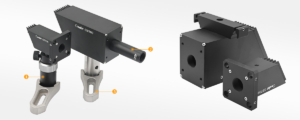

Assembly

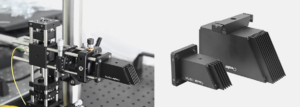

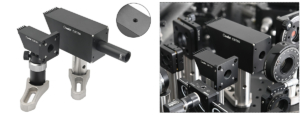

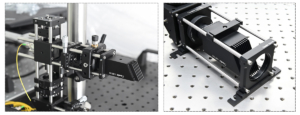

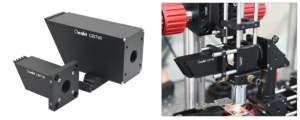

Application Examples

Engineering Drawings

CBT60 Engineering Drawing

Additional information

Weight	N/A
Dimensions	N/A
Model	CBT30, CBT60
