Description

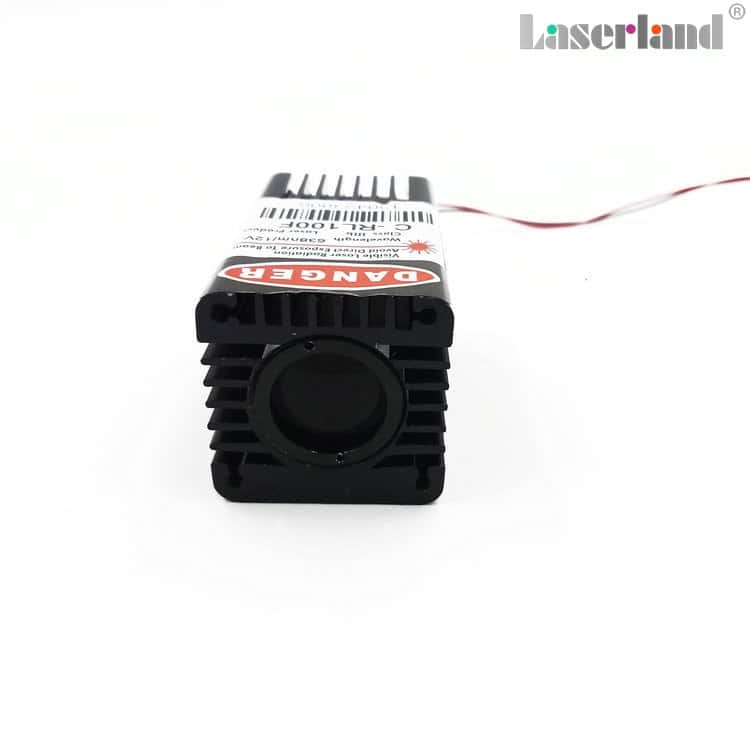

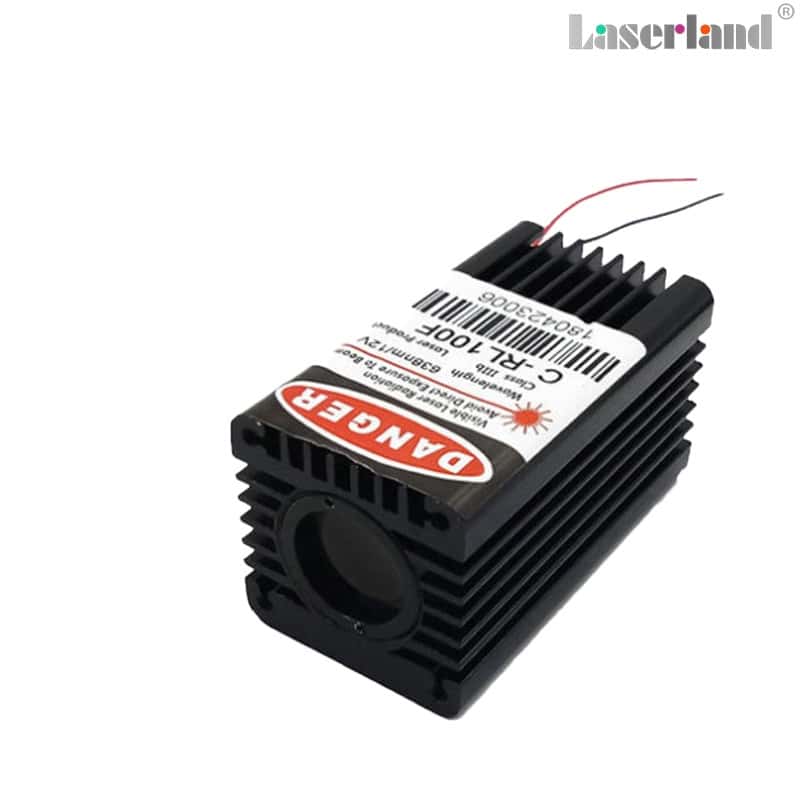

650nm Laser Module 100mW Laser Head Fat Beam Red Laser
（1）Laser wavelength：650nm
（2）Output power：≥ 100mW
（3）Output stability：± 5%
（4）Safety level：Class 4
（5）Spot shape：Round spot

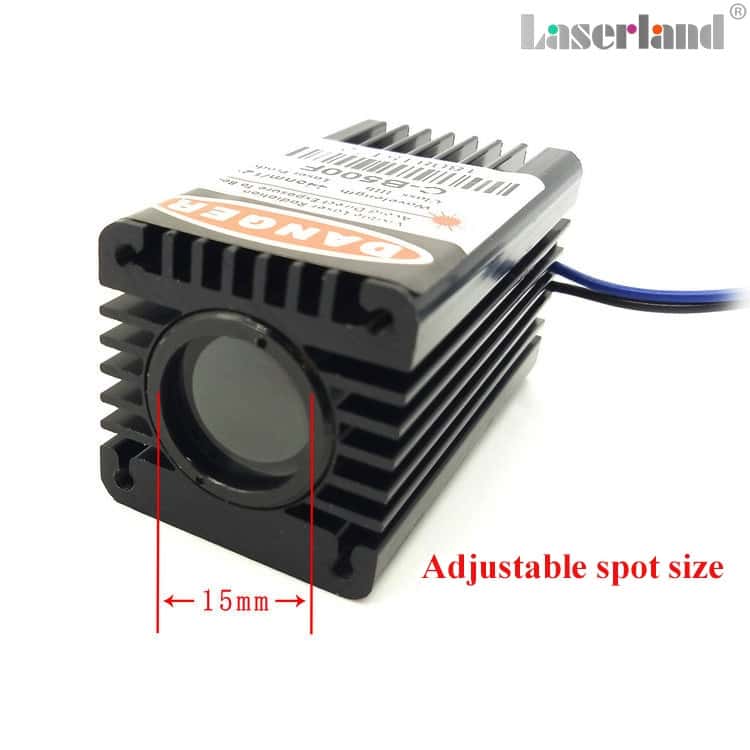

（6）Spot size：φ16mm
（7）Divergence angle：≤ 2mrad
（8）Power board input voltage：DC 12V
（9）LD input voltage：3.3V
（10）LD input current：0.2A
（11）Power consumption：0.6W
（12）Wire length：250mm
（13）Ambient temperature：-10 ~ 40℃
（14）Product size：30 * 30 * 45mm
（15）Product weight：63g
（16）Service life：≥ 8000 hours
