650nm 200mW CW 300mW Pulse 5.6mm Red Laser Diode LD LPC826
650nm 200mW CW 300mW Pulse 5.6mm Red Laser Diode LD LPC826
$9.50
Description
Product Description
Wavelength: 650nm
Operating Current: <340mA
Threshold Current: 75-85mA
Slope Efficiency: 0.97 mW/mA
Operating Voltage: 2.2-3.0V
Maximum Operating Temperature: 75°C
Package: TO18 Open (5.6mm)
Threshold Current: 75-85mA
Slope Efficiency: 0.97 mW/mA
Operating Voltage: 2.2-3.0V
Maximum Operating Temperature: 75°C
Package: TO18 Open (5.6mm)
1. Only for professionals.
2. Warranty: There is no warranty because laser diode is consuming material (Please do not buy if you mind.)
The laser diode is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or test. and Don’t operate when the power is connected.
Do not touch the ld by your hands directly. Please use anti-static wrist strap.
2. Warranty: There is no warranty because laser diode is consuming material (Please do not buy if you mind.)
The laser diode is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or test. and Don’t operate when the power is connected.
Do not touch the ld by your hands directly. Please use anti-static wrist strap.

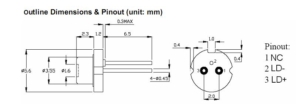

Datasheet:
Additional information
| Model | 520nm 30mW 3.8mm No PD (New), 520nm 35mW 5.6mm No PD (New), 520nm 35mW 5.6mm No PD (Used Laser Diode), 520nm 35mW 5.6mm With PD (New), 520nm 50mW 5.6mm With PD (New), 520nm 50-80mW 3.8mm No PD (New), 520nm 110mW 5.6mm With PD (New), 520nm 110mW 3.8mm No PD (New), 520nm 140mW 3.8mm No PD (New) |
|---|
