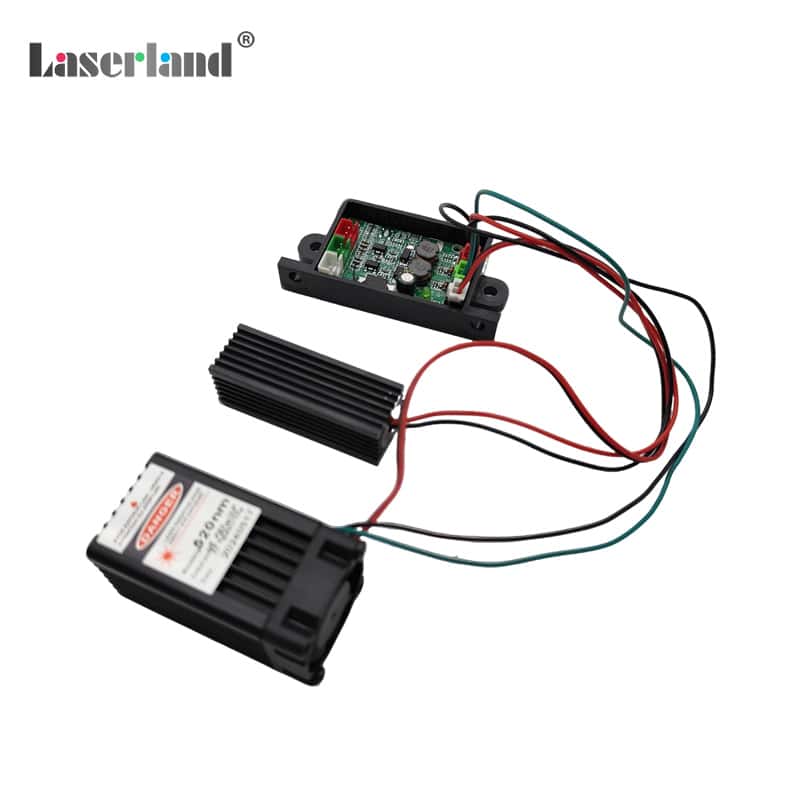

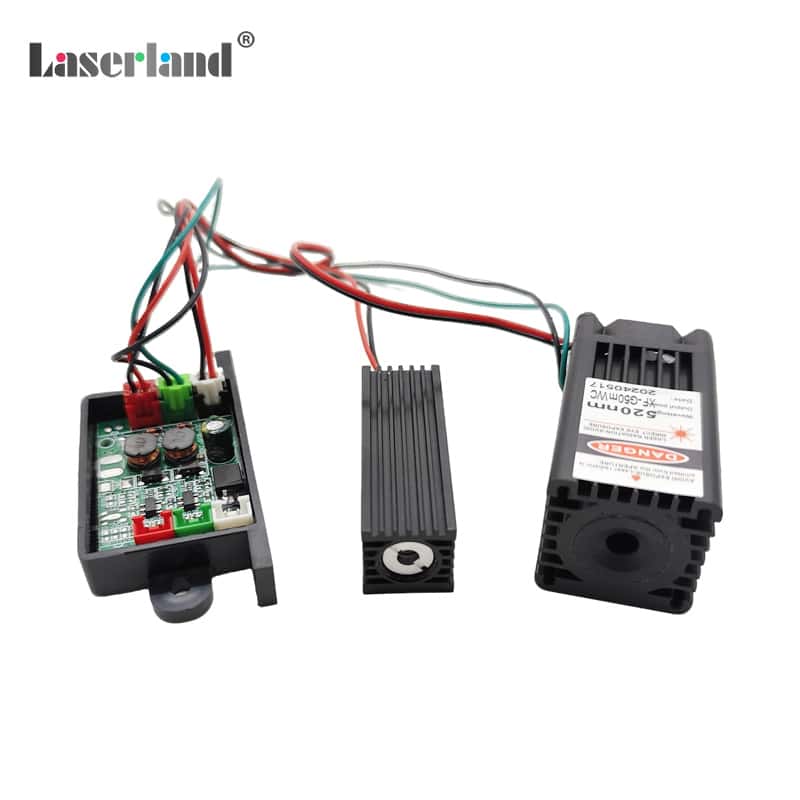

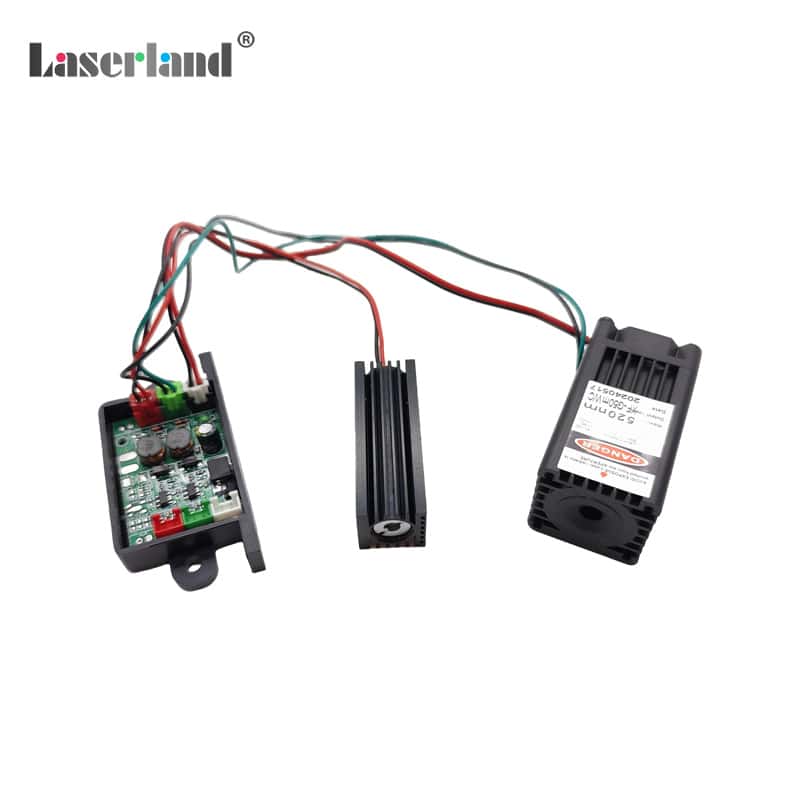

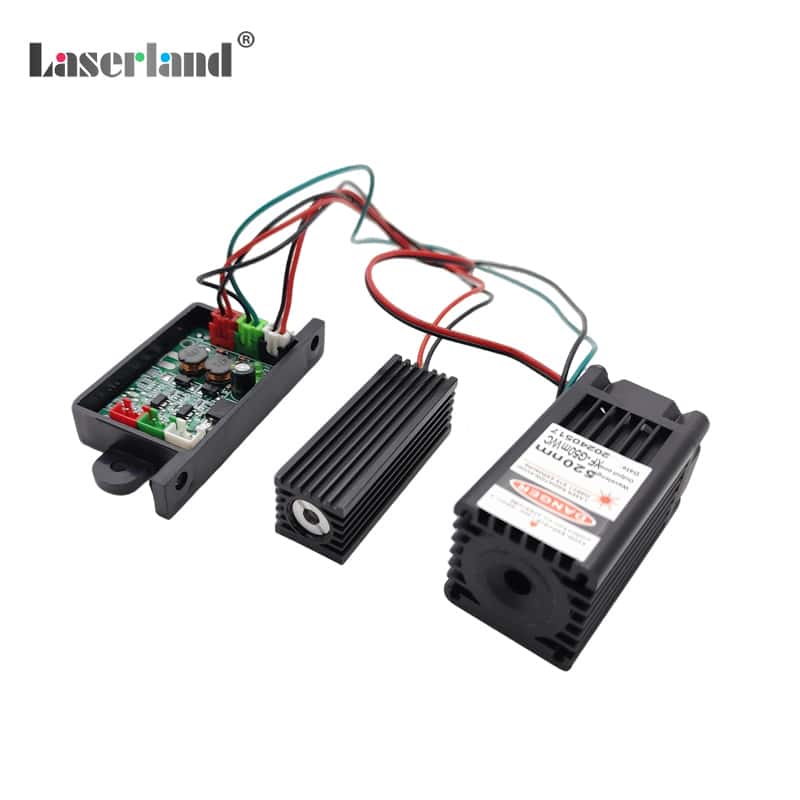

650nm 150mW Red + 515nm 50mW Green Laser Module TTL 12V Stage Lighting TEM
650nm 150mW Red + 515nm 50mW Green Laser Module TTL 12V Stage Lighting TEM
$20.39
6 in stock
6 in stock
SKU: 11051101
Categories: 520nm Laser Module, Laser Modules
Description
650nm 150mW Red + 515nm 50mW Green Laser Module TTL 12V Stage Lighting TEM
Specification
wavelength: 515nm 50mw. 650nm 150mw
laser mode: green laser TEM00
red laser TEM01
laser beam output at the beginning: both <1.5mm
degree: <1.5mrad
TEMP. control: yes
working temperature: 12-32 centigrade
TTL: 0-20khz DC5V
working voltage: 12vdc/ac
stability: +- 5%
working mode: CW
size: green: 30x30x38mm
red: 18x18x50mm
mount hole for green: 22mm and 40mm
mount hole for red: 25mm
driver: 36x72mm
mount hole: 60mm
