405nm 445nm 450nm 520nm 638nm High Power Laser Diode Driver Board with TTL/PWM with Fan
The circuit board is a precision component. After receiving the package, it supports 7 days without reason to return the product without opening the original package. After the original package is opened, no return is provided. After sale, please consider whether you have the ability to install it manually before purchasing. Do not purchase if you do not have the ability to install! Our company does not provide trial play/trial loan/trial service. Thank you for understanding!

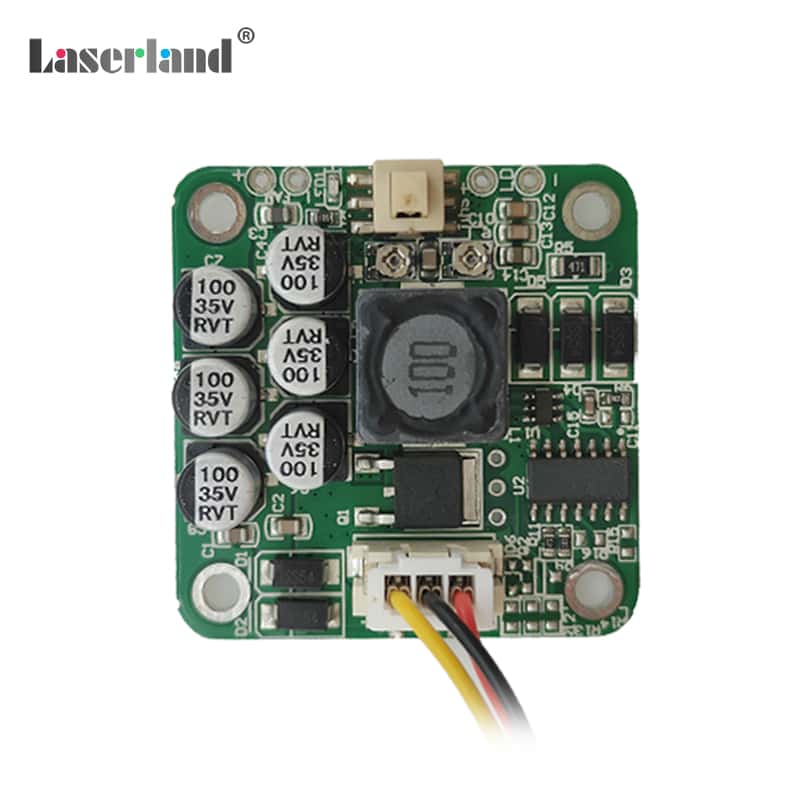

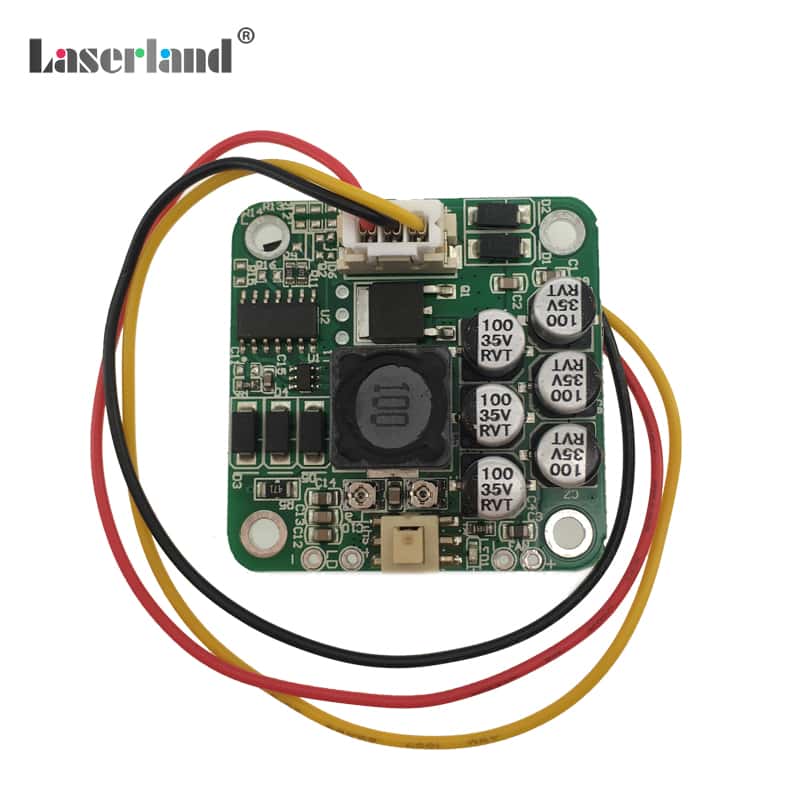

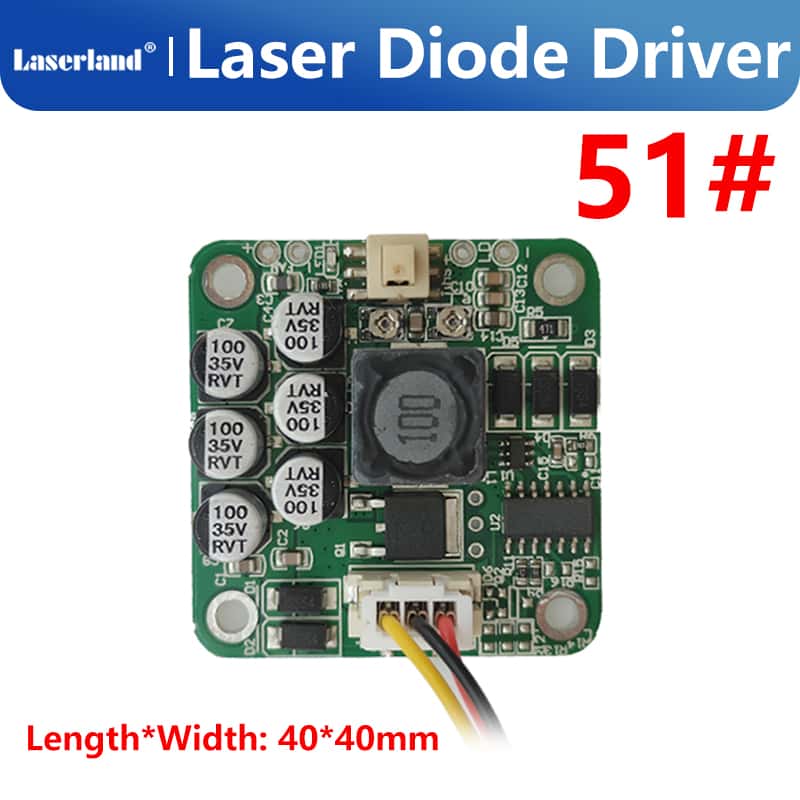

High Power Laser Driver Board
Input voltage: 12V
Output: 6V 5A

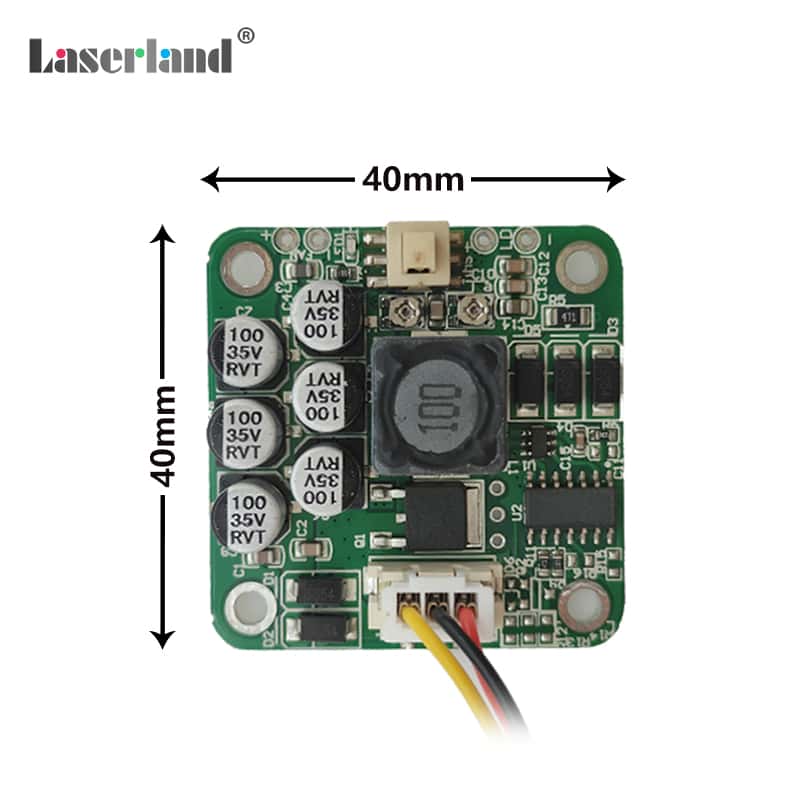

Specification: 40mm * 40mm * 11mm

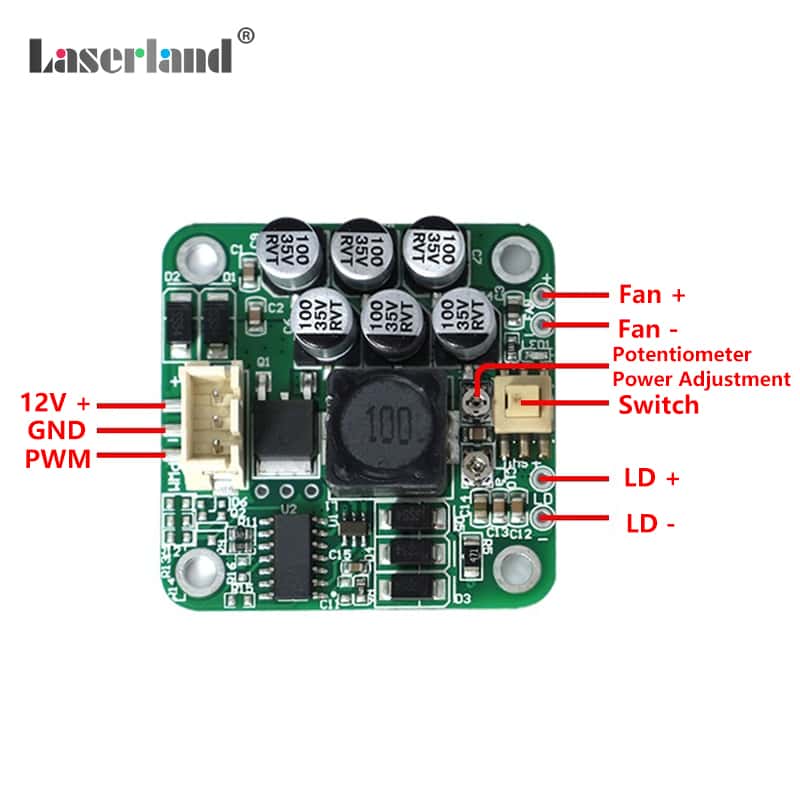

Control Mode: PWM/TTL
Application: 200mW-5000mW
405nm
445nm
450nm
520nm
638nm
Equipped with FAN interface to drive high speed fans.
Super strong air cooling for continuous operation for 24 hours.
Note: The laser diode needs to have good heat dissipation to ensure the normal operation, and the circuit will automatically control the light output power of the laser diode.
