Description

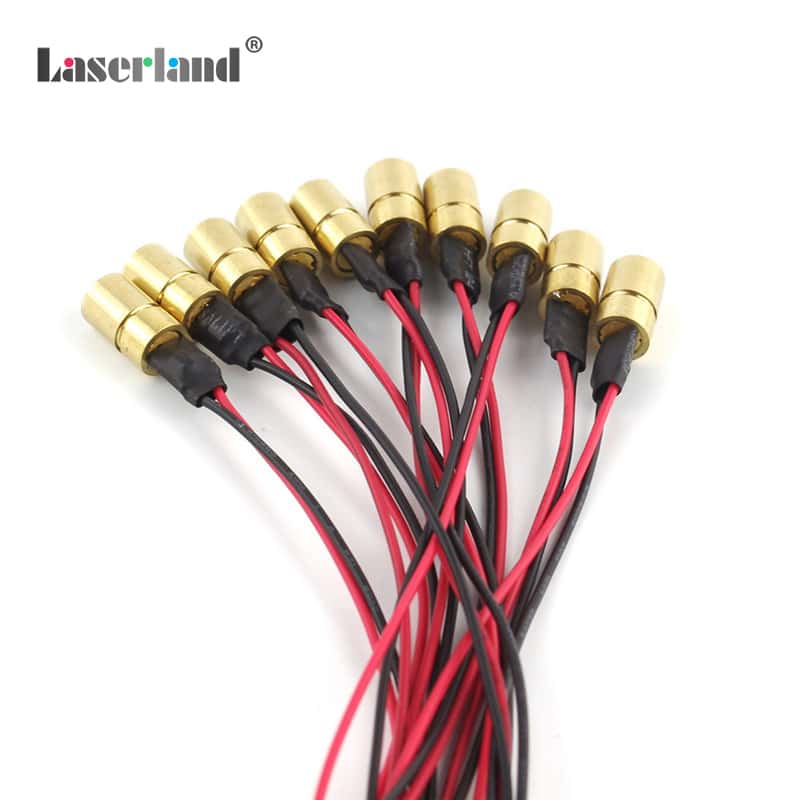

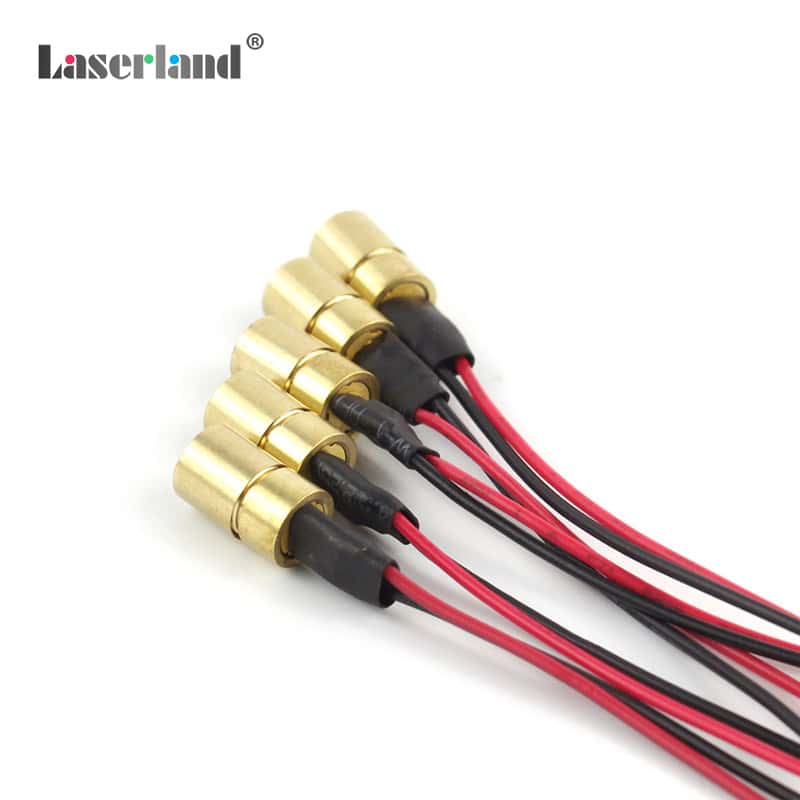

10pcs 8*13mm 5mW 650nm Red Dot Focusable Laser Module 3VDC

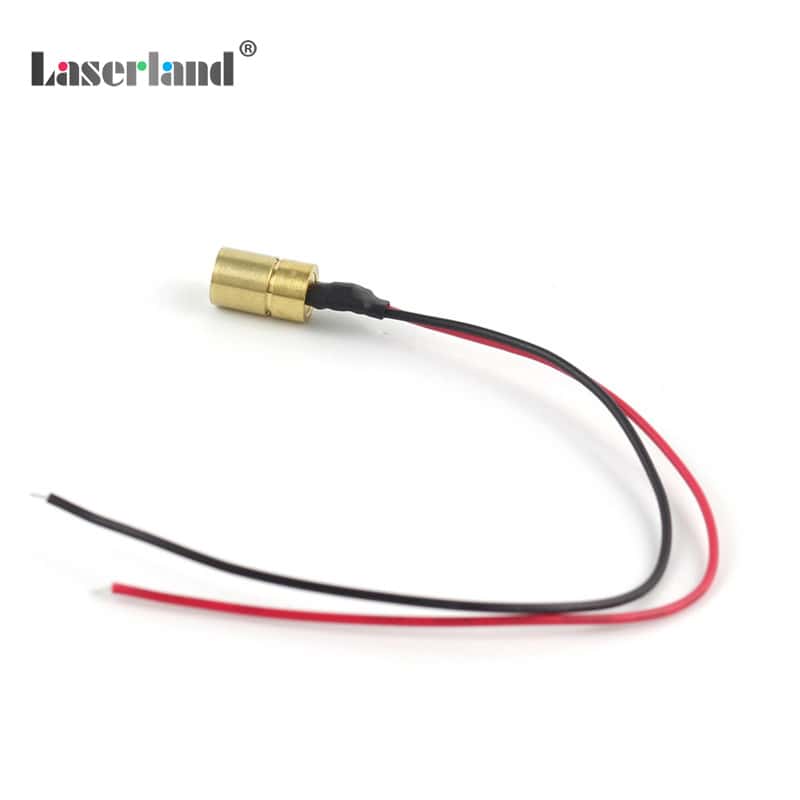

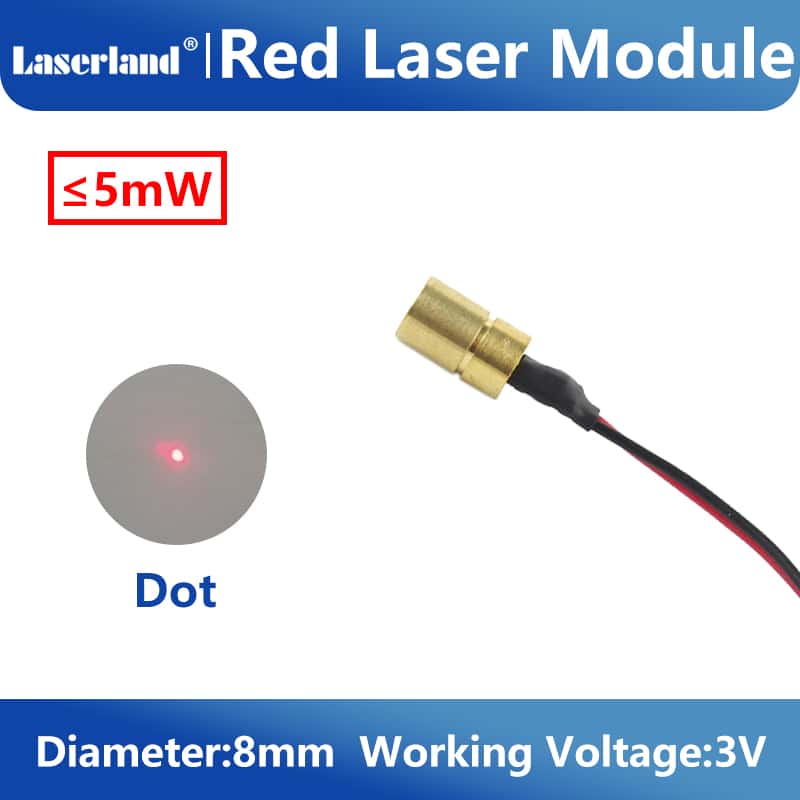

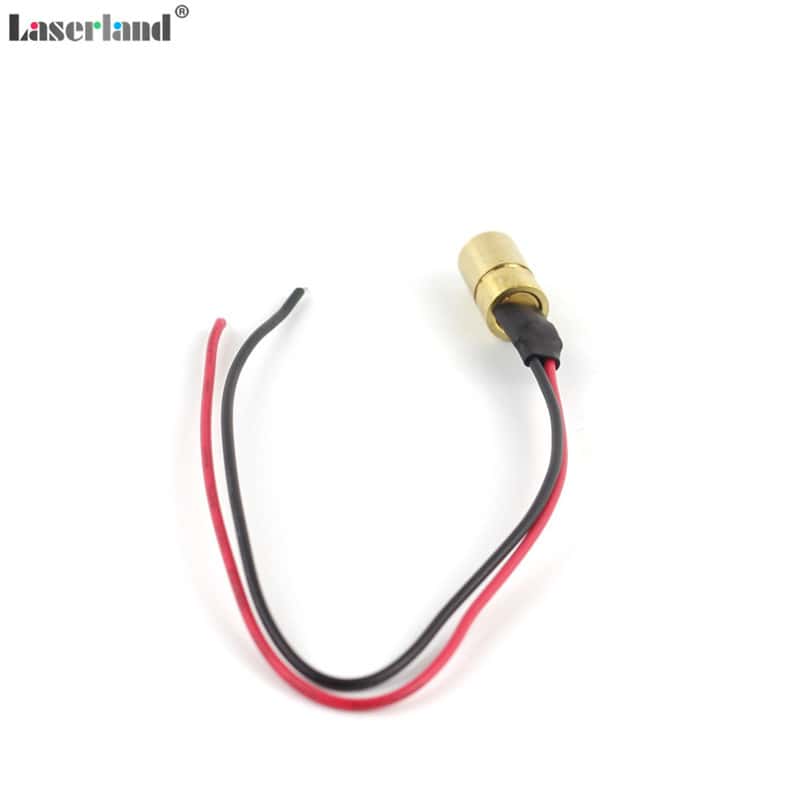

Mini 3VDC 650nm Red Laser DOT Module
This 650nm laser module with driver is an industrial electronic component and used for as Industrial testament, Lab, DIY. Not a handheld laser.
It is very small size can save a lot of space on your laser equipment. The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or test.
this laser is the key component for laser hair loss treatment
Specification
Model 650MD-1-0813
Output Power：5mW
Wavelength 650nm
Working Voltage 3VDC
Working Current <40mA
Laser Shape dot
Material and Color all metal
Red wire power “+”
Black wire : power “-”

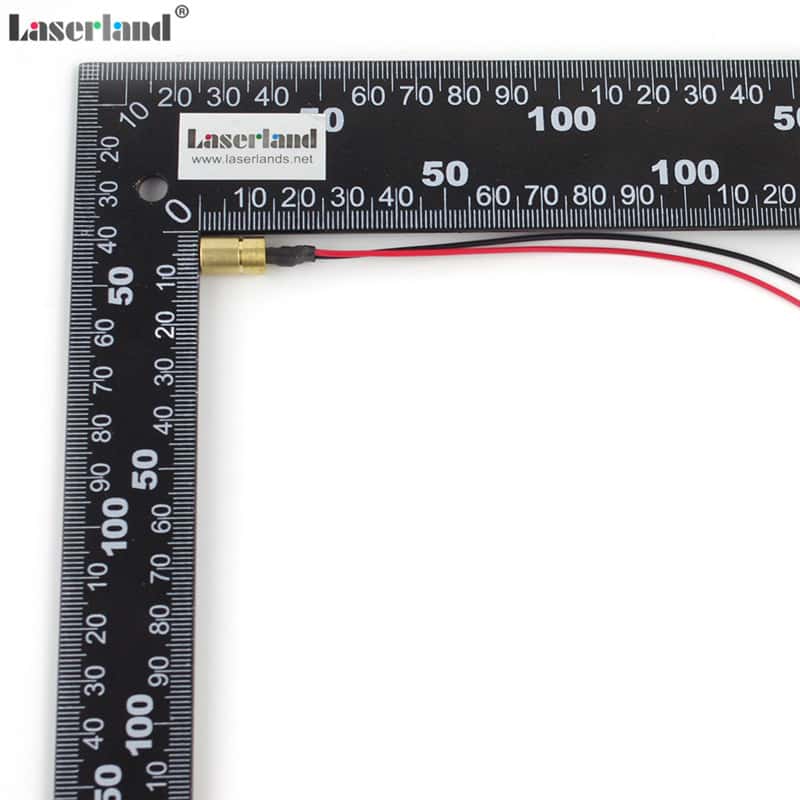

Dimensions 8*13mm(brass house length)
