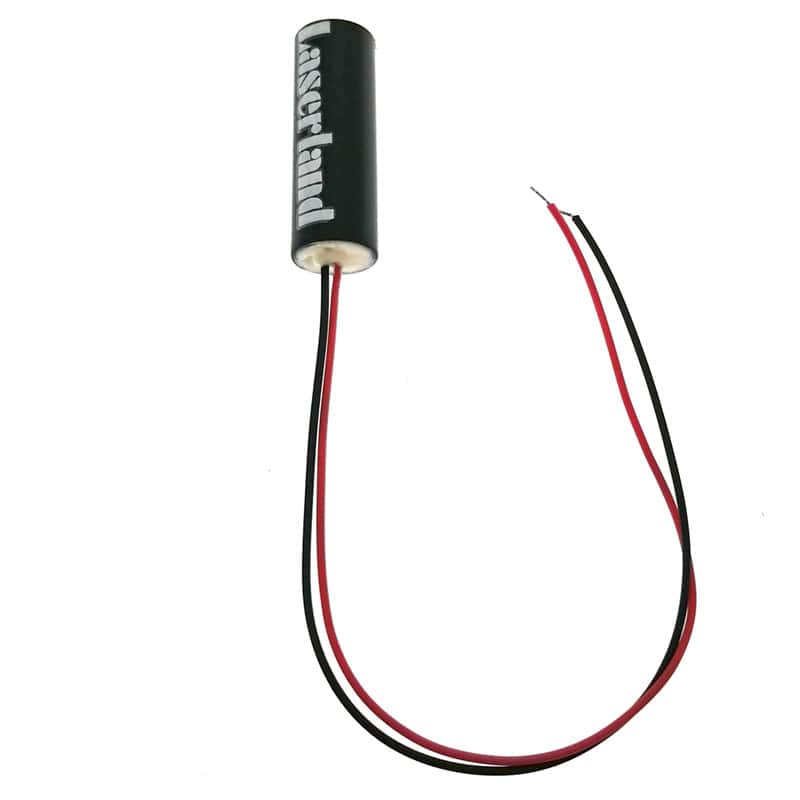

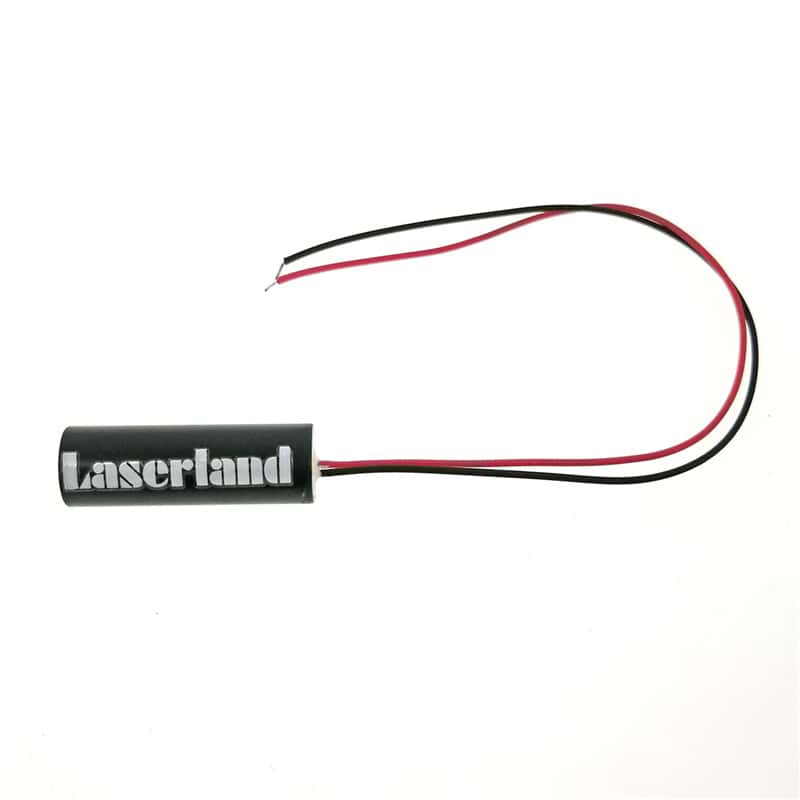

10*30mm 808nm 10mW 100mW Dot Laser Module DC 3V
10*30mm 808nm 10mW 100mW Dot Laser Module DC 3V
Price range: $13.80 through $16.80
Similar at ~808nm
- 16mm 650nm 5mW 5V Line
- 14.5*48mm 650nm 5mW 5V Red Dot Laser Module
- 6*10 980nm 5mw-8mw IR Infrared Laser Diode Module CS Game Aiming Scope Use
- 532nm Non Adjustable Focus Green Generator Line Module for Halloween Scary House Laser Swamp Laser Pond Haunted House Garden Yard Decoration
Compatible accessories
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
- Polarizing Beam Splitter Refractor Optical Elements Cube 400-700nm Visible Light Triangular Prism
- Glass IR Filter Lens High transmittance 520-700nm Laser HB600
- 5pcs Laser Filter Blue Green Red 400nm-750nm blocked Infrared IR 700-1100nm pass through
Related categories
- 808nm Laser Module (8)
- Laser Modules (183)
- DOE Grating Laser Module (13)
- 405nm Laser Module (12)
- 450nm Laser Module (21)
- 488nm Laser Module (3)
- 520nm Laser Module (47)
- 532nm Laser Module (21)
- 638nm Laser Module (17)
- 660nm Laser Module (52)
- 780nm Laser Module (5)
- 830nm Laser Module (1)
Description
10*30mm 808nm 10mW 100mW Dot Laser Module DC 3V
Specifications
Size: φ 10 × 30mm(we have other size, contact us for it.)
Material: Copper
Surface Treatment / Color: Copper
Life: continuous output and life> 5,000 hours
Output wavelength: 808nm / ± 5nm
Output power: 10mw /100mW
Range: 200M
Spot shape / Diameter:Oblong spot
Circuit control: APC circuit
Operating Voltage: DC 3V
Working Current: <80mA
Conductor: 150MM red and black electronic circuit
Working temperature: -10°C ~ +60 °C
Storage temperature: -20 °C ~ +60 °C
Application module:
1 can be used for sight with positioning.
2 can be used for laser testing tools.
3 can be used to locate concentricity.
4 can be used to locate medical equipment, beauty.
5 can be used to produce a signal device.
