Parameter

Driver 1# :Dual output TTL dual control (Product Number:16040022)

-Input voltage: 12VDC

-Output voltage:7.5VDC

-Output current: <600mA

-TTL 0-20khz 0-5VDC



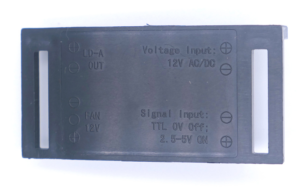

Driver 2#:405nm/450nm Blue Light(Product Number:16040004)

-Working voltage: 12v.
-Working Current <1.2A
-TTL:0V OFF, 5V ON
-DO NOT connect it directly to laser diode working with 1.8v-1.9v. Please adjust the implementation in blue color on it and turn down the output voltage before you connect it directly to your diode. and control the input current to fit your diode.
Red wire for + pole, black wire for – pole. Blue and white wires for TTL. if you do not need TTL, please ignore it

-Model:DRIVER-50mw-1000mw-450nm-BL

-Wavelength:445nm 450nm

-Dimensions:36mmx73mmx20mm
-Package:1X driver



Driver 3#:635/650/780/808/980nm Constant Current Drive  TTL(Product Number:16040009)

-Constant current driver board N H type pin 80-430mA

-Suitable for 635nm 660nm 808nm 980nm laser diode

-Operating voltage: 4.0-5.0VDC

-Constant power or TTL modulated signal output TTL 0-15K

-Size: 10mm*20mm



Driver 4#:635nm/638nm Orange Light(Product Number:16040005)

-Suitable for 50mw-500mW 635nm 638nm laser diode. it is the driver on our red/orange laser modules

-Working voltage: 12v.

-Working Current: < 1.2A

-TTL:0V OFF, 5V ON

-DO NOT connect it directly  to laser diode working with 1.8v-1.9v. Please adjust the implementation  in blue color on it and turn down the output voltage before you connect  it directly to your diode. and control the input current to fit your diode.

-Size:35mm*18mm



Driver 5#:Blue Light  1W(Product Number:16040044)

-Size:44mm*34mm

-1PC 1W 445nm Laser Diode LD Driver Power Supply with TTL 12vdc



Driver 6#:445nm Blue Light 5A Big Current 3.5-4.5W(Product Number:16040053)

– Size:50.5mm*32mm*230mm

– 12V step-down constant current drive circuit board, suitable for 5A current, 3.5-4.5W, 445nm blue laser, TTL modulation.



Driver 7#:Blue light  1W-2W(Product Number:16040030)

-Driver/power supply for laser diode/ld 445nm/450nm 1-2w

-Input voltage: 8-14vdc, 12vdc recommended

-TTL: 0-20khz

-Size: 32*47mm



Driver 8#:Blue Green Light(Product Number:16040014)

– Size:65mm*48.5mm*30.6mm



Driver 9#:635nm/650nm/780nm N-Type Position (Product Number:16040100)

Install the laser diode on the PCB and solder the three pins. Connect the positive and negative poles on the PCB to 3-5V DC, and VCC is the positive pole.

-Current 70mA

-Input voltage 2.7-5.0V

-Use the potentiometer to adjust the output power of the laser diode. If the diode can only withstand low current, you must first adjust the potentiometer to the minimum current and then adjust the diode to the required output power.

-Note: The laser diode needs to have good heat dissipation to ensure the normal operation, and the circuit will automatically control the light output power of the laser diode.



Driver 10#:635nm/650nm/780nm M-Type Position(Product Number:16040101)

-Application:RLD65MPT3 ,RLD65MPT4 T5 T7
650nm 5mw 10mw 20mw ,780nm 5mw 10mw 20mw,850nm 5mw 10mw 20mw

M type Laser Diode  850nm 5mw 10mw 20mw

-Size: 6*13mm



Driver 11#:Red Light Drive board suits LD- Outer case(Product Number:16040102)

-Size:9*16mm
-Input voltage  :3-5V
-Output current  :0-200mA
-With operational amplifier



Driver 12#:405nm Purple Light(Product Number:16040103)

-Size:9mm*17mm

-ACC Constant current control

-Input voltage:3-4.2V

-Output current:<150ma

-K pin



Driver 13#:658nm/660nm Red Light(Product Number:16040104)

-Circuit control: Buck circuit, constant current, to ensure stable output after 5.8-12V power supply
-Dimensions: 10.3*22mm*6.1mm (width*length*height) (PCB thickness 1.0mm, total height 6.1mm)
-Output current: default 280mA ( If output current is 2A, 1R0 resistance needs to be reduced)
-Reverse connection protection: because the input terminal is protected, the reverse connection is not energized.
-Pin definition: The pad is specially designed for the 658nm driver board. You only need to arrange the pins in a triangle and solder them naturally.
-Application: Mainly used for high-end laser tube drivers with 12V input, such as 12V car laser lights, optical instruments, etc.



Driver 14#:445/520nm Blue Light 1W/1.6W/3W(Product Number:16040105)

-Circuit control: Buck circuit, constant current, to ensure stable output after 5.8-12V power supply
-Dimensions: 10.2*22mm (width * length)
-Reverse connection protection: unique reverse connection protection design, no need to worry about burning the battery
-Pin definition: The pad is specially designed for the 658nm driver board. You only need to arrange the pins in a triangle and solder them naturally.

-Note: In order to ensure safety, it is recommended to use two imported 3.7V lithium cell with protective plates (16340, 18650, 14500 and 18500 power supply). Do not use bad batteries because of the internal resistance and discharge performance of the double lithium battery. The requirements are high, and the use of more than two sections of cylindrical lithium batteries without protective plates is particularly prohibited. If there are three cells, one of them has large internal resistance, fast discharge, and overdischarge, all the step-down chips start working at 5.8-6V.Even if there is undervoltage protection, it will not help. The circuit is out of control, which will directly cause a short circuit. It can produce explosions, and the power of steel shell batteries is very large. Of course, the percentage of this possibility is not large, but as long as it happens, the consequences will be disastrous!



Driver 15&16#:638nm Orange Light(Product Number:16040106&16040107)

-Circuit control: external MOS, constant current output
-Power regulation: Remove the 1206 package resistor on the board to reduce the output current.
-Size: 10*20*1.0mm (width*length*thickness)
-Reverse connection protection: unique reverse connection protection design.
-Pin definition: The pads are specially designed for 300-500mW 638nm pins. You only need to arrange the pins in a triangle and solder them naturally . It can also be used for driving 808nm and 660nm laser diode.
Battery: It is recommended to use 3.7V lithium battery (16340, 18650, 14500 and 18500 power supply), or directly use 5V DC power supply.
Note: If you are driving a 300mW 638nm diode, you only need to remove the R030 resistor. If you are driving a 500mW diode, you only need to remove the two R100 resistors.



Driver 17#:780/808nm/100-200mW Red Green(Product Number:16040108)

-It is suitable for driving 100mW-200mW high-power red and green laser diode, as well as for 780nm 808nm.

-Circuit control: constant current.

-Size : 10*19mm (width * length)



Driver 18#: RGB Combined White Light/520nm450nm638nm(Product Number:16040109)

-Circuit control: step-down circuit, constant current
-Modulation : TTL
-Printing instructions: R – red light, G – green light, B – blue light
-Recommended power: red 150mW; green 250mW; blue 200mW
-Dimensions: 42*63.5mm (width * length), the height :22mm(including the board )
-Input voltage: 12V
-Fan voltage: 12V



Driver 19#:Circular Circuit Board 450nm/2W/1.5A-1.8A(Product Number:16040029)

– Suit for 450nm Laser Diode

– Output Voltage: 2W

– Output Current:1.5A-1.8A
